3. START: Laser emission button, it’s a button with an annular LED indicator (red color).
The product is ready to emit laser and the red light turned off, when this button is pressed down.
Press again will release the button, and disable the laser emission.
4. LASER: Laser emission indicator, which illumines when laser emission is enabled.
5. ALARM: Alarm indicator, indicates an error condition, when the yellow LED
illumines.
6. EMERGENCY STOP: Press it down to stop the laser immediately. Turn it clockwise
to release, but the laser cannot start before it’s powered on with key switch for a second time.
4.2 Rear Panel
Figure 12 shows the rear panel of RFL-C1500S/C2000S (take RFL-C2000S for example,
RFL-C1500S has the same rear panel):

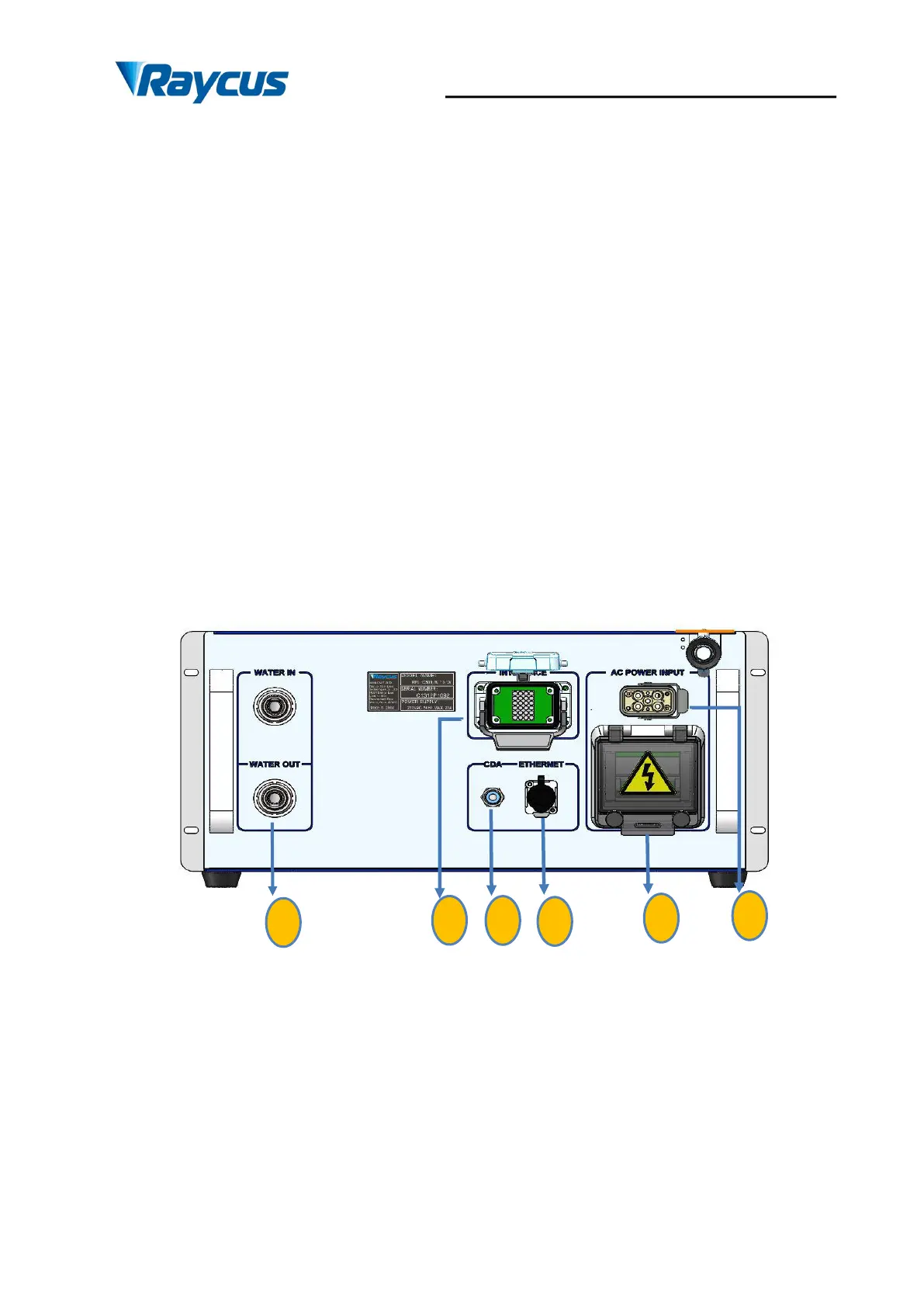

Figure 5 Rear Panel View of RFL-C1500X/C2000X
1. AC INPUT: The socket for supply source input that can only be mated with the plug on
the power cord we provided.
2. POWER: Air switch to control the switching of AC.
