User Guide of RFL-C20000TZ
3 Installation
3.1 Dimensions

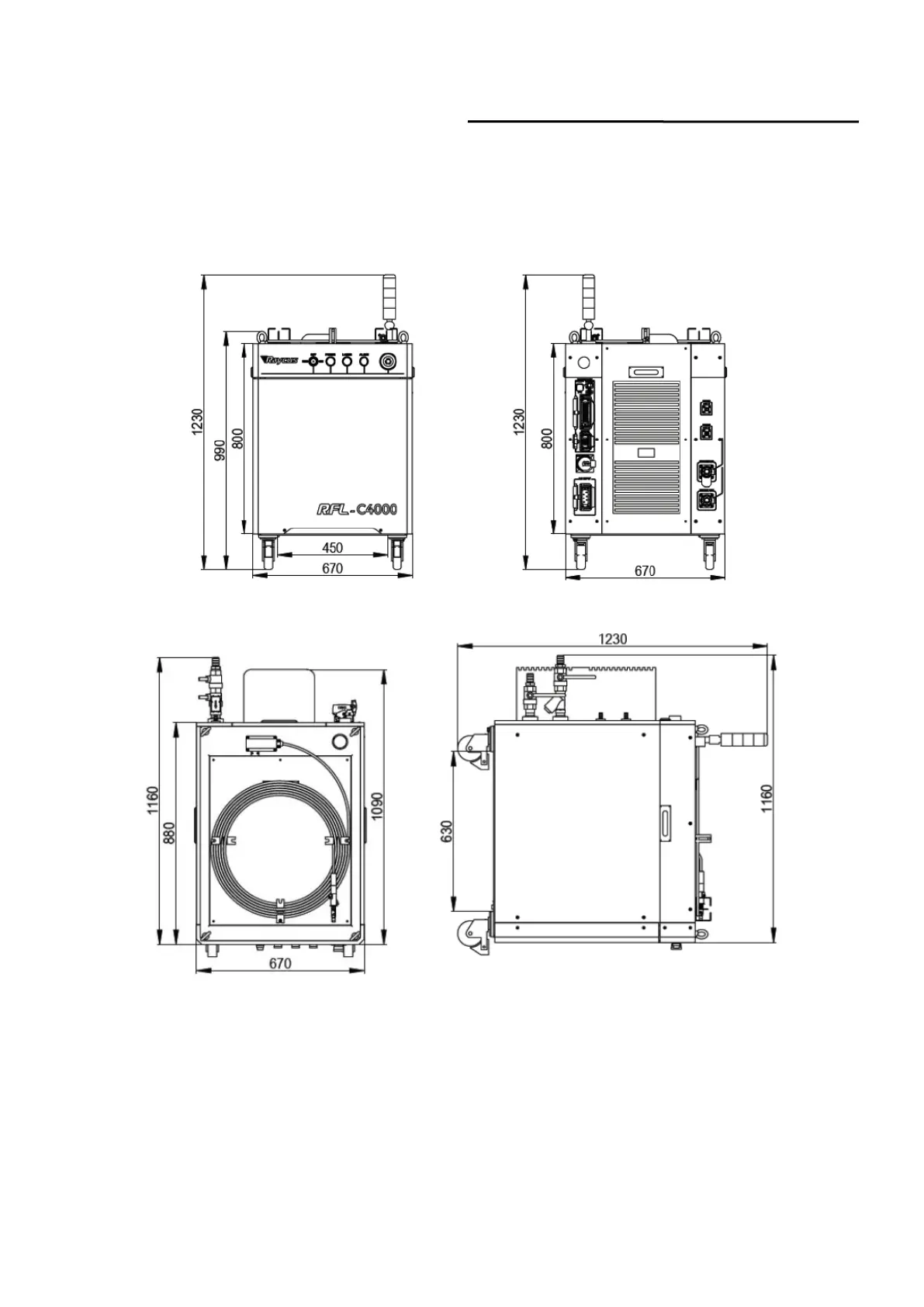

The main body dimensions of RFL-C4000XZ continuous fiber laser are shown in Figure 2(a).
(a.1) Front view (a.2) Rear view
(a.3) Top view (a.4) Left view
(a) The dimensions of RFL-C4000XZ continuous fiber laser
The structure size of RFL-C4000XZ laser is 670mm×990mm×1160mm (width×height×depth;
including casters and rings, without warning light); RFL-C4000XZ laser weighs less than 280kg.
The main body dimensions of RFL-C6000XZ /C8000XZ continuous fiber laser are shown in Figure
2(b) (Take RFL-C8000XZ as an example).
