Chapter 5: Using the Fishfinder 99

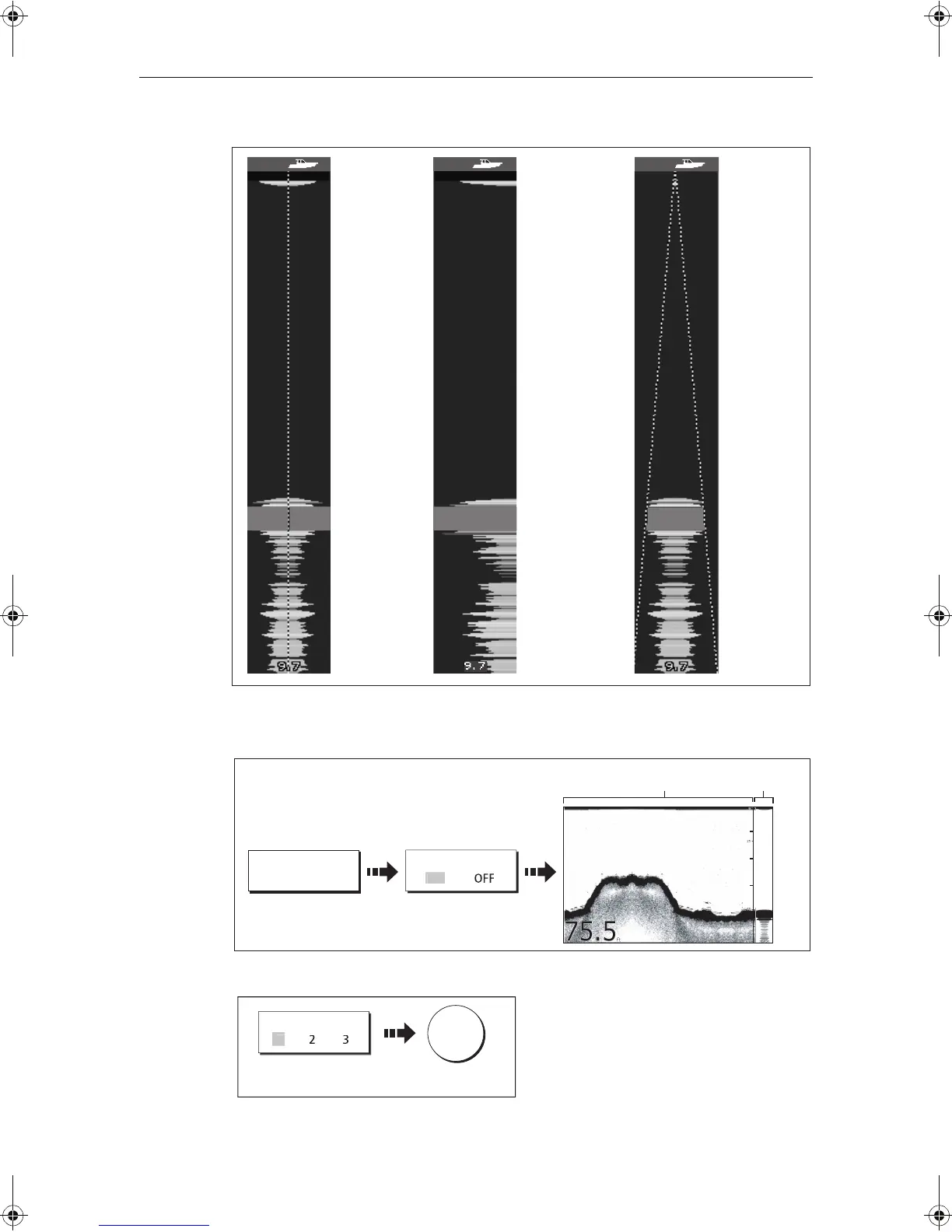

There are three A-Scope modes which are selected for individual fishfinder windows:
I
To display the A-Scope image:
1. Select the A-Scope option:
2. Select the required A-Scope mode:
Note:
Selecting A-Scope automatically switches OFF Bottom Lock and Zoom.
D6674-3
MODE 1
The A-scope
image is centred
in the window.
MODE 2
The left-hand side
of the Mode 1
image is expanded
to give a more
detailed view.
MODE 3
The A-scope
image angles
outward as
signal width
increases with
depth.
D6675-2
A-SCOPE...
A-SCOPE
N
Toggle to ON
0
20
30
40
50
Standard fishfinder image
A-scope
OK
A-SCOPE MODE
D8439_1
Toggle to required
mode
81221_4.book Page 99 Tuesday, February 28, 2006 5:24 PM
