Raymarine E-Series Brochure

15
A
C
D
B
E
New e Series Multifunction Displays
E62354 e77"MFDdisplay(noCharts)
E62355 e7D7"MFDdisplaywithsonar(noCharts)
T70000 e77"MFDdisplay(USCoastalCharts)
T70001 e77"MFDdisplay(EuropeCharts)
T70002 e77"MFDdisplay(RestofWorldCharts)
T70005 e7D7"MFDdisplay(USCoastalCharts)
T70006 e7D7"MFDdisplaywithsonar(Europe
Charts)
T70007 e7D7"displaywithsonar(RestofWorld
Charts)
E70021 e959"MFDdisplay(noCharts)
E70022 e979"MFDdisplaywithsonar(noCharts)
T70040 e959"MFDdisplay(USCoastalCharts)
T70041 e979"MFDdisplaywithsonar(USCoastal
Charts)
T70042 e959"MFDdisplay(EuropeCharts)
T70044 e959"MFDdisplay(RestofWorldCharts)
T70043 e979"MFDdisplaywithsonar–Navionics
ready-to-navigatecartography(EU)
T70045 e979"MFDdisplaywithsonar(Europe
Charts)
E70023 e12512.1"MFDdisplay(noCharts)
E70024 e12712.1"MFDdisplaywithsonar(no
Charts)
T70050 e12512.1"MFDdisplay(USCoastalCharts)
T70051 e127 12.1" MFD display with Sonar
(USCoastalCharts)
T70052 e12512.1"MFDdisplay(EuropeCharts)
T70054 e12512.1"MFDdisplay(RestofWorld
Charts)
T70053 e127 12.1" MFD display with sonar –
(EuropeCharts)
T70055 e12712.1"MFDdisplaywithsonar(Restof
World Charts)
E62351 RCU-3 Remote control
Refit/Upgrade Bezels
R70008
  C90W/E90WEasy-FitUpgradeBezel
R70009  C120W/E120WEasy-FitUpgradeBezel
R70010  C80/E80ClassicEasy-FitUpgrade
Bezel
R70011  C120/E120ClassicEasy-FitUpgradeBezel
MULTIFUNCTION DISPLAYS
New c Series Multifunction Displays
E70012 c97(9.0")MFDdisplaywithSonar(noCharts)
T70021 c97(9.0")MFDdisplaywithSonar
(USCoastalCharts)
T70023 c97(9.0")MFDdisplaywithSonar(Europe
Coastal Charts)
T70025 c97(9.0")MFDdisplaywithSonar(Restof
World Charts)
T70027 c97(9.0")MFDdisplaywithSonar(USInland
Lakes and Rivers Charts)
E70014 c127(12.1")MFDdisplaywithSonar(no
Charts)
T70031 c127(12.1")MFDdisplaywithSonar
(USCoastalCharts)
T70033 c127(12.1")MFDdisplaywithSonar(Europe
Coastal Charts)
T70035 c127(12.1")MFDdisplaywithSonar(Restof
World Charts)
T70037 c127(12.1")MFDdisplaywithSonar
(USInlandLakesandRiversCharts)
E70011 c95(9.0")MFDdisplay(noCharts)
T70020 c95(9.0")MFDdisplay(USACoastalCharts)
T70022 c95(9.0")MFDdisplay(EuropeCoastalCharts)
T70024 c95(9.0")MFDdisplay(RestofWorldCharts)
T70026 c95(9.0")MFDdisplay(USAInlandLakesand
Rivers Charts)
E70013 c125(12.1")MFDdisplay(noCharts)
T70030 c125(12.1")MFDdisplay(USCoastalCharts)
T70032 c125(12.1")MFDdisplay(Europe
Coastal Charts)
T70034 c125(12.1")MFDdisplay(Restof
World Charts)
T70036 c125(12.1")MFDdisplay(USInlandLakesand
Rivers Charts)
Nominal voltage:
c95/c97/c125/c127/e95/e97/e125/e127:12/24vDC
e7/e7D:13.8vDC
Operating voltage range:
c95/c97/c125/c127/e95/e97/e125/e127:10.8–31.2vDC
e7/e7D:10.2–15.6vDC
Power consumption (at full brightness):
c95/c97/e95/e97:16Wmaximum
c125/c127/e125/e127:36Wmaximum
e7/e7D:10.2:
13.2W
Display:
e7/e7D:7"TFTbacklitLED
c95/c97/e95/e97:9"TFTbacklitLED
c125/c127/e125/e127:12.1"TFTbacklitLED
c95/c97/e7/e7D/e95/e97:(800x480pixels)
c125/c127/e125/e127(1280x800pixels)
Viewing angles:
e7/e7D:70ºleft/rightand70º/50ºtop/bottom
c95/c97/c125/c127/e95/e97/e125/e127:80ºleft/rightand
80º/60ºtop/bottom
Weight:
e7:1.465kg(3.23lb);e7D:1.550kg(3.42lb)
c95/e95:2.165kg(4.77lb)
c97/e97:2.265kg(4.99lb)
c125/e125:3.320kg(7.32lb)
c127/e127:3.450kg(7.6lb)
Networking:
up to six displays plus sensors
Mounting options:
Surface mount. Trunnion mount with optional bracket.
Cartography:
Worldwide base map for non cartography variants.
Navionics ready-to-navigate in all other variants
(upgradabletoNavionicsGoldorPlatinumPlus).
NEW c/e SERIES SPECIFICATIONS NEW c and e SERIES PART NUMBERS

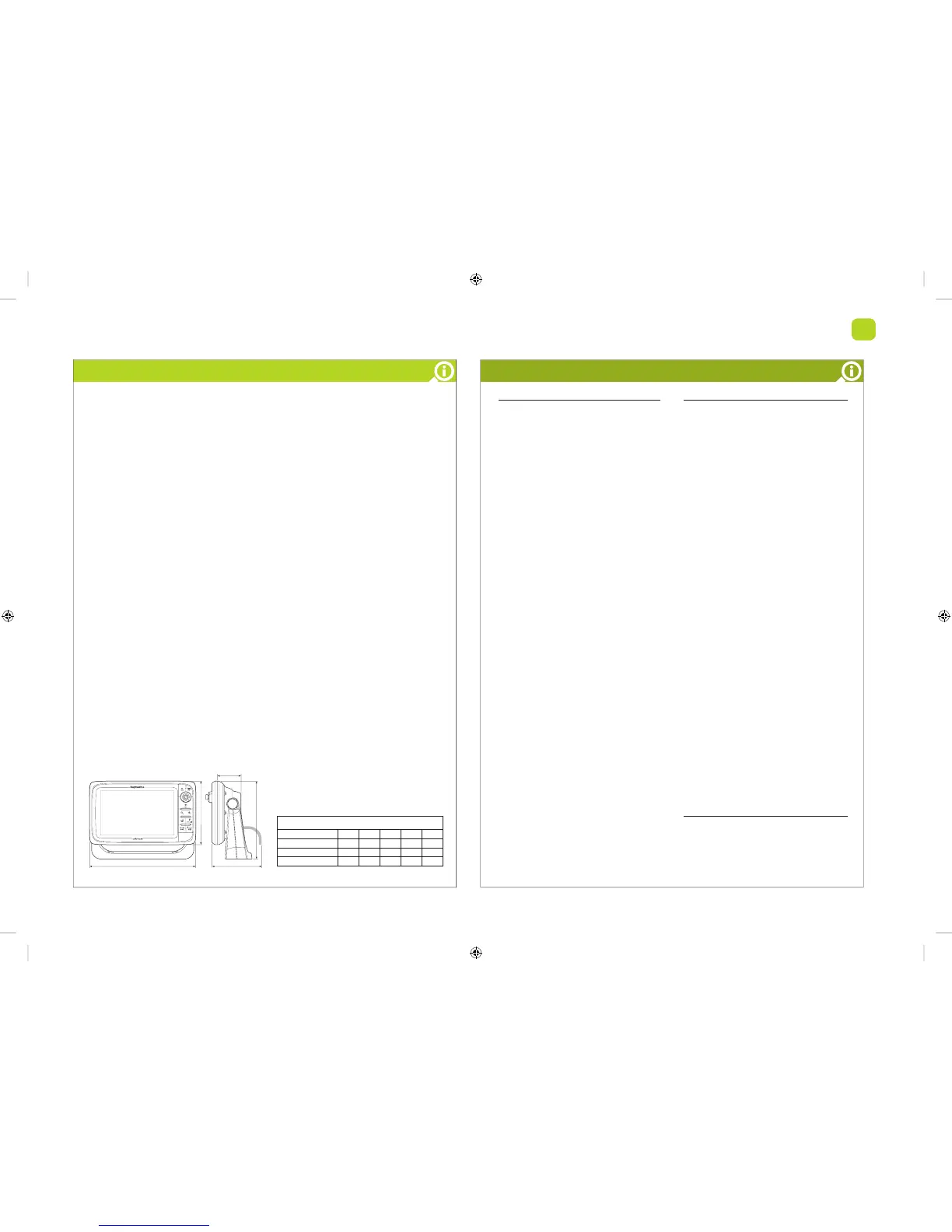

Dimensions (mm)
ABCD E
e7/e7D 226 145 64 160 180
c/95/c97/e95/e97 290 173 64 160 212
c125/c127/e125/e127 354 222 69 160 256
Note: Specifications subject to change
GPS:
Built-in50channels;WAAS,EGNOSandMSAS.
1secondhotstart;36secondsupwardscoldstart;
Automaticsignalacquisitionandalmanacupdate;
Operatingfrequency:1575.42MHz;GeodeticDatum:WGS-
84,alternativesavailablethroughRaymarinedisplays;Ac-
tiveJammingReduction;CeramicChipantenna;Accuracy:
withoutSBAS<15m95%ofthetime.WithWAAS/EGNOS
<5m95%ofthetime.
Operation temp range:
-25ºto55ºC(13ºto131ºF)
SeaTalk
hs
(Network) Connectivity:
e7/e7D:1xSeaTalk
hs
port.100Mbits/s.RayNettype
c95/c97/e95/e97/c125/c127/e125/e127:2xSeaTalk
hs
ports.
100Mbits/s.RayNettype.
SeaTalk
ng
Connectivity:
1x SeaTalk
ng
connection
NMEA
Connectivity:
2xNMEA0183ports:NMEAport1inputandoutput
(4800/9600/38,400baud).NMEAport2inputonly
(4800/9600/38,400baud)
Wireless
Connectivity:
WiFi:802.11b/g;Bluetooth:AVRCP2.1+EDRpowerclass
1.5.
Video:
Alldisplayshavex1BNC(female)compositevideoinput
connector(PAL/NTSCformats).
e95/e97/e125/e127displayshaveasecondBNCinputplus
x1VGAoutputviaaccessorycable(soldseparately).
Sonar:
ClearPulsewith50/83/200kHzoperatingfrequenciesup
to600WRMS.Sonartransducerport(c97/e97/c127/e127
versions only).
Note: All specifications are preliminary and subject to change without
prior notice.
Note: Charts indicated in new c and e Series above part number listings is Navionics Ready-to-Navigate cartography.
