Raymarine G-Series Installation Instructions

3
Check pack items
Wireless base station
Plan wireless keyboard system

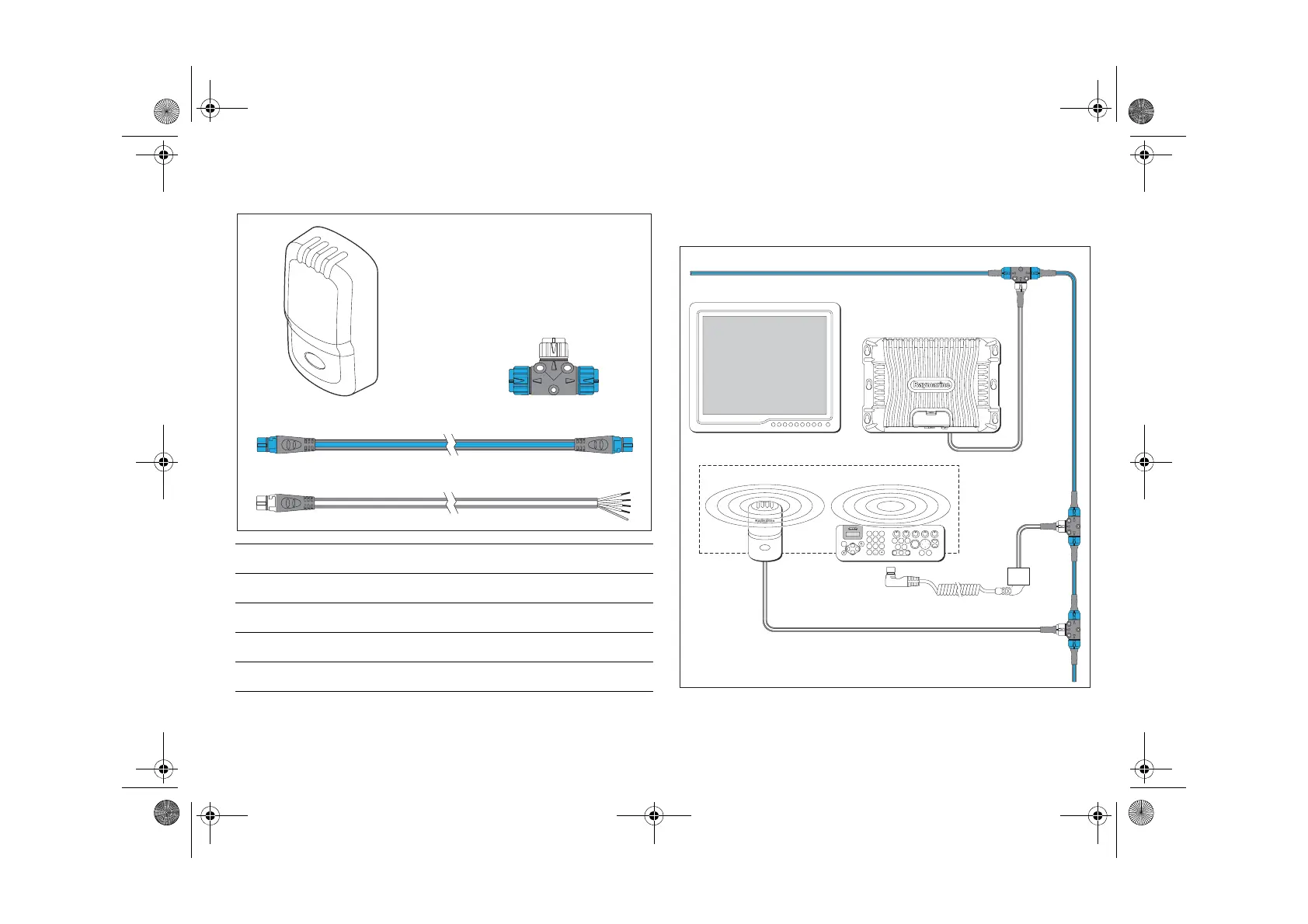

Typical system layout
The base station and wireless keyboard are installed as a part of the
Raymarine G-Series system.
Description Part No.
Wireless base station E02045
1 m (3.3 ft) SeaTalk NG spur cable - stripped ends A06043
400 mm (15.75 in) SeaTalk
ng
backbone cable A06033
SeaTalk NG T-connector A06028
SeaTalk
ng
backbone cable
SeaTalk
ng
spur cable
SeaTalk T connector
D10067-2
SeaTalk
ng
wireless basestation
Monitor
Keyboard
SeaTalk
ng
backbone
SeaTalk
ng
spur
SeaTalk
ng
bulkead mounting
cable
SeaTalk
ng
spur
GPM400
D10069-2
SeaTalk
ng
charge cable
Basestation
Charge
point
9
WXYZ
8
TUV
7
PQRS
4
GHI
5
JKL
6
MNO
ACTIVE
WPTS
MOB
DATA
MENU
PAGE
.
0
2
ABC
3
DEF
1
CANCEL
STANDBY
DODGE PILOT OK
R
A
N
G
E
O
U
T
IN
ENTER
