4 ST7002 SmartPilot Controller Operating Guide
What does the display tell me?
The SmartPilot display screen provides the following information:
The bar graph at the bottom of the screen indicates the current position of the
rudder, as measured by the rudder position sensor.

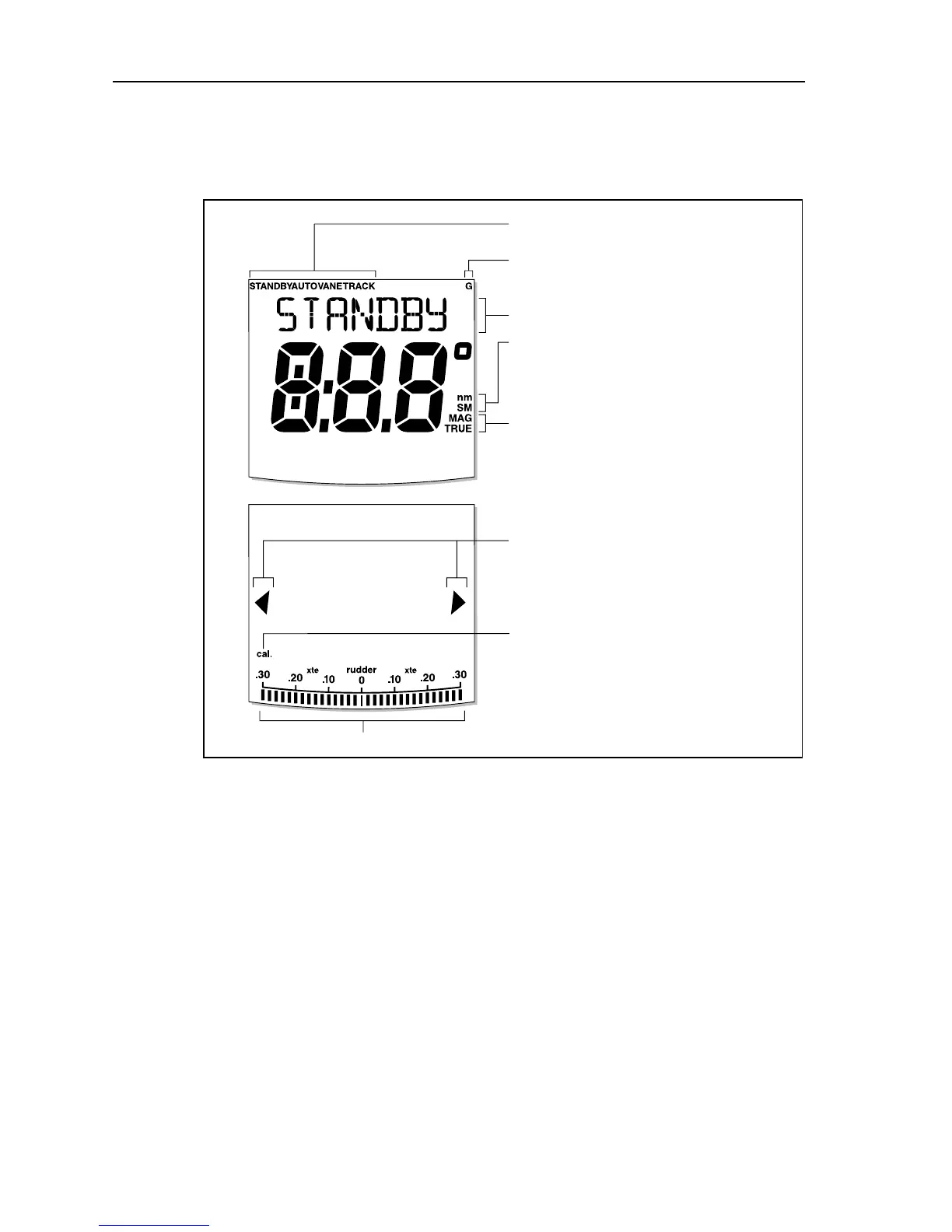

Autopilot mode indicators
Rudder position indicator
GyroPlus indicator (appears if a
yaw sensor is connected to the autopilot)
Variable text area (up to 9 characters)
Port and Starboard
direction-to-steer
indicators
Heading indicators
Calibration mode indicator
(displayed on calibration pages)
D5458-2
Distance units:
• no units = kilometres
• nm = nautical miles
• SM = statute miles
