NEW CIRCUIT BOARD & GASKET INSTALLATION USING OLD BEZEL - MODELS 185, 265,
335 & 405, A & B SERIES:
Make sure the power and gas are off.
Note: Disregard window gasket installation if already present.
LAY BOARD
DOWN
Fig. 22
CLEAR
WINDOW
GASKET
STICKY SIDE TO
PLASTIC BEZEL
RE-ASSEMBLE WITH NEW BOARD
MOUNTING SCREWS
Fig. 23
2151 Eastman Ave., Oxnard, CA 93030 805-278-5300 Fax 800-777-7026 www.raypak.com
Technical support is available M-F, 5:30 AM to 5:00 PM PST, at 800-947-2975 or 800-627-2975

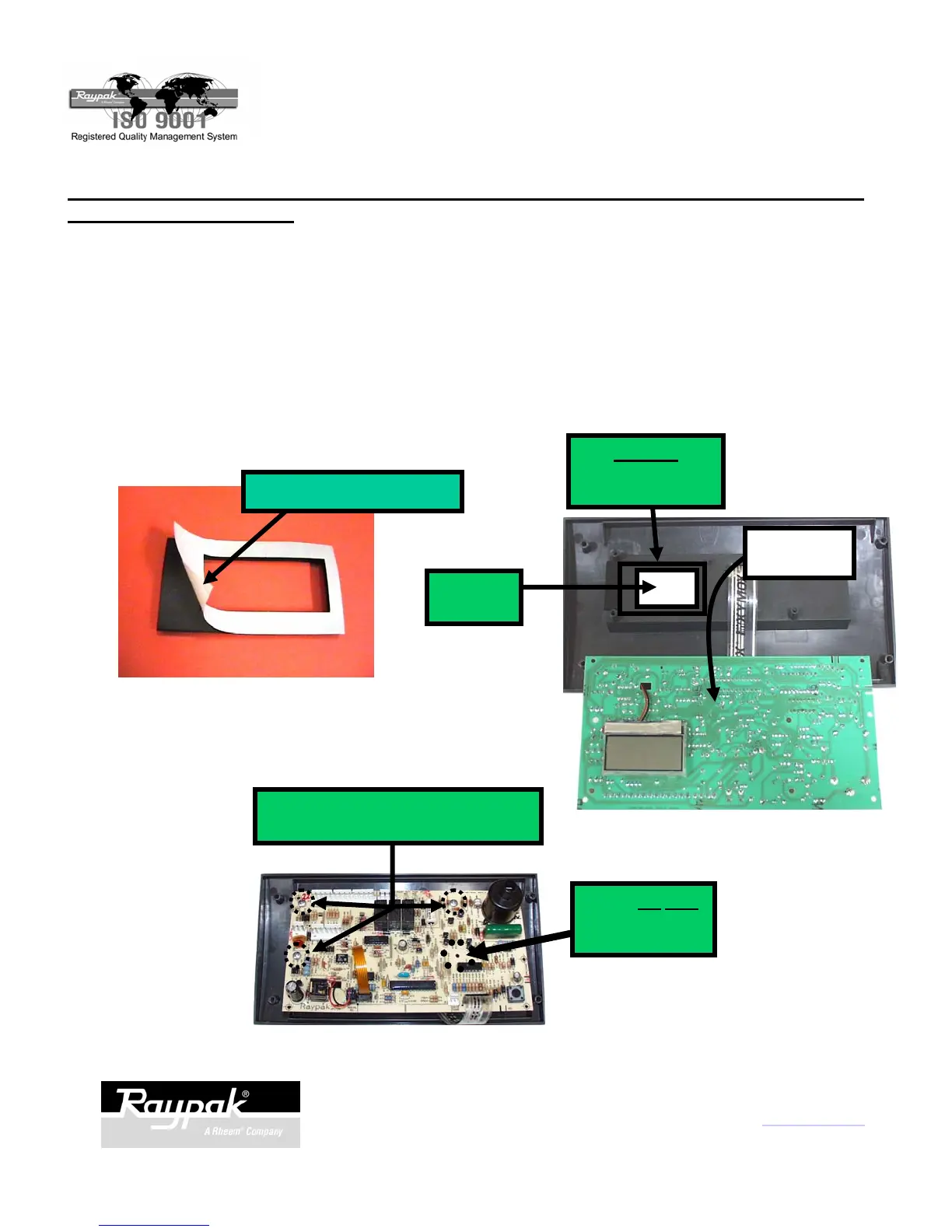

1. Remove backing on gasket and install adhesive side on the control panel bezel as shown in
Fig. 21.
2. Re-assemble with new board to plastic bezel using the three mounting screws as shown in
Fig. 22 & Fig. 23.
REMOVE BACKING
Fig. 21
P/N 241169 Rev.-3
NOTE: DO NOT
RE-INSTALL
SCREW HERE
