WATER TEMPERATURE SENSOR
• INSTALLATION
The water sensor
should be installed
in the system supply.
Multiple Boilers
Single Boiler
Water Sensor

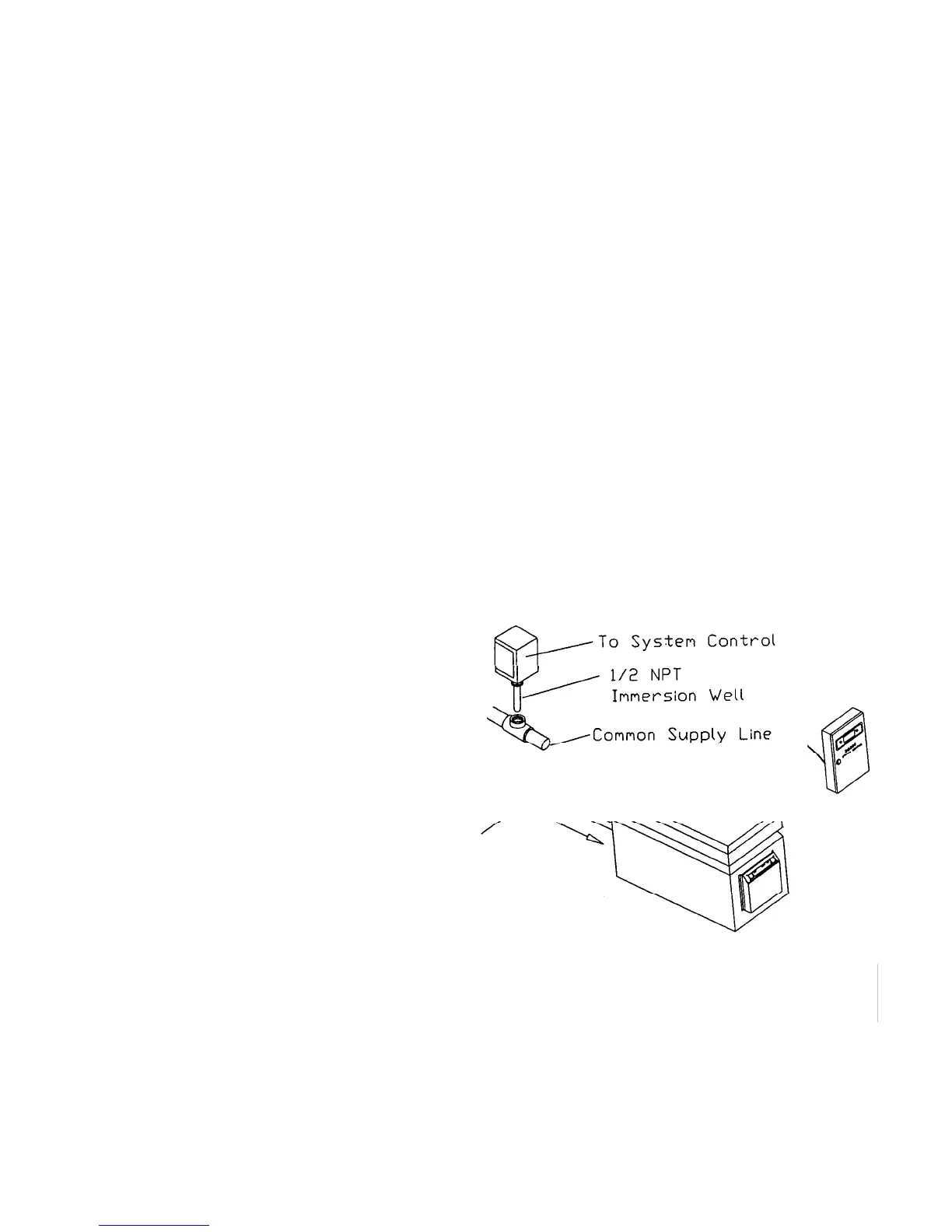

TYPICAL WATER SENSOR
Water Temperature Sensor Installation Notes:
• Locate sensor in system piping within a minimum of three (3) feet or prior to the first
take off connection, on the downstream side of the System Supply Loop.
• Assure cable length does not exceed 4000 ft. Use larger gauge (Belden #9842) wire
if run is in excess of 100 ft.
• Install in conduit with no other wiring.
• Observe proper wire colors. Sensor is ploarity sensitive.
Page 10
Return
Supply
To Next Page
