Page 9
AIR TEMPERATURE SENSOR
• INSTALLATION

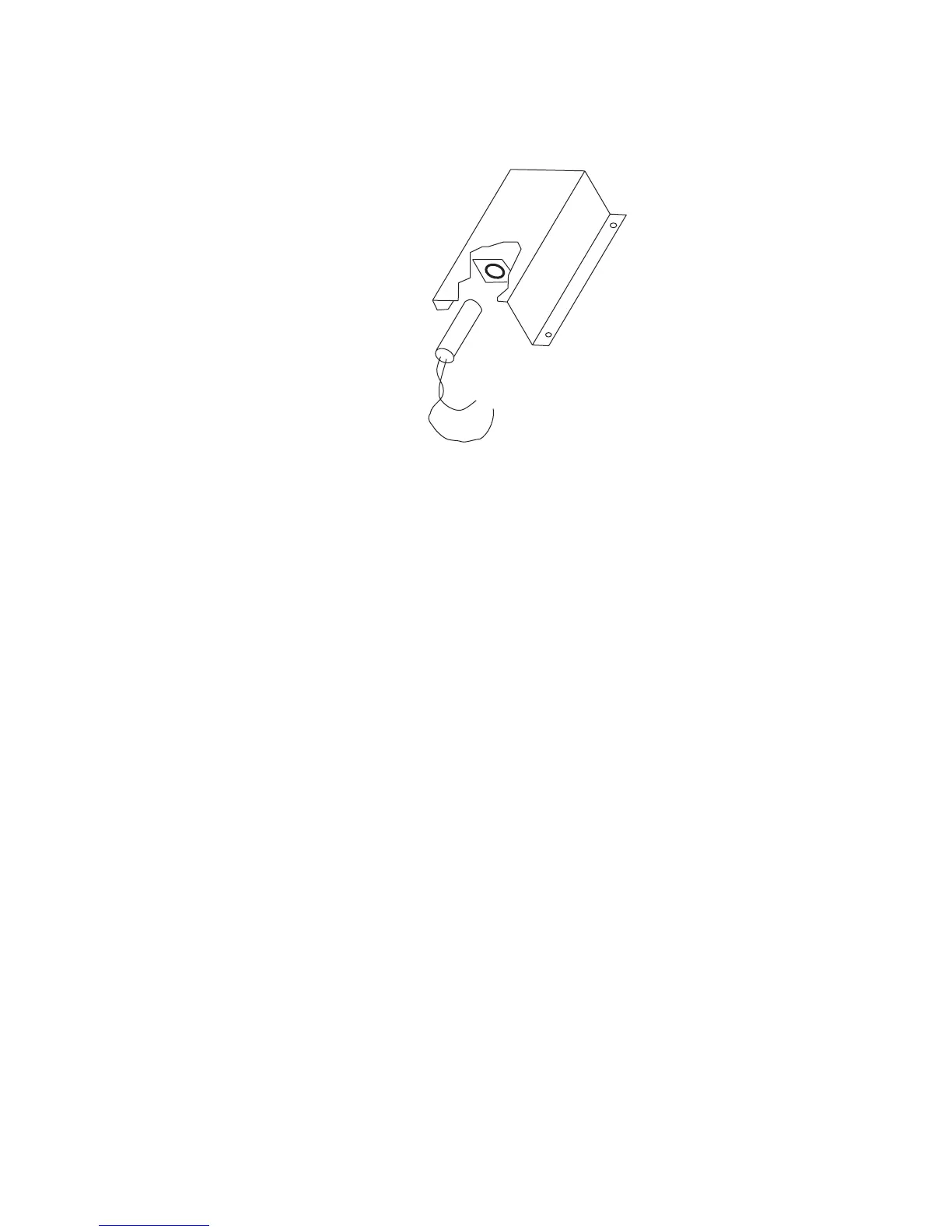

Fig. #9040
TYPICAL AIR TEMPERATURE SENSOR
Air Temperature Sensor Installation Notes:
• Locate on coldest side of building, usually (North or West) side.
• Install the sensor in a shaded area, out of direct sunlight.
• Locate no higher than 2/3 way up side of building or between 2nd and 3rd floor if building
is more than 3 stories tall.
• Shielded cable length not to exceed 4000 feet.
• Do not locate under an overhang, near wall corners, near drafts from stacks, air
moving devices, windows, doors, or balconies.
• Assure cable length does not exceed 4000 ft. Use larger gauge (Belden #9842)
cable if run is in excess of 100 ft.
• Install in conduit with no other wiring.
• Observe proper wire colors. Sensor is polarity sensitive.
