Thermalert GP Series Operator’s Manual 17
SP1
DB
Signal
SP1=90
DB=5

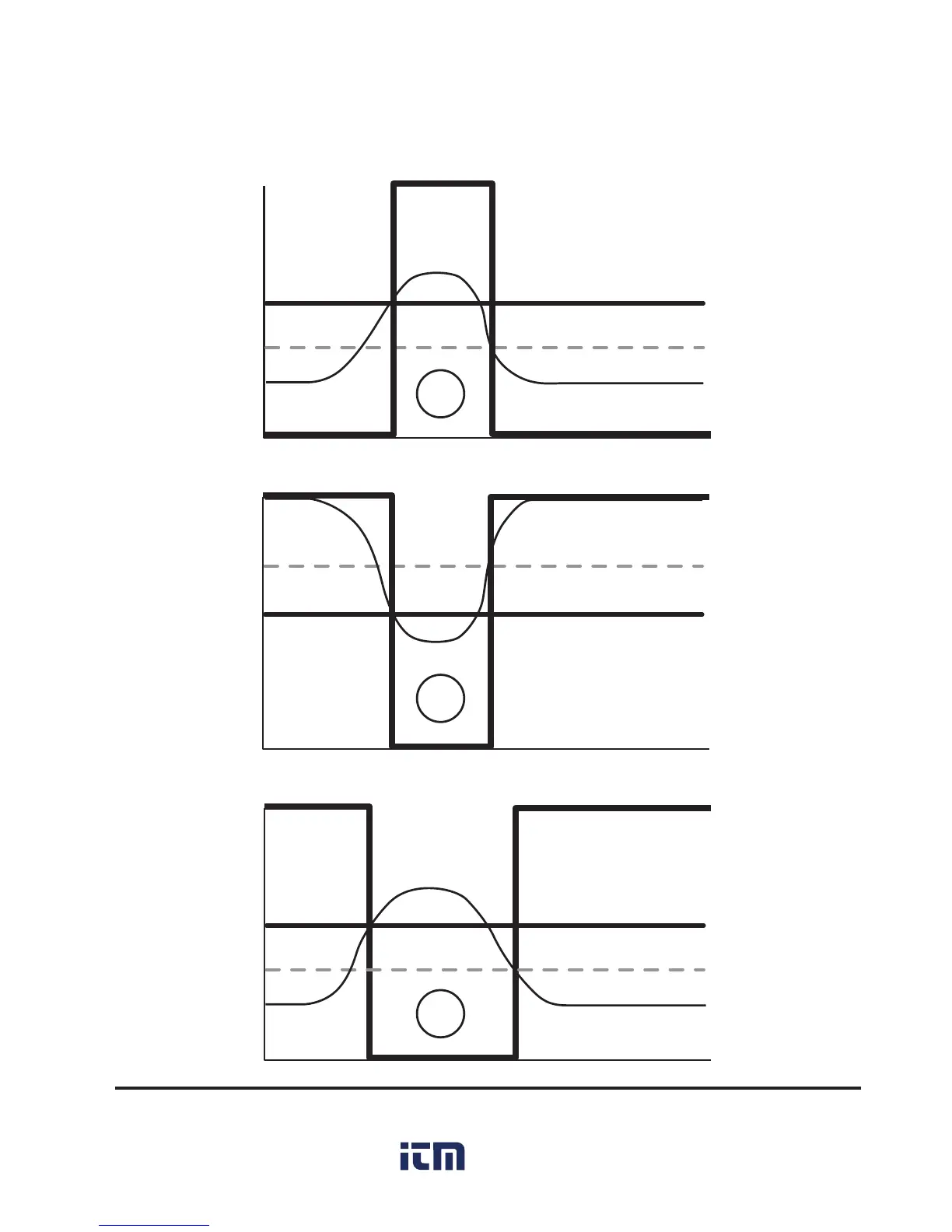

GP Monitor Display= b 1 Trigger Signal High, Output Normally Low
SP1
DB
Signal
SP1=90
DB=5
GP Monitor Display= b 2 Trigger Signal Low, Output Normally High
SP1
DB
Signal
SP1=90
DB=5
GP Monitor Display= b 3 Trigger Signal High, Output Normally High
