Raytheon Beech Baron E55 - Page 184

RBy~heO´•
Aircraft
Company
BARON
55
AND 58
SHOP
MANUAL

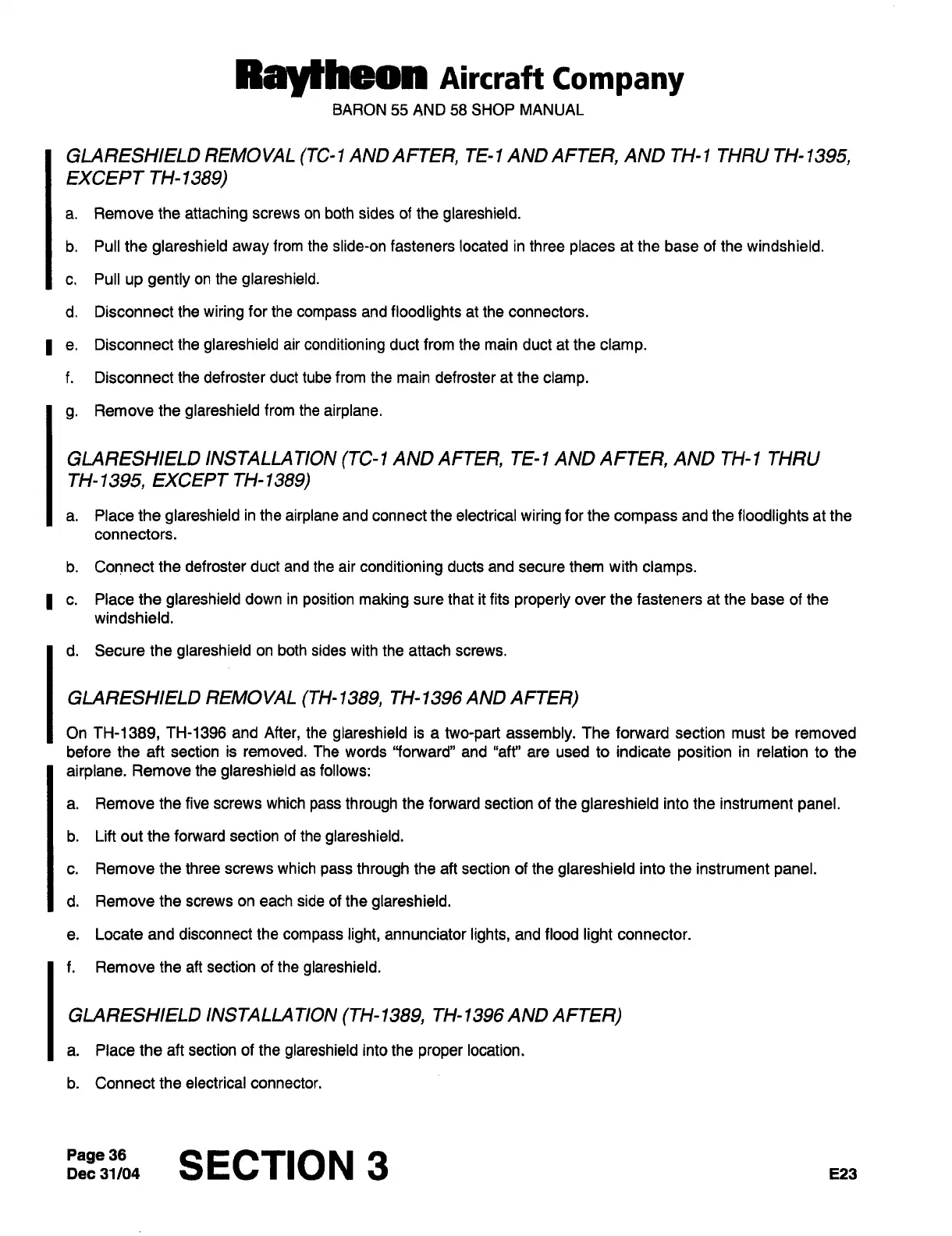

GLARESHIELD
REMOVAL
(TC-1
AND
AFTER,
TE-
I
AND
AFTER,
AND TH-
I
THRU
TH-
1395,
EXCEPT
TH-
1
389)
a.
Remove
the
attaching
screws on
both
sides
of
the
glareshield.
b. Pull the
glareshield
away
from the
slide-on
fasteners located
in
three
places
at
the
base
of the
windshield.
c.
Pull
up
gently
on
the
glareshield.
d. Disconnect
the
wiring
for the
compass
and
floodlights
at
the
connectors.
I
e.
Disconnect
the
glareshield
air
conditioning
duct
from
the main duct
at
the
clamp.
f.
Disconnect
the
defroster
duct tube
from
the main
defroster
at
the
clamp.
g.
Remove
the
glareshield
from the
airplane.
GLARESHIELD
INSTALLA TION
(TC-
1
AND
AFTER,
TE-
1
AND
AFTER,
AND TH-
1
THRU
TH-
1395,
EXCEPT
TH-
1389)
a.
Place
the
glareshield
in the
airplane
and
connect
the electrical
wiring
for the
compass
and the
floodlights
at
the
connectors.
b.
Connect
the
defroster
duct and the air
conditioning
ducts and
secure
them
with
clamps.
c.
Place
the
glareshield
down
in
position
making
sure
that
it
fits
properly
over
the
fasteners
at
the base of the
windshield.
I
d.
Secure
the
glareshield
on
both
sides
with the attach
screws.
GLARESHIELD
REMOVAL
(TH-
1389,
TH-
1396
AND
AFTER)
On
TH-1389,
TH-1396
and
After,
the
glareshield
is
a
two-part
assembly.
The forward section
must
be
removed
before
the
aft section is removed. The
words
"forward"
and
"aft~’
are
used
to
indicate
position
in
relation
to
the
airplane.
Remove the
glareshield
as
follows:
a.
Remove
the
five
screws
which
pass
through
the forward
section
of
the
glareshield
into
the
instrument
panel.
b. Lift
out
the
forward
section
of
the
glareshield.
c.
Remove the three
screws
which
pass
through
the aft
section
of the
glareshield
into
the instrument
panel.
d. Remove
the
screws
on
each side of the
glareshield.
e.
Locate
and
disconnect
the
compass
light,
annunciator
lights,
and flood
light
connector.
f.
Remove
the
aft
section
of
the
glareshield.
GL4RESHIELD
INSTALLA
TION
(TH-1389,
TH-
1396 AND
AFTER)
a.
Place the
aft
section of
the
glareshield
into the
proper
location.
b.
Connecttheelectrical
connector.
Page
36SECTION
3
E23
