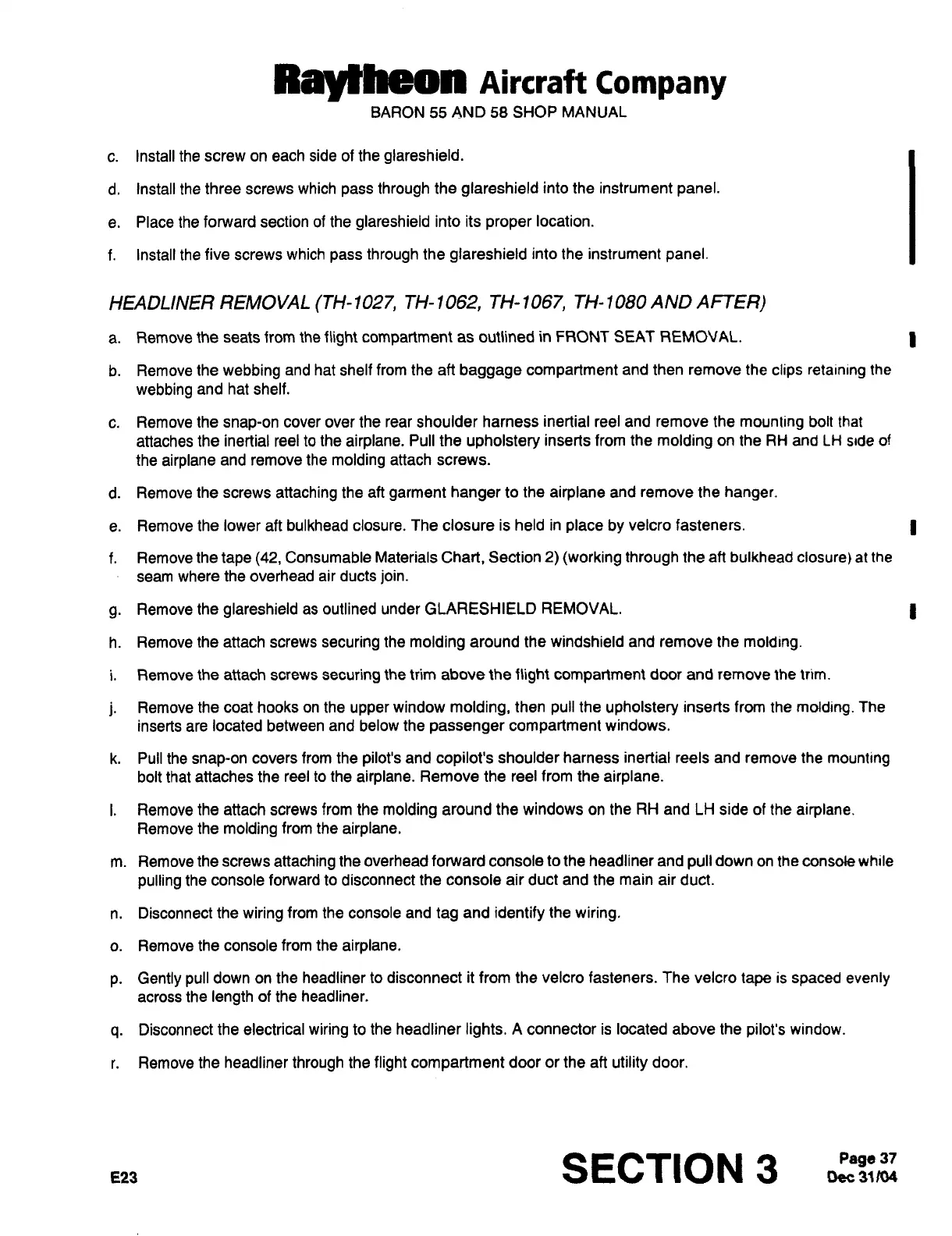

BARON
55
AND
58
SHOP
MANUAL
c.
Install
the
screw
on
each
side
of
the
glareshield.
d.
Install
the
three
screws
which
pass
through
the
glareshield
into
the
instrument
panel.
e.
Place
the
forward
section
of
the
glareshield
into
its
proper
location.
f.
Install
the
five
screws
which
pass
through
the
glareshield
into
the
instrument
panel.
HEADLINER
REMOVAL
(TH-10277
TH-
1062,
TH-1067,
TH-
1080
AND
AFTER)
a.
Remove
the
seats
from
the
flight
compartment
as
outlined
in
FRONT
SEAT
REMOVAL.
b.
Remove
the
webbing
and
hat
shelf
from
the
aft
baggage
compartment
and
then
remove
the
clips
retaining
the
webbing
and
hat
shelf.
c.
Remove
the
snap-on
cover
over
the
rear
shoulder
harness
inertial
reel
and
remove
the
mounting
bolt
that
attaches
the
inertial
reel
to
the
airplane.
Pull
the
upholstery
inserts
from
the
molding
on
the
RH
and
LX
stde
of
the
airplane
and
remove
the
molding
attach
screws.
d.
Remove
the
screws
attaching
the
aft
garment
hanger
to
the
airplane
and
remove
the
hanger,
e.
Remove
the
lower
aft
bulkhead
closure.
The
closure
is
held
in
place
by
velcro
fasteners.
1
f.
Remove
the
tape
(42,
Consumable
Materials
Chart,
Section
2)
(working
through
the
aft
bulkhead
closure)
at
the
seam
where
the
overhead
air
ducts
join.
g.
Remove
the
glareshield
as
outlined
under
GLARESHIELD
REMOVAL.
I
h.
Remove
the
attach
screws
securing
the
molding
around
the
windshield
and
remove
the
molding.
i.
Remove
the
attach
screws
securing
the
trim
above
the
flight
compartment
door
and
remove
the
trim.
j.
Remove
the
coat
hooks
on
the
upper
window
molding,
then
pull
the
upholstery
inserts
from
the
molding.
The
inserts
are
located
between
and
below
the
passenger
compartment
windows.
k.
Pull
the
snap-on
covers
from
the
pilot’s
and
copilot’s
shoulder
harness
inertial
reels
and
remove
the
mounting
bolt
that
attaches
the
reel
to
the
airplane.
Remove
the
reel
from
the
airplane.
i.
Remove
the
attach
screws
from
the
molding
around
the
windows
on
the
RH
and
LH
side
of
the
airplane.
Remove
the
molding
from
the
airplane.
m.
Remove
the
screws
attaching
the
overhead
forward
console
to
the
headliner
and
pull
down
on
the
console
while
pulling
the
console
forward
to
disconnect
the
console
air
duct
and
the
main
air
duct,
n.
Disconnect
the
wiring
from
the
console
and
tag
and
identify
the
wiring,
o.
Remove
the
console
from
the
airplane,
p.
Gently
pull
down
on
the
headliner
to
disconnect
it
from
the
velcro
fasteners.
The
velcro
tape
is
spaced
evenly
across
the
length
of
the
headliner.
q.
Disconnect
the
electrical
wiring
to
the
headliner
lights.
A
connector
is
located
above
the
pilot’s
window.
r.
Remove
the
headliner
through
the
flight
compartment
door
or
the
aft
utility
door.
