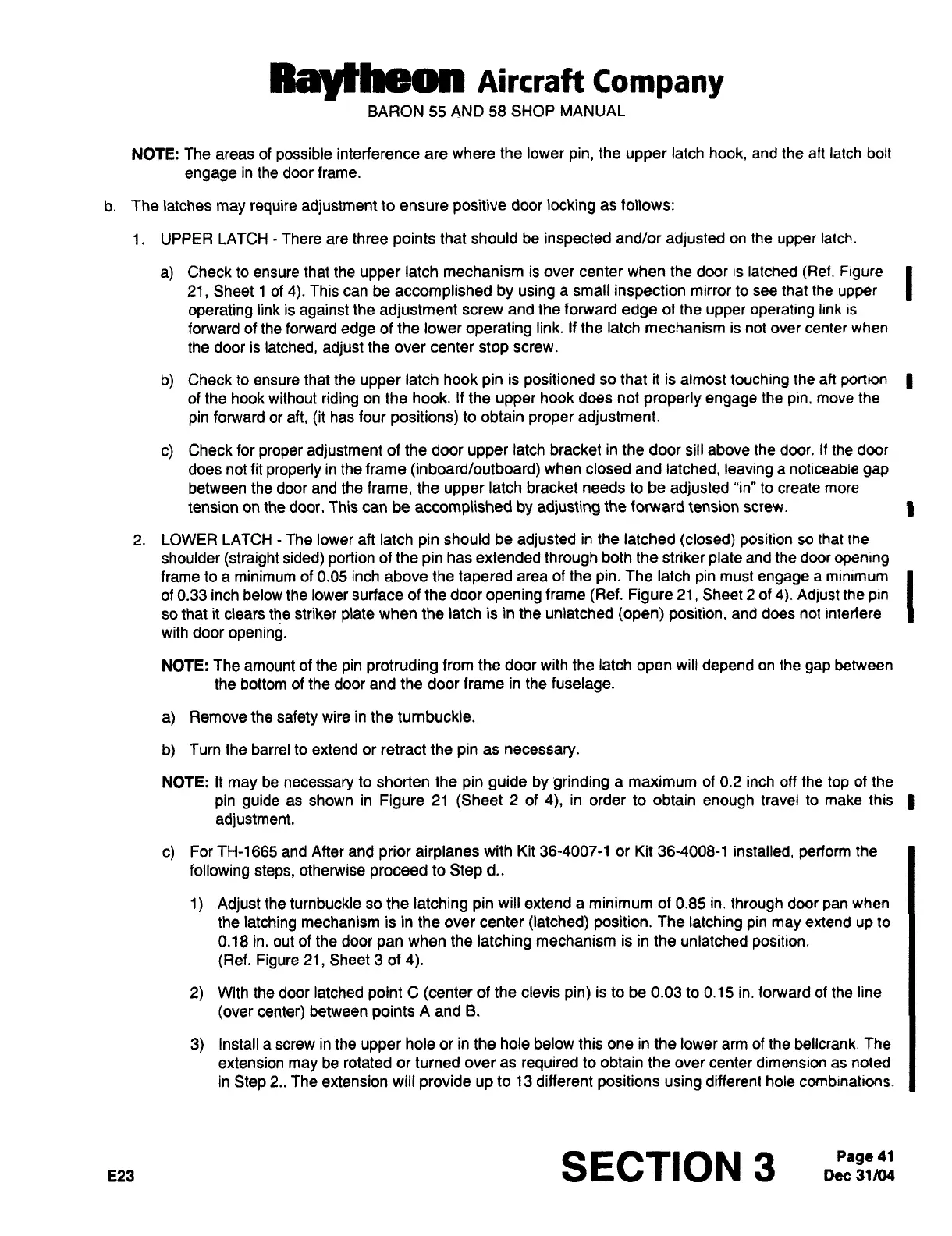

Raytheon Beech Baron E55 - Page 189

Raycheon
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
NOTE: The
areas
of
possible
interference
are
where the
lower
pin,
the
upper
latch
hook,
and
the
aft
latch
bolt
engage
in
the door
frame.
b.
The latches
may
require
adjustment
to
ensure
positive
door
locking
as
follows:
1.
UPPER
LATCH There
are
three
points
that
should
be
inspected
and/or
adjusted
on
the
upper
latch.
a)
Check
to
ensure
that
the
upper
latch
mechanism
is
over
center
when the
door
is
latched
rRef.
Figure
21,
Sheet
1
of
4).
This
can
be
accomplished
by
using
a
small
inspection
mirror
to
see
that
the
upper
operating
link
is
against
the
adjustment
screw
and the
forward
edge
of the
upper
operating
link
Is
forward of
the forward
edge
of
the lower
operating
link.
If
the latch
mechanism is
not
over
center
when
the
door
is
latched,
adjust
the
over
center
stop
screw.
b)
Check
to
ensure
that the
upper
latch
hook
pin
is
positioned
so
that
it is
almost
touching
the
aft
portion
of
the hook without
riding
on
the
hook.
If
the
upper
hook
does
not
properly
engage
the
pin,
move
the
pin
forward
or
aft,
tit
has
four
positions)
to
obtain
proper
adjustment.
c)
Check
for
proper
adjustment
of the door
upper
latch bracket
in
the door sill
above
the
door.
It
the
door
does
not
fit
properly
in
the
frame
(inboard/outboard)
when
closed and
latched,
leaving
a
noticeable
gap
between
the door and
the
frame,
the
upper
latch bracket needs
to
be
adjusted
"in"
to
create
more
tension
on
the
door.
This
can
be
accomplished by adjusting
the
forward tension
screw.
2.
LOWER
LATCH
The
lower
aft latch
pin
should
be
adjusted
in the
latched
(closed)
position
50
that
the
shoulder
(straight
sided)
portion
of
the
pin
has
extended
through
both
the
striker
plate
and the door
opening
frame
to
a
minimum
of
0.05
inch
above
the
tapered
area
of
the
pin.
The
latch
pin
must
engage
a
minimum
of 0.33 inch
below
the
lower
surface
of
the
door
opening
frame
(Ref.
Figure
21,
Sheet
2
of
4).
Adjust
the
pin
so
that
it
clears the
striker
plate
when
the
latch
is
in
the
unlatched
(open)
position,
and does
not
intertere
with
door
opening.
NOTE:
The
amount
of the
pin
protruding
from the door
with the
latch
open
will
depend
on
the
Sap
between
the
bottom
of
the door and
the
door
frame
in
the
fuselage.
a)
Remove the
safety
wire
in
the
turnbuckle.
b)
Turn
the
barrel
to
extend
or
retract
the
pin
as
necessary.
NOTE:
It
may
be
necessary
to
shorten
the
pin
guide
by
grinding
a
maximum
of
0.2 inch
off
the
top
of
the
pin guide
as
shown in
Figure
21
(Sheet
2
of
4),
in
order
to
obtain
enough
travel
to
make
this
adjustment.
c)
For TH-1665 and After
and
prior
airplanes
with
Kit
36-4007-1 or
Kit
36-4008-1
installed,
perform
the
following
steps,
otherwise
proceed
to
Step
d..
1)
Adjust
the
turnbuckle
so
the
latching
pin
will
extend
a
minimum
of
0.85
in.
through
door
pan
when
the
latching
mechanism is
in
the
over
center
(latched) position.
The
latching
pin
may
extend
up
to
0.18
in,
out
of
the
door
pan
when
the
latching
mechanism is in the
unlatched
position.
(Ref. Figure
21,
Sheet
3
of
4).
2)
With
the door
latched
point
C
(center
of
the clevis
pin)
is
to
be 0.03
to
0.15
in.
forward of
the
line
lover
center)
between
points
A
and
B.
3)
Install
a screw
in
the
upper
hole
or
in
the
hole
below this
one
in the
lower
arm
of
the
bellcrank. The
extension
may
be
rotated
or
turned
over
as
required
to
obtain
the
over
center
dimension
as
noted
in
Step
2..
The extension will
provide
up
to
13
different
positions
using
differenl
hole combinations.
