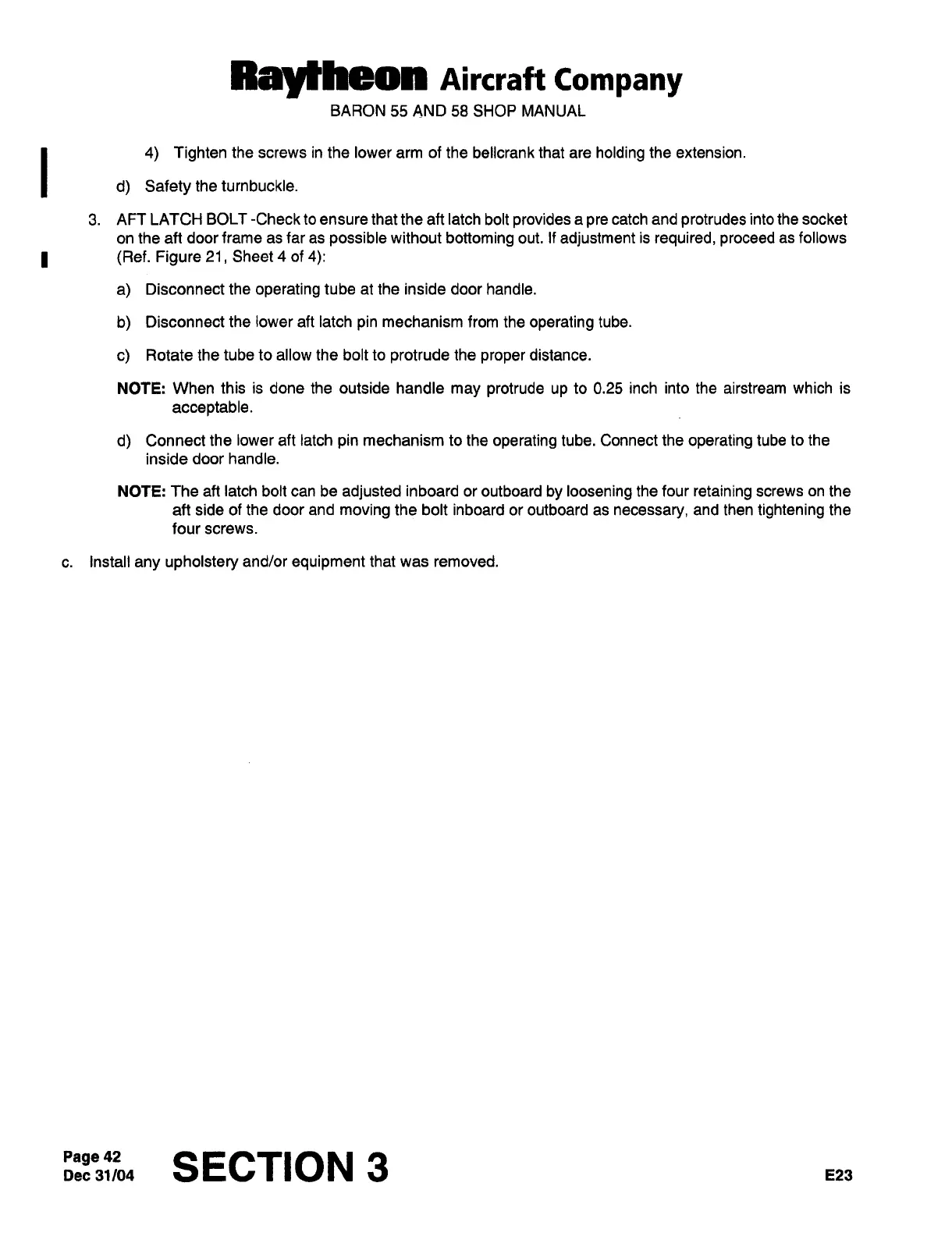

Ray~heon
AiKraft
Company
BARON
55
AND
58
SHOP
MANUAL
I
4) Tighten
the
screws
in
the
lower
arm
of
the bellcrank that
are
holding
the
extension.
d)
Safety
the turnbuckle.
3.
AFT
LATCH BOLT -Check
to
ensure
that the
aft
latch bolt
provides
a
pre
catch and
protrudes
into
the
socket
on
the aft
door
frame
as
far
as
possible
without
bottoming
out.
If
adjustment
is
required, proceed
as
follows
(Ref.
Figure
21,
Sheet
4
of
4):
a)
Disconnect
the
operating
tube
at
the inside door handle.
b)
Disconnect
the lower aft latch
pin
mechanism from
the
operating
tube.
c)
Rotate the
tube
to
allow
the
bolt
to
protrude
the
proper
distance.
NOTE:
When
this
is done
the
outside handle
may
protrude
up
to
0.25
inch into
the
airstream
which
is
acceptable.
d)
Connect
the lower aft latch
pin
mechanism
to
the
operating
tube.
Connect
the
operating
tube
to
the
inside
door
handle.
NOTE:
The
aft
latch bolt
can
be
adjusted
inboard
or
outboard
by loosening
the
four
retaining
screws
on
the
aft
side
of
the
door and
moving
the bolt inboard
or
outboard
as
necessary,
andthen
tightening
the
four
screws.
c.
Install
any
upholstery
and/or
equipment
that
was
removed.
Page
42Dec
31/04
SECTION
3
E23
