Raytheon Beech Baron E55 - Page 199

Raytheon
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
INSIDE DOOR
SHAFT
ASSEMBLY
CLEVIS
_?c
15’
J‘
TUBE
ASSEMBLY
AFTtl
STOP
DOWN
TC-1 THRU
TC-1607;
TH-1
THRU
TH-384;
AND
TE-1
THRU
TE-942.
EXCEPT
TE-938
INSIDE DOOR
SHAFT
ASSEMBLY
CLEVIS
.f
._i
30"
j‘
TUBE
ASSEMBLY
AFT
STOP
DOWN
TC-1608 AND
AFTER;
TH-385 AND
AFTER;
AND
TE-938.
TE-943
AND AFTER
3me

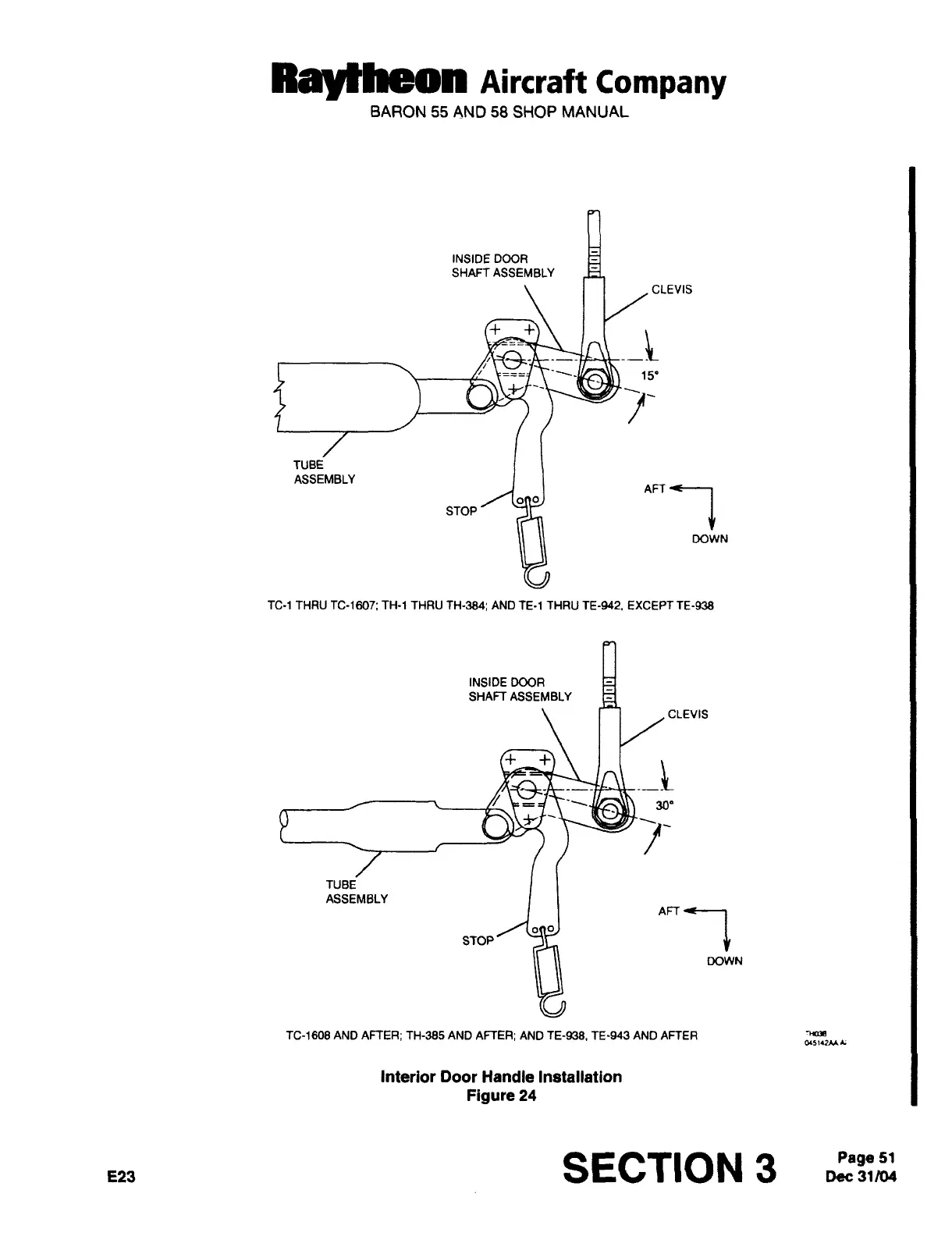

Interior Door Handle
Installation
Figure
24
E23
SECTION
3
Dec
311[)9Page
51
