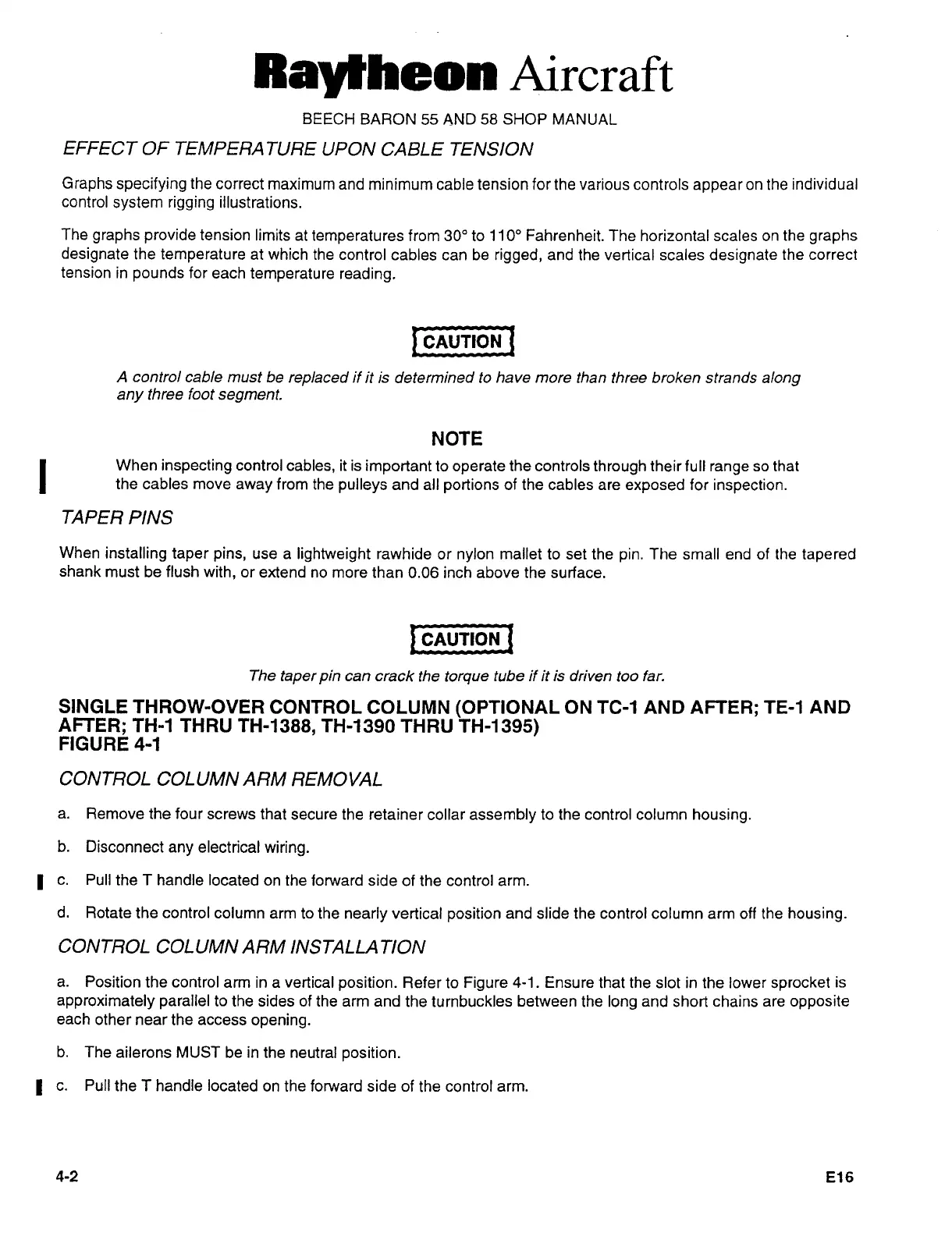

Raytheon
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
EFFECT
OF
TEMPERA
TURE
UPON
CABLE
TENSION
Graphs
specifying
the
correct
maximum
and
minimum
cable
tension
for
the
various
controls
appear
on
the
individual
control
system
rigging
illustrations.
The
graphs
provide
tension
limits
at
temperatures
from
30"
to
110"
Fahrenheit.
The
horizontal
scales
on
the
graphs
designate
the
temperature
at
which
the
control
cables
can
be
rigged,
and
the
vertical
scales
designate
the
correct
tension
in
pounds
for
each
temperature
reading.
I
CAVTION
I
CAUTION
A
control
cable
must
be
replaced
if
it
is
determined
to
have
more
than
three
broken
strands
along
any
three
foot
segment.
NOTE
I
When
inspecting
control
cables,
it
is
important
to
operate
the
controls
through
their
full
range
so
that
the
cables
move
away
from
the
pulleys
and
all
portions
of
the
cables
are
exposed
for
inspection.
TAPER
PINS
When
installing
taper
pins,
use
a
lightweight
rawhide
or
nylon
mallet
to
set
the
pin.
The
small
end
of
the
tapered
shank
must
be
flush
with,
or
extend
no
more
than
0.06
inch
above
the
surface.
I
cnunon
I
CAUTION
The
taper
pin
can
crack
the
torque
tube
if
it
is
driven
too
far.
SINGLE
THROW-OVER
CONTROL
COLUMN
(OPTIONAL
ON
TC-1
AND
AFTER;
TE-1
AND
AFTER;
TH-1
THRU
TH-1388,
TH-1390
THRU
TH-1395)
FIGURE
4-1
CONTROL
COLUMN
ARM
REMOVAL
a.
Remove
the
four
screws
that
secure
the
retainer
collar
assembly
to
the
control
column
housing.
b.
Disconnect
any
electrical
wiring.
I
c.
Pull
the
T
handle
located
on
the
forward
side
of
the
control
arm.
d.
Rotate
the
control
column
arm
to
the
nearly
vertical
position
and
slide
the
control
column
arm
off
the
housing.
CONTROL
COLUMN
ARM
INSTALLA
TION
a.
Position
the
control
arm
in
a
vertical
position.
Refer
to
Figure
4-1.
Ensure
that
the
slot
in
the
lower
sprocket
is
approximately
parallel
to
the
sides
of
the
arm
and
the
turnbuckles
between
the
long
and
short
chains
are
opposite
each
other
near
the
access
opening.
b.
The
ailerons
MUST
be
in
the
neutral
position.
I
c.
Pull
the
T
handle
located
on
the
forward
side
of
the
control
arm.
4-2
E16
