Ray~heon
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
s
3
12
j
14
9
11
7
17
13
1.
COTTER PIN
2.
SNAP RING
3.
PISTON
SCRAPER
4.
O-RINGS
5. BARREL
END
~15
6.
BARREL
7.
ATTACHMENT
HOLE
8.
WASHER
9.
COMPRESSION
SPRING
10.
FLOATING
PISTON
II.
O-RING
12.
PISTON
ROD
7
13.
O-RINGS
19
14.
DAMPER
PISTON
20
15.
RETAINING
PIN
21
16.
O-RING
22
17.
FLOATING
PISTON
18.
COMPRESSION
SPRING
23
19.
BARREL
END
24
20.
O-RING
21.
O-RING
22.
PISTON
SCRAPER
23.
SNAP RING
CPsE032828ii
24.
CLEVIS

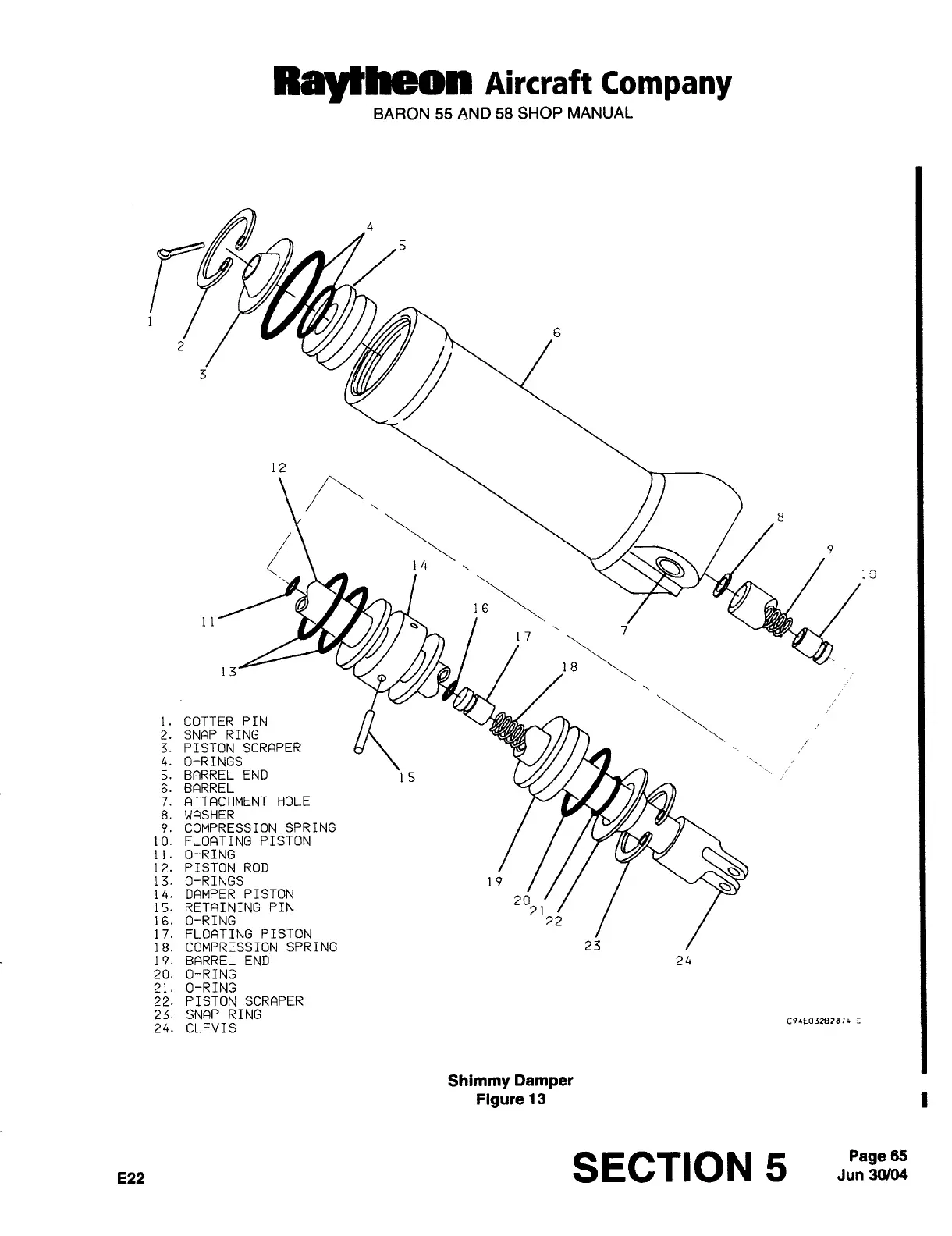

Shimmy
Damper
Figure
13
E22
SECTION 5
Jun
30/04Page
65
