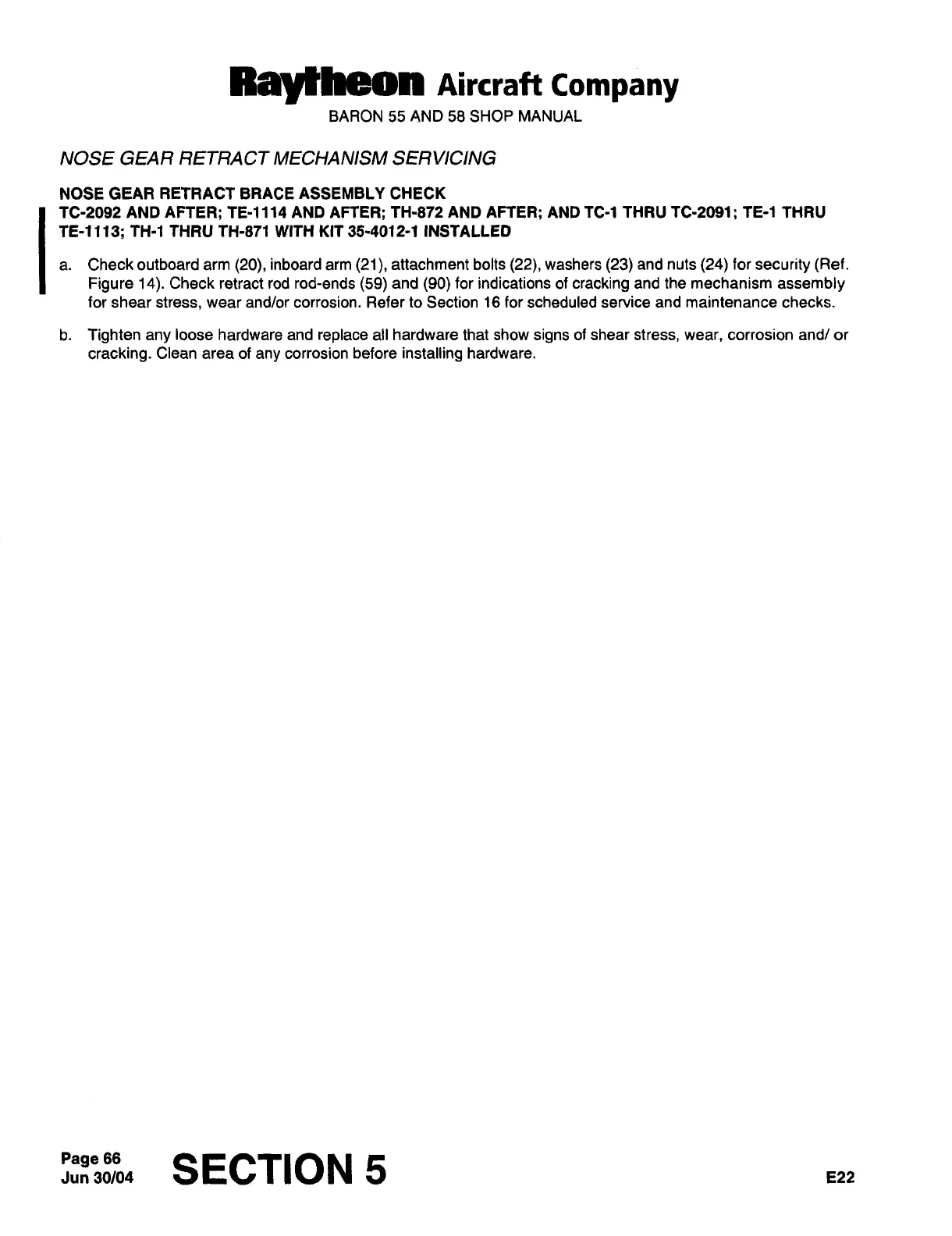

Raytheon Beech Baron E55 - Page 360

Raylheon
AiKraft
Company
BARON
55
AND
58
SHOP
MANUAL
NOSE
GEAR
RETRACT
MECHANISM SERVICING
NOSE GEAR
RETRACT
BRACE
ASSEMBLY
CHECK
TC-2092
AND
AFTER;
TE-1114
AND
AFTER;
TH-872 AND
AFTER;
AND TC-1 THRU
TC-2091;
TE-1
THRU
TE-1113;
TH-1 THRU
TH-871
WITH KIT
35-4012-1
INSTALLED
a.
Check
outboard
arm
(20),
inboard
arm
(21),
attachment bolts
(22),
washers
(23)
and
nuts
(24)
for
security
(Ref.
Figure
14).
Check
retract
rod
rod-ends
(59)
and
(90)
for indications
of
cracking
and the
mechanism
assembly
for
shear
stress,
wear
and/or
corrosion.
Refer
to
Section
16
for scheduled service and maintenance
checks.
b.
Tighten
any
loose hardware and
replace
all hardware
that
show
signs
of
shear
stress,
wear,
corrosion
and/
or
cracking.
Clean
area
of
any
corrosion before
installing
hardware.
Jun
30/04Page
66
SECTION
5
E22
