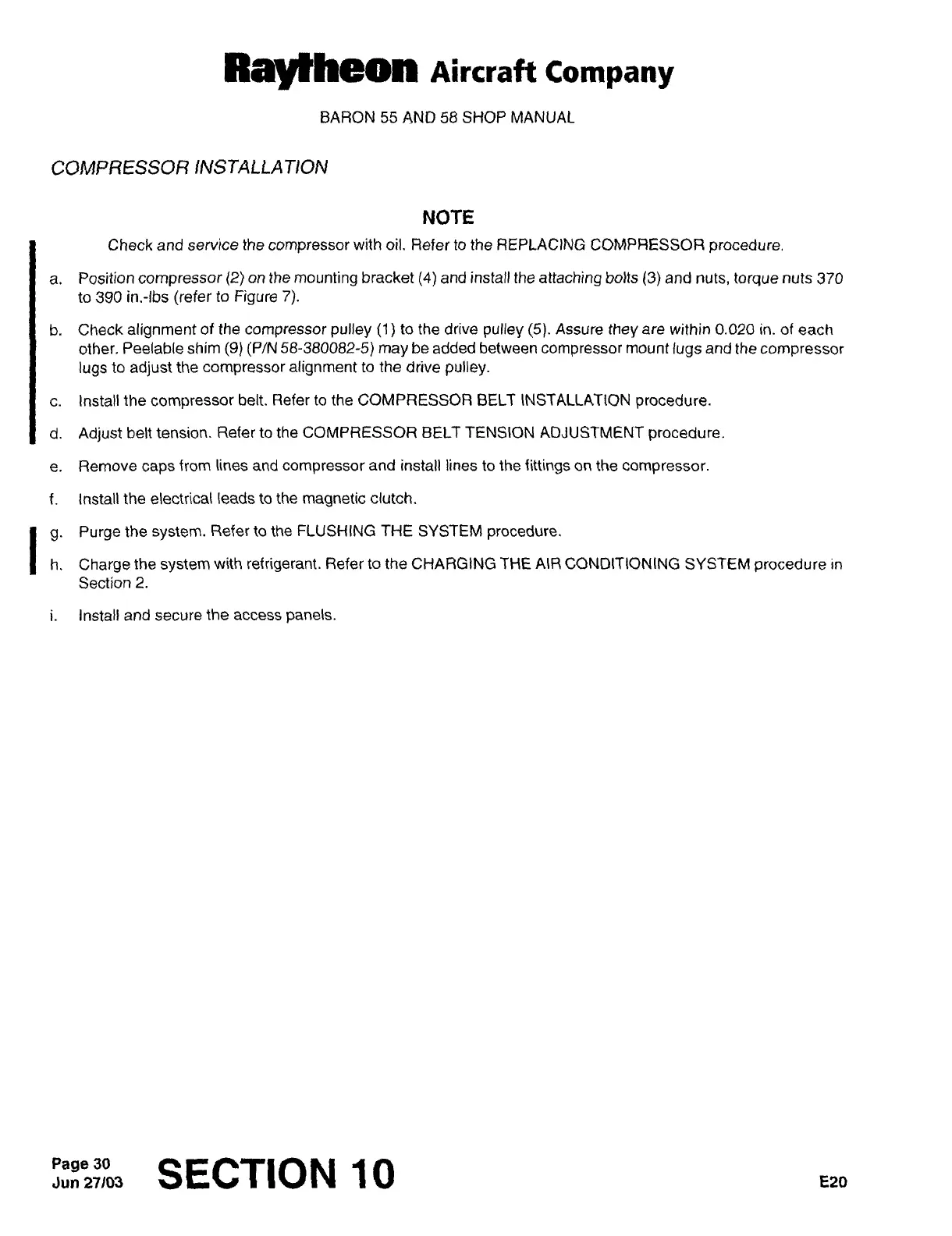

Raytheon Beech Baron E55 - Page 468

Aircraft
tompany
BARON
55
AND
58
SHOP MANUAL
COMPRESSOR
INSTALLATION
NOTE
Check and
service
the
compressor
with oil.
Refer
to
the
REPLAC)NG COMPRESSOR
procedure.
a.
Position
compressor
(2)
on
the
mounting
bracket
(4)
and
install
the
attaching
bolts
(3)
and
nuts,
torque
nuts
370
to 390
in.-lbs
(refer
to
Figure
7).
b.
Check
alignment
of
the
compressor
pulley
(1)
to
the
drive
pulley (5).
Assure
they
are
within
0.020 in.
of
each
other.
Peelable
shim
(9) (P/N 58-380082-5)
may
be
added
between
compressor
mount
lugs
and
the
compressor
lugs
to
adjust
the
compressor
alignment
to
the
drive
pulley.
c.
Install
the
compressor
belt.
Refer
to
the
COMPRESSOR
BELT
INSTALLATION
procedure.
d.
Adjust
belt tension.
Refer
to
the
COMPRESSOR
BELT TENSION
ADJUSTMENT
procedure.
e.
Remove
caps
from
lines
and
compressor
and
install
lines
to
the
fittings
on
the
compressor.
f.
Install
the
electrical leads to
the
magnetic
clutch.
I
g.
Purge
the
system.
Refer
to
the
FLUSHING THE
SYSTEM
procedure.
h.
Charge
the
system
with
refrigerant.
Refer
to
the
CHARG1NG
THE
AIR
CONDITIONING
SYSTEM
procedure
in
Section
2.
i.
Install
and
secure
the
access
panels.
Page
SECTION10
E20
