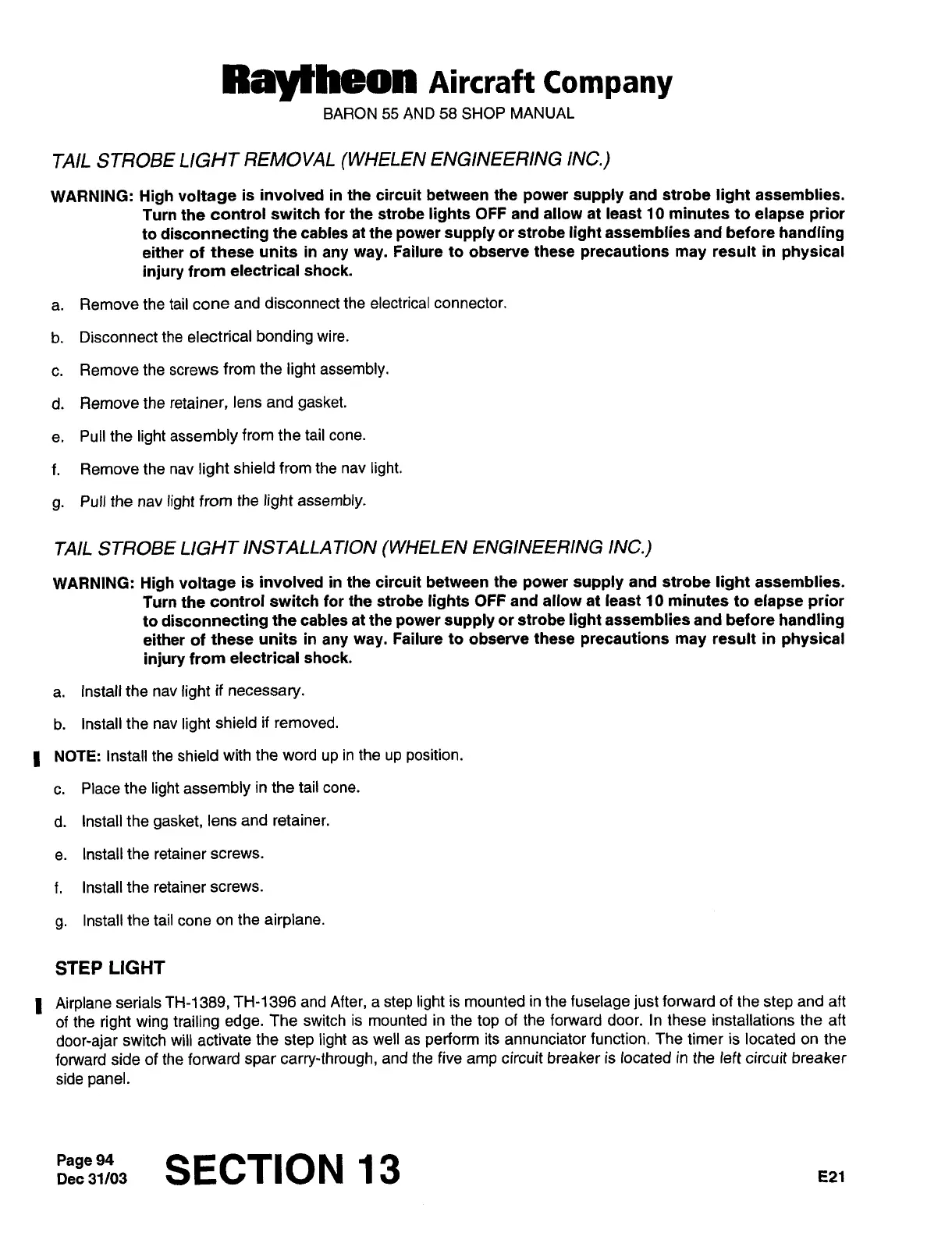

BARON
55
AND
58
SHOP
MANUAL
TAIL
STROBE
LIGHT
REMOVAL
(WHELEN
ENGINEERING
INC.)
WARNING:
High
voltage
is
involved
in the
circuit
between
the
power
supply
and strobe
light
assemblies.
Turn
the
control
switch
for
the strobe
lights
OFF and
allow
at
least 10
minutes
to
elapse
prior
to
disconnecting
the cables
at
the
power
supply
or
strobe
light
assemblies
and
before
handling
either of
these
units
in
any
way.
Failure
to
observe
these
precautions
may
result
in
physical
injury
from
electrical
shock.
a.
Remove
the
tail
cone
and disconnect
the
electrical
connector.
b.
Disconnect
the electrical
bonding
wire.
c.
Remove
the
screws
from
the
light
assembly.
d.
Remove
the
retainer,
lens and
gasket.
e.
Pull
the
light
assembly
from
the
tail
cone.
f.
Remove
the
nav
light
shield from
the
nav
light.
g.
Pull
the
nav
light
from
the
light
assembly.
TAIL
STROBE
LIGHT
INSTALLATION
(WHELEN
ENGINEERING
INC.)
WARNING:
High
voltage
is
involved
in
the
circuit
between
the
power
supply
and strobe
light
assemblies.
Turn the
control
switch for the
strobe
lights
OFF
and
allow at
least
10
minutes
to
elapse prior
to
disconnecting
the
cables
at
the
power
supply
or
strobe
light
assemblies
and
before
handling
either of
these
units
in
any
way.
Failure
to
observe
these
precautions
may
result
in
physical
injury
from
electrical shock.
a.
Installthe
navlightif
necessary.
b.
Install
the
nav
light
shield
if
removed.
NOTE:
Install the
shield
with the word
up
in
the
up
position.
c.
Place
the
light
assembly
in
the
tail
cone.
d.
Install
the
gasket,
lens
and retainer.
e.
Installthe
retainerscrews.
f.
Install
the
retainer
screws.
g.
Install
the
tail
cone
on
the
airplane.
STEP
LIGHT
I
Airplane
serials
TH-1389,
TH-1396
and
After,
a
step
light
is
mounted
in
the
fuselage
just
foMlard
of
the
step
and
aft
of
the
right
wing
trailing
edge.
The
switch
is mounted
in
the
top
of
the
forward
door.
In
these
installations
the
aft
door-ajar
switch
will
activate
the
step
light
as
well
as
perform
its annunciator
function.
The
timer is located
on
the
forward
side
of
the
forward
spar
carry-through,
and
the
five
amp
circuit
breaker is located
in
the
left
circuit
breaker
side
panel.
Dec
31/03Page
94
