Reader Interface
Two standard Wiegand interfaces provide the following connections for typical proximity readers.
Thermal fuse protected power (500ma @13vdc).
Reader Tamper Input(s): Initially, if open it will be ignored, but once a short is connected it will report a
reader tamper alarm whenever the input is opened.
LED and beeper outputs are open collector current limited to 100ma.
Reader Connection

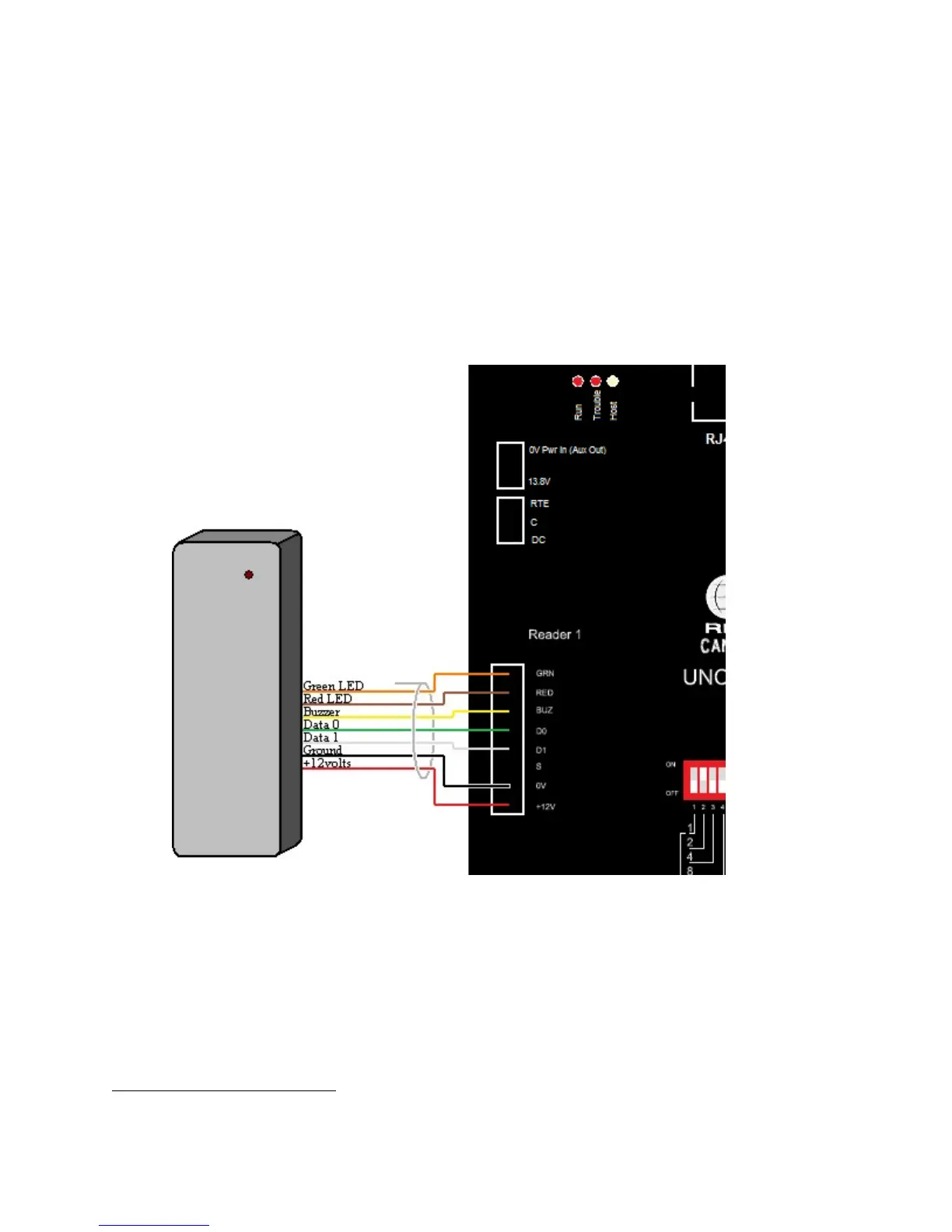

RC-2 to 12-Volt Reader Connection Diagram
1
For ULC-S319-05 III compliance, all wiring into the panel’s cabinet must enter through metal conduit.
Also be sure to mount the panel in a protected area.
1
Reader wire colours may vary for different reader manufactures. Please verify your wiring.
