UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc.
Page 18 of 20
This circuit provides a high degree of supervision and detects both short and open circuit fault
conditions. Use this circuit in high security applications.
This circuit type is used where normally open and normally closed contacts are used in the same loop.
Input Applications
Number
Default Application
1
General Purpose
2
RTE (Request to Exit) Reader A
3
DC (Door Contact) Reader A
4
RTE (Request to Exit) Reader B
5
DC (Door Contact) Reader B

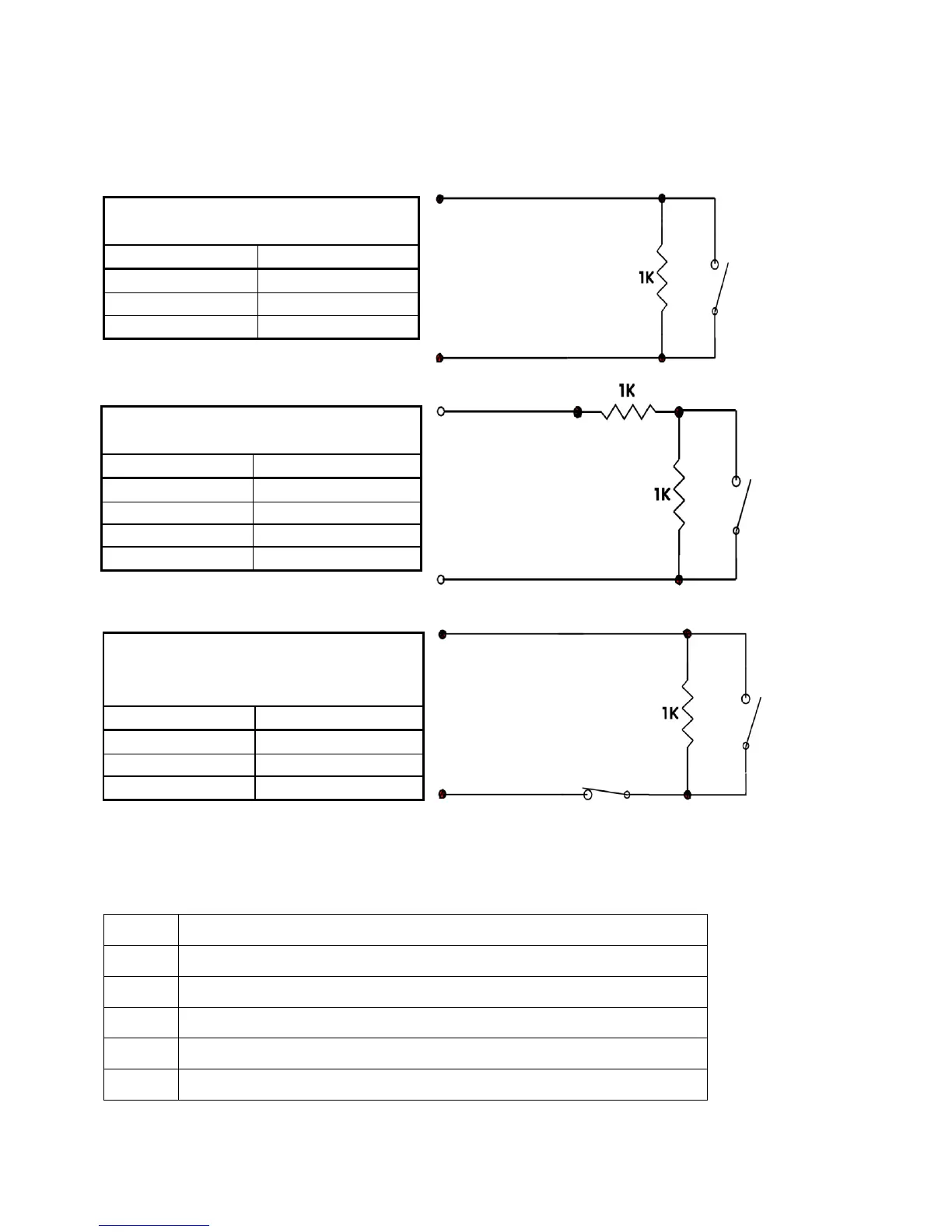

Normally Open, One Resistor
Loop Resistance
State
Short
Alarm
1k
Restore
Open Circuit
Trouble
Normally Open, Two Resistor
Loop Resistance
State
Short
Trouble
1k
Alarm
2k
Restore
Open Circuit
Trouble
Normally Open And Normally
Closed, One Resistor
Loop Resistance
State
Short
Alarm
1k
Restore
Open Circuit
Alarm
