XIV. Control panel (display)
Model: KD986
XIV-1. Product model
Intelligent TFT display for E-bike; model: KD986
XIV-2. Specications
• 24V/36V/48V Power Supply
• Rated working current :50mA
• The maximum working current: 200mA
• Off leakage current: <1μA
• Operating temperature: -20°C ~ 60°C
• Storage temperature: -30°C ~ 70°C

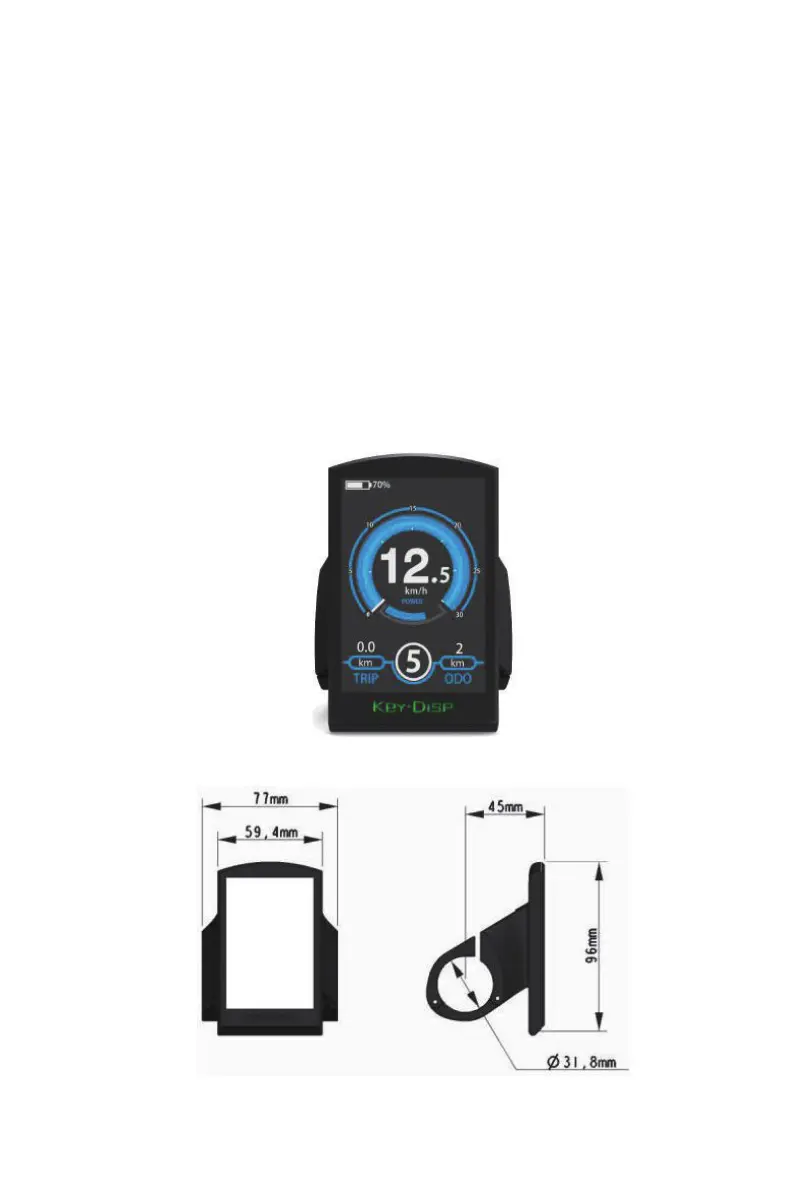

XIV-3. Appearance and Size
Display appearance and dimension drawing (unit: mm)
