XIV-6. General Operation
Switching the E-bike System On/Off
Press the power button to switch on the E-bike system.
To hold the power button for 2s, the E-bike system will be switched off .The E-bike system no
longer uses the battery power.
When switching off the E-bike system, the leakage current is less than 1 μA.
• When parking the E-bike for more than 10 minutes, the E-bike system switches off automat-
ically.

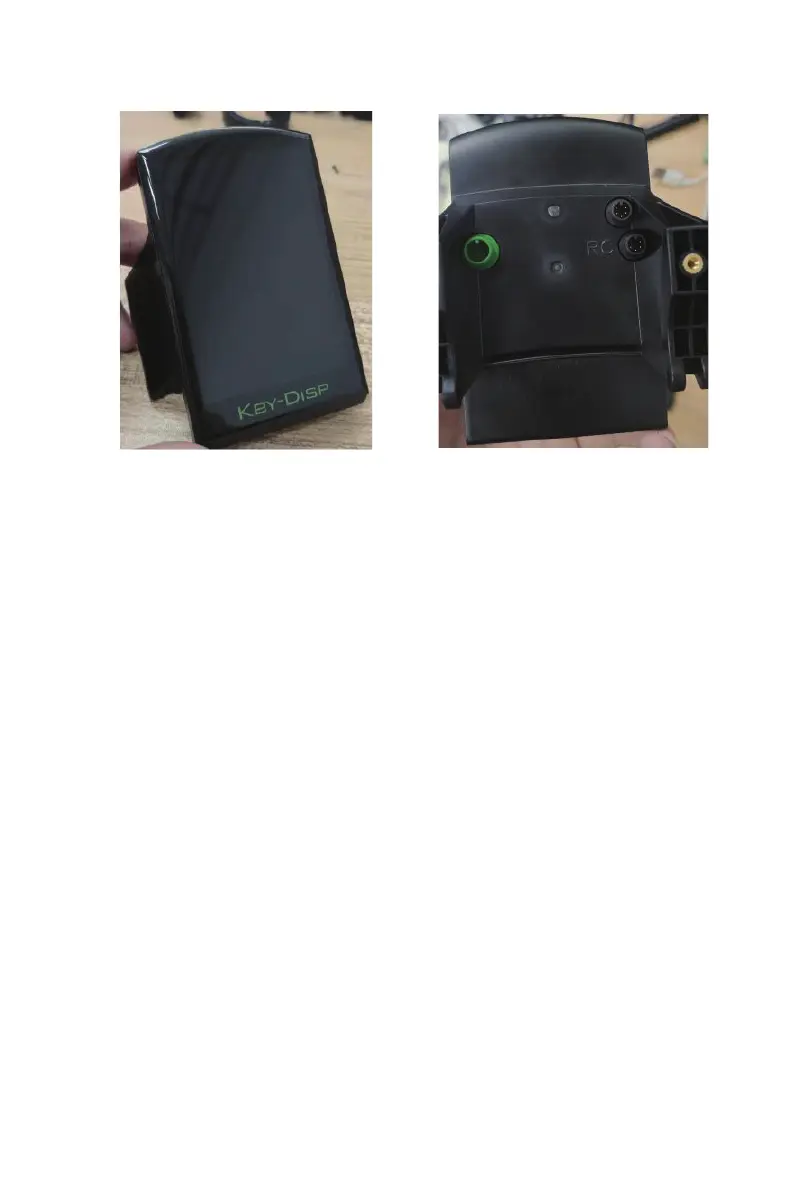

Display Interface
After switching on the E-bike system, the display will show Speed and Trip Distance as default.
Pressing the “i” button to switch between following elements:
Trip (Km) —» ODO (Km) —» Max. Speed (Km/h) —» Avg. Speed (Km/h) —» Time (Min.) .
