Service Manual 9. Disassembly and Assembly
331

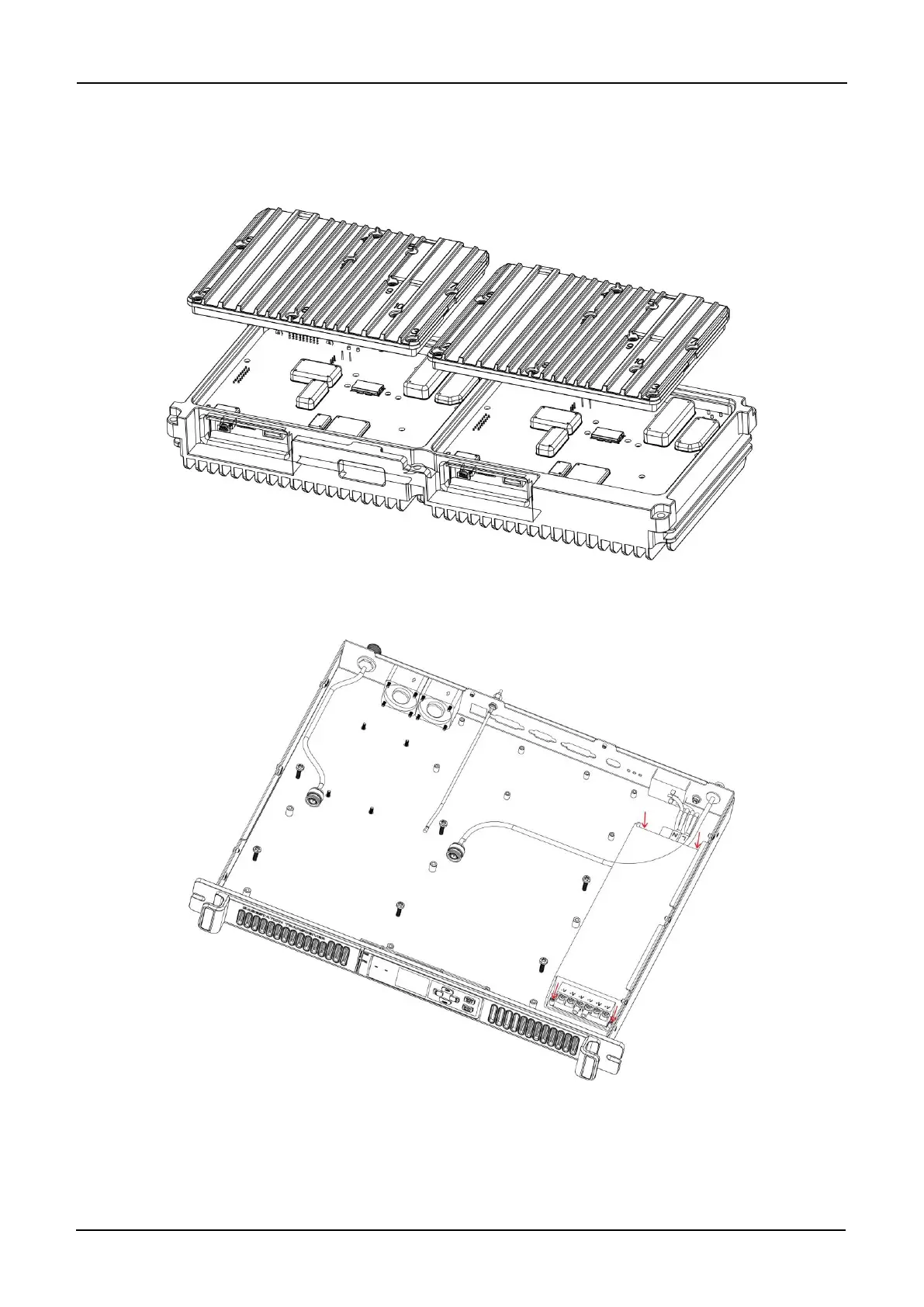

Step 5 Remove the screws on the shielding box for the TX and RX modules and take the TX
and RX PCBs out.
Step 6 Remove the four nuts locking the power module and take this module out.
