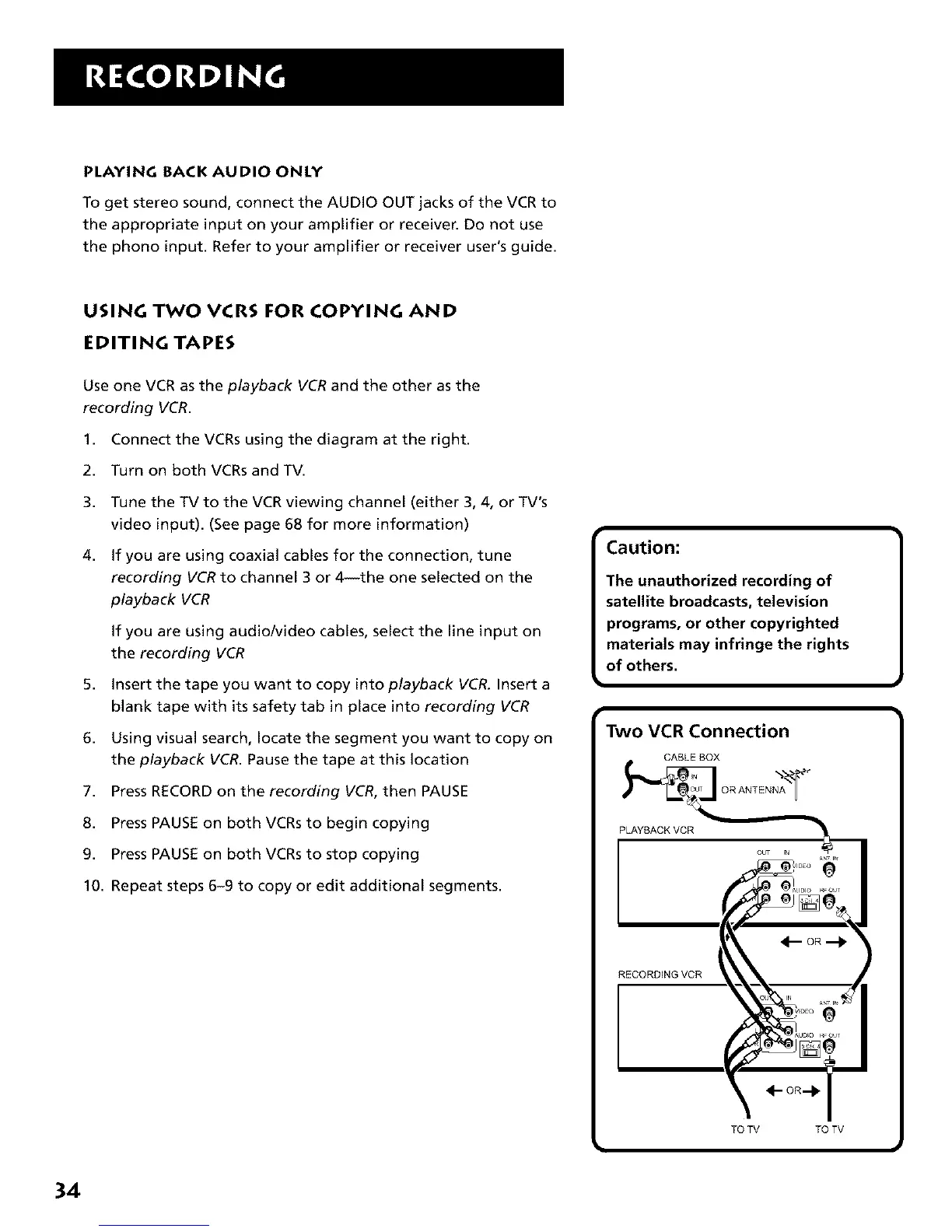

RCA VR646HF

PLAYING BACK AUDIO ONLY
To get stereo sound, connect the AUDIO OUT jacks of the VCR to
the appropriate input on your amplifier or receiver. Do not use
the phono input. Refer to your amplifier or receiver user's guide.
USING TWO VCRS FOR COPYING AND
EDITING TAPES
Use one VCR as the playback VCRand the other as the
recording VCR.
1. Connect the VCRs using the diagram at the right.
2. Turn on both VCRs and TV.
3. Tune the TV to the VCR viewing channel (either 3, 4, or TV's
video input). (See page 68 for more information)
4. if you are using coaxial cables for the connection, tune
recording VCRto channel 3 or 4--the one selected on the
playback VCR
if you are using audio/video cables, select the line input on
the recording VCR
5. Insert the tape you want to copy into playback VCR. Insert a
blank tape with its safety tab in place into recording VCR
6. Using visual search, locate the segment you want to copy on
the playback VCR. Pause the tape at this location
7. Press RECORD on the recording VCR, then PAUSE
8. Press PAUSE on both VCRs to begin copying
9. Press PAUSE on both VCRs to stop copying
10. Repeat steps 6-9 to copy or edit additional segments.
r
Caution:
The unauthorized recording of
satellite broadcasts, television
programs, or other copyrighted
materials may infringe the rights
of others.
I
Two VCR Connection
CABLE BOX
OR ANTENN11 _"
PLAYBACK VCR
RECORDING VCR
]
34
