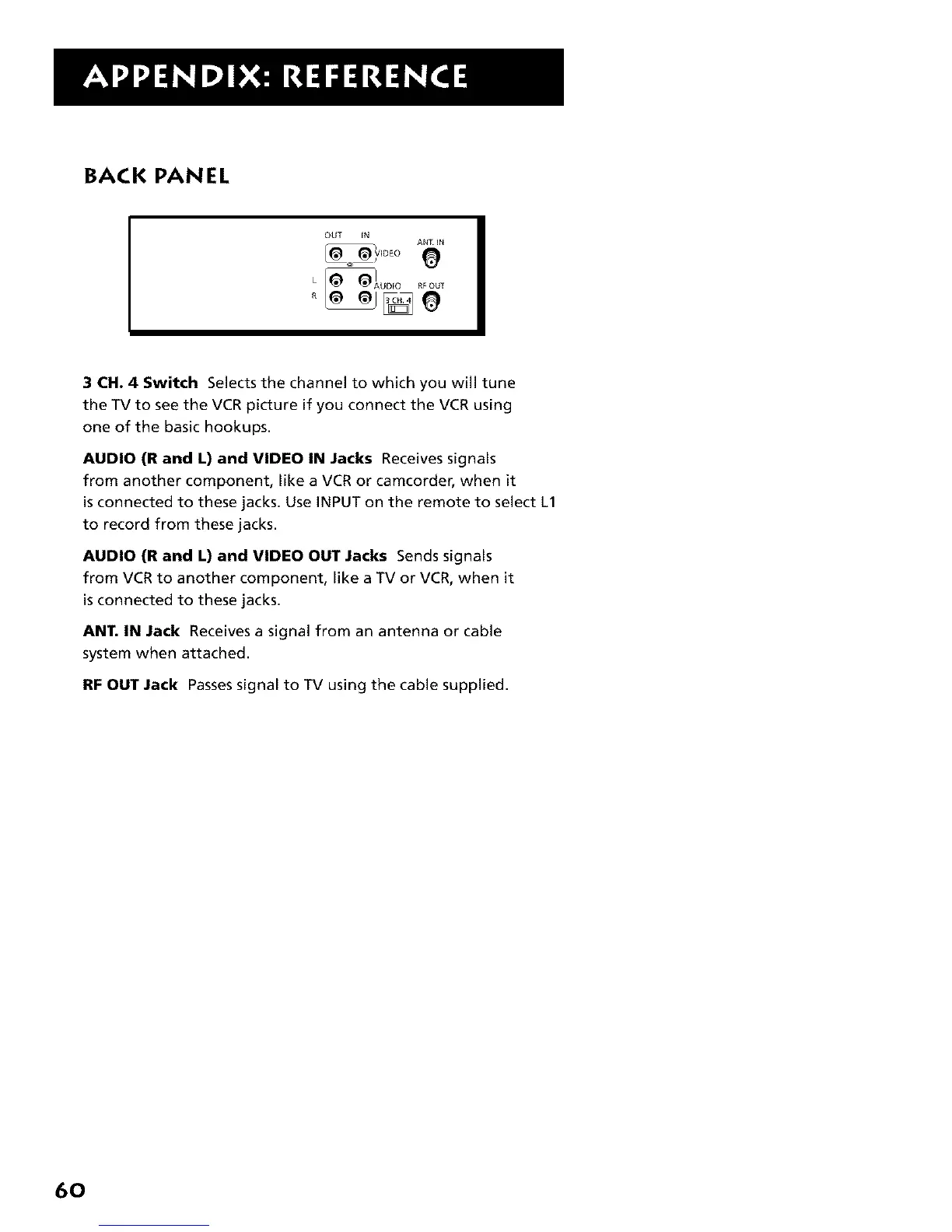

BACK PANEL
OUT iN
ANT _N
v,oEo e
L AUDIO RF OUT
3 CH. 4 Switch Selects the channel to which you will tune
the TV to see the VCR picture if you connect the VCR using
one of the basic hookups.
AUDIO (R and L) and VIDEO IN Jacks Receives signals
from another component, like a VCR or camcorder, when it
isconnected to these jacks. Use INPUT on the remote to select L1
to record from these jacks.
AUDIO (R and L) and VIDEO OUT Jacks Sends signals
from VCR to another component, like a TV or VCR, when it
isconnected to these jacks.
ANT. IN Jack Receives a signal from an antenna or cable
system when attached.
RF OUT Jack Passessignal to TV using the cable supplied.
6O
