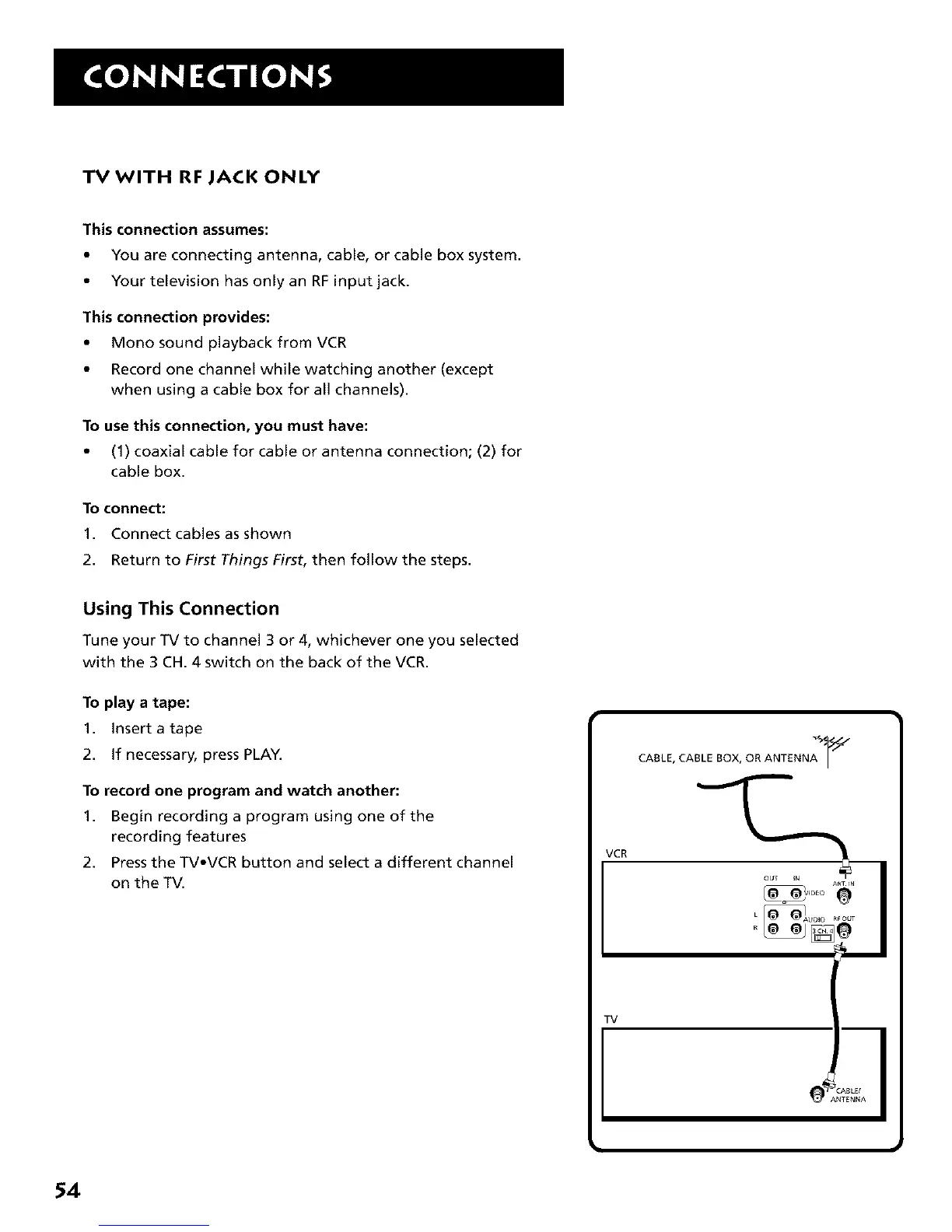

TV WITH RF JACK ONLY
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
This connection provides:
• Mono sound playback from VCR
• Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
• (1) coaxial cable for cable or antenna connection; (2) for
cable box.
To connect:
1. Connect cables as shown
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to channel 3 or 4, whichever one you selected
with the 3 CH. 4 switch on the back of the VCR.
To play a tape:
1. insert a tape
2. if necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the
recording features
2. Press the TV•VCR button and select a different channel
on the TV.
VCR
TV
CABLE, CABLE BOX, OR ANTENNTT _/
OUT I_ A_T IN
I
R
54
