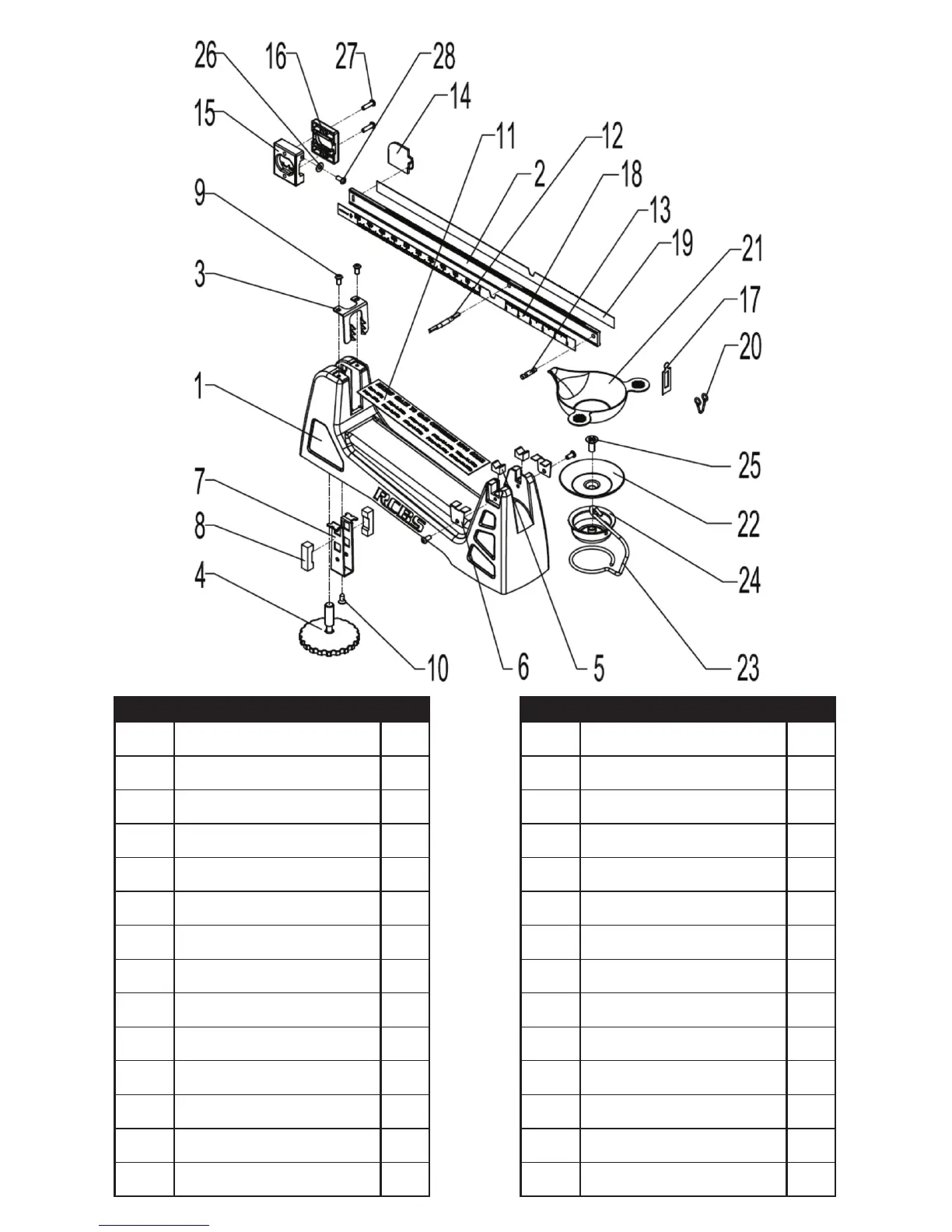

RCBS M500 - Exploded View and Parts List

ITEM DESCRIPTION QTY
1 Base 1
2 Beam 1
3 Pointer 1
4 Leveling Foot 1
5 Ceramic Bearing 2
6 Bearing Retainer 2
7 Magnet Fixing 1
8 Magnets 2
9 Screws (M3x6) 4
10 Screws (ST2.9x8) 1
11 Conversion Label 1
12 Center Pivot 1
13 Front Pivot 1
14 Damping Vane 1
14
ITEM DESCRIPTION QTY
15 Main Poise (Front) 1
16 Main Poise (Back) 1
17 Small Poise 1
18 Graduation Mark (Front) 1
19 Graduation Mark (Rear) 1
20 S/S Shackle 1
21 Scale Pan 1
22 Pan Support (Top) 1
23 S/S Hook 1
24 Weight Holder 1
