RCBS M500 User Manual

9

Themainpoiseconsistsofanaccuratelyadjustedweightthatmovesparalleltothe
axisofthebeam.Itispositionedatweightvaluesbymeansofapawlthatengages
notchesinthebeam.Thepoiserunisfrom0to500grains,withequally-spaced
notchesthatdividethisdistanceinto100equalparts.Eachsubdivisionisequivalent
to5grainsofweight.
Tozerothemainpoise,moveittothepositionwherethepawl,locatedontheright
sideofthepoise,engagestherstnotchontherightendofthepoisetravel.The
poiseindicatorwilllineupwiththe“0”graduation(Photo17).

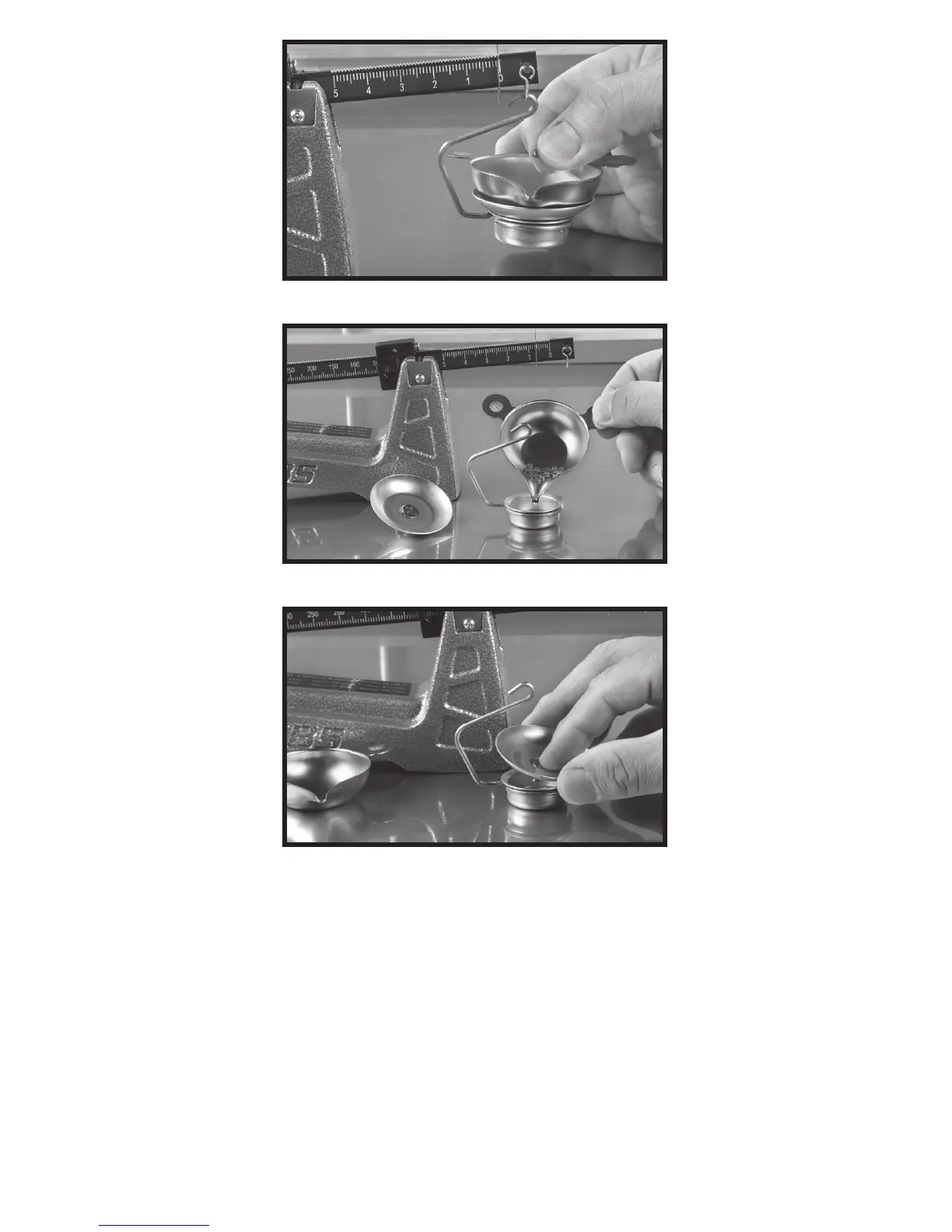

Photo14:Addorremovecalibrationweights
Photo15:Placecalibrationmaterialbackintoweightholder
Photo16:Securepansupporttoweightholder
