TheM500scaleisdesignedforusebybothright-andleft-handedusers.Thescale

panconsistsoftwotabs,amainbeamwithgraduationmarkingsonbothsides,

andasetofreferencepointersoneachside.Photos6and7showtheM500witha

100-grainloadinbotharight-andleft-handedorientation.



(directions below are for right-handed use)

• Placethescaleonaat,levelsurface

• Setinalocationwhichallowsviewingofscaleasneartoeyelevelaspossible;

thiswilleliminateanypotentialparallaxerror

• Placebothpoisesatzero

• Placescalepanonpansupport

• Scaleisbalancedwhenzerolineonmainbeamlinesupwithcenterreference

pointer(Photo8)

• Ifzerolinedoesnotlineupwithcenterreferencepointer,rotatelevelingfoot

clockwisetomovereferencepointerupward,orrotatecounter-clockwisetomove

referencepointerdownward(Photo9)

• Thescaleshouldbezerobalancedbeforeuseandcheckedperiodicallyduring

useformaximumaccuracyandprotectionagainsterror.

NOTE:DONOTMOVESCALEONCEBALANCED.IFSCALEISMOVED,FOLLOW

STEPSABOVETORE-ZEROSCALE.

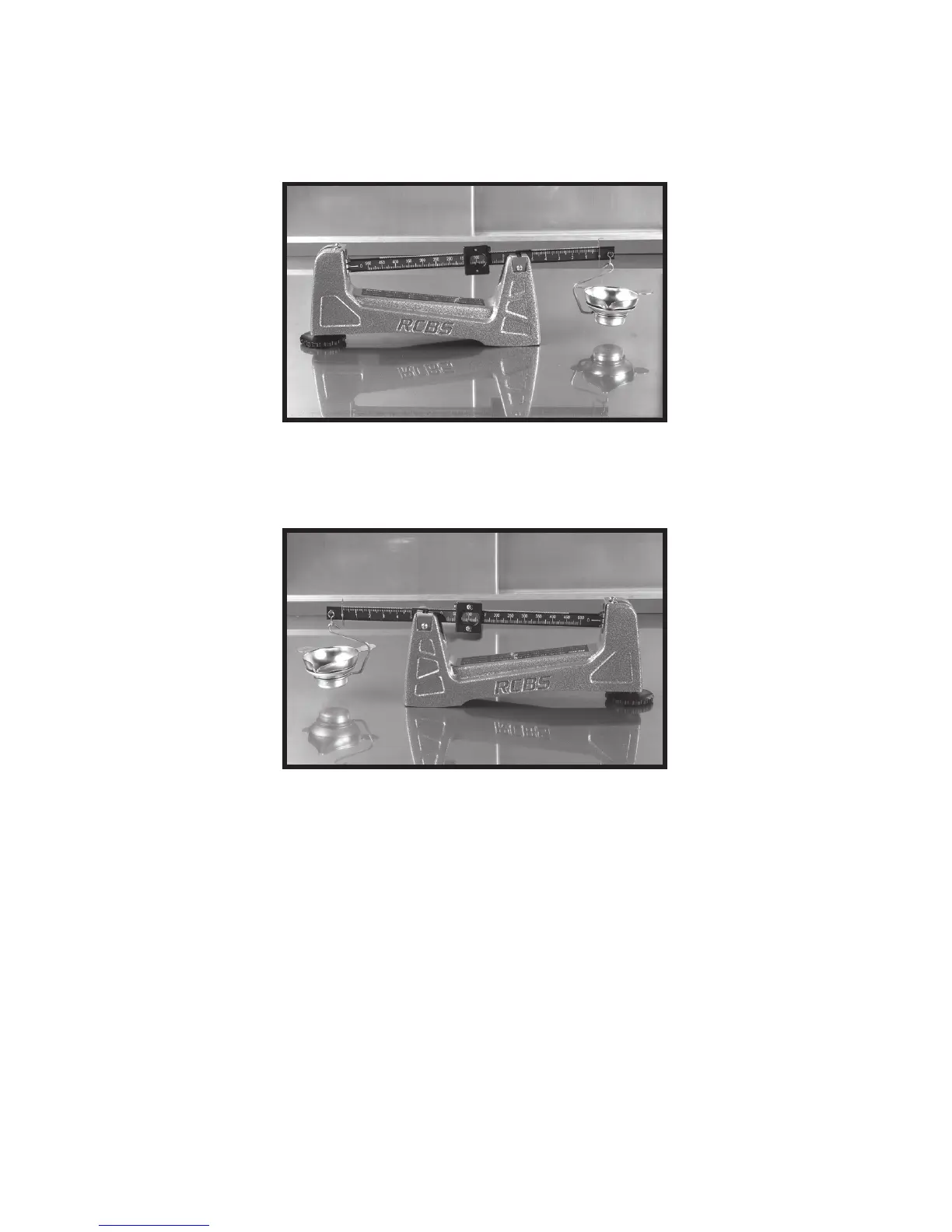

Photo6:Right-handedoperationusing100-grainweight

Photo7:Left-handedoperationusing100-grainweight
