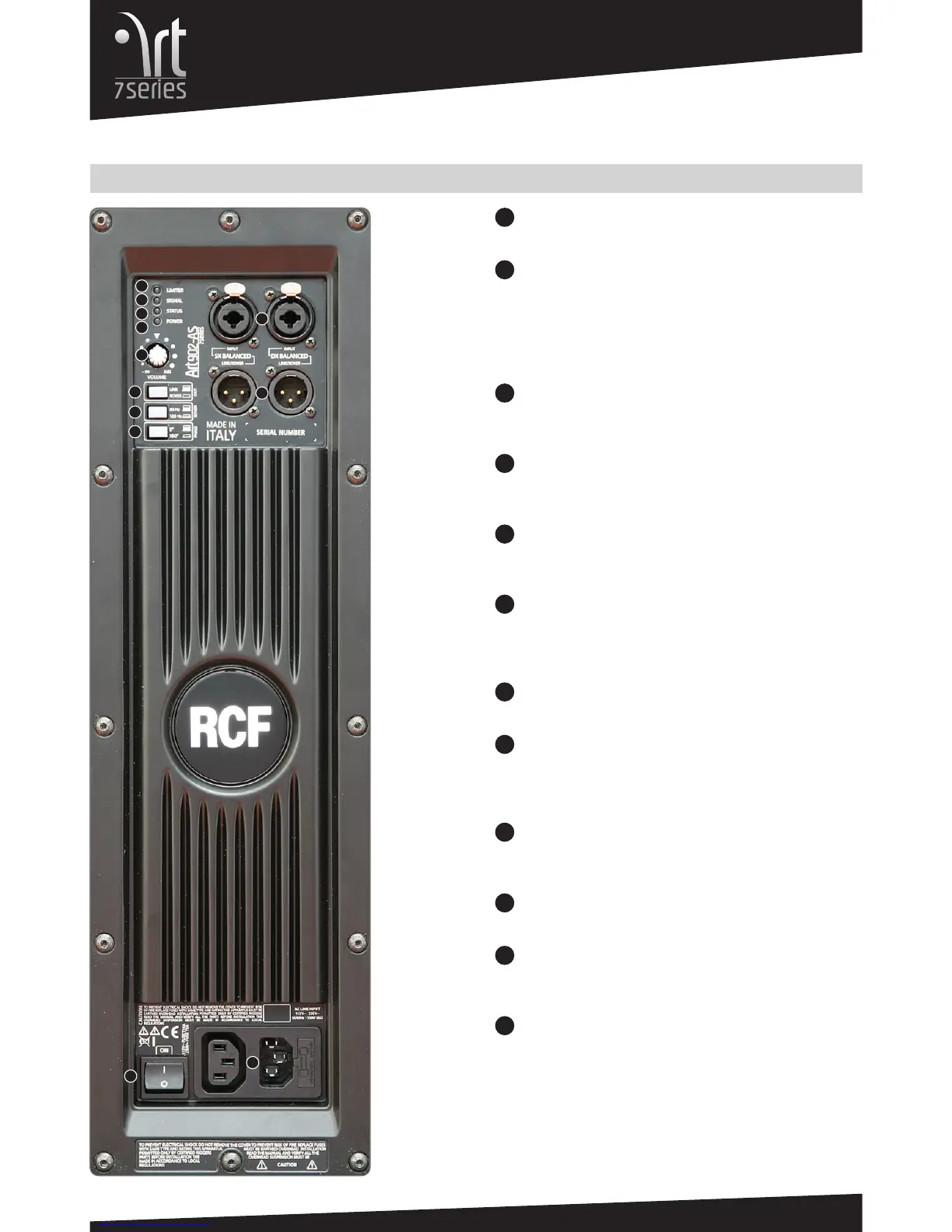

REAR PANEL FEATURES AND CONTROLS
STEREO JACK/FEMALE XLR INPUTS (BAL/UNBAL)
The system accept jack or XLR input connectors.
LIMITER LED
The amplifier has a built in limiter circuit to prevent clipping
of the amplifiers or overdriving the transducers. When the
soft clipping circuit is active the LED blinks orange. It is okay
if the limit LED blinks occasionally. If the LED blinks frequently
or lights continuously, turn down the signal level.
SIGNAL LED
The signal indicator lights green if there is signal present on
the main XLR input.
STATUS LED
The status indicator flash if the temperature protection is
active.
POWER LED
This green led is ON when the speaker is connected to the
main power supply and the ON/OFF is in ON position.
MALE XLR SIGNAL/XOVER OUTPUT
The output XLR connector provides a loop trough for speakers
daisy chaining (or provides a crossover output when the
crossover switch is pushed).
VOLUME CONTROL
Adjust the amplifier volume.
LINK/XOVER OUT SWITCH
The output link is flat when the switch is OFF (the output
signal is the same as the input signal), or is high passed when
the switch is ON (to connect a satellite speaker).
XOVER SWITCH
This switch sets the crossover frequency of the OUTPUT
SIGNAL at 80 Hz or 120 Hz.
PHASE SWITCH
This switch reverse the phase of the output signal.
IEC AC SOCKETS
The IEC AC socket provides IN-OUT connections for the power
cord to the socket and additional power link.
POWER MAIN SWITCH
The power switch turns the AC power ON and OFF.
