RCF HDL 12-AS User Manual

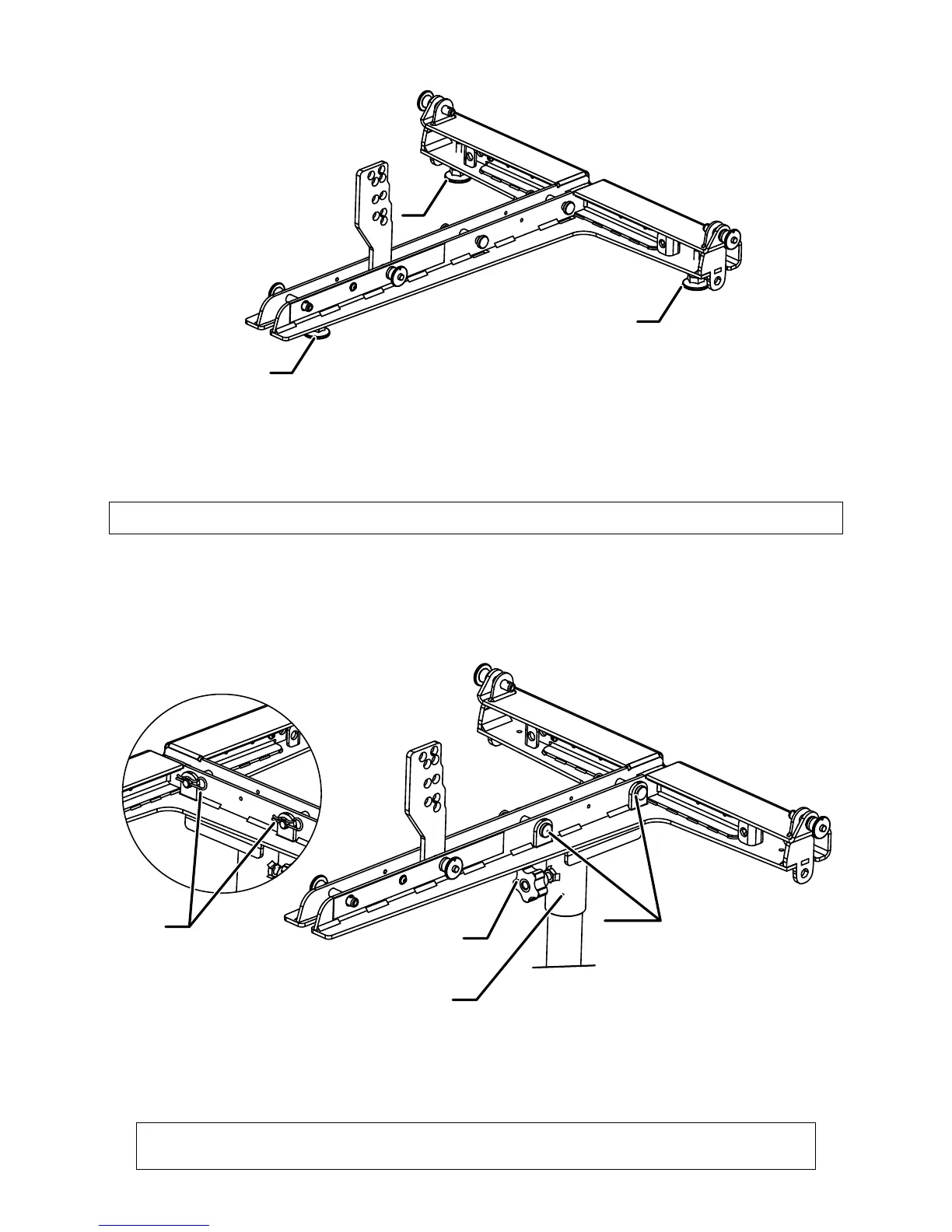

3.3 POLE MOUNTING WITH SUSPENSION BAR
1. Secure the pole mount bracket to the flybar with the linchpins “X” then block them with the cotter pins “R”
2. Block the flybar to the pole by screwing the knob “M”.
3. Assemble the HDL6-A speaker with the same procedure.
R
D
M
X
M
WARNING: ALWAYS VERIFY - THE SYSTEM SOLIDITY IN EVERY CONFIGURATION
- THE POLE PAYLOAD
3.2 GRAOUND STACKING
1. Screw all three plastic feet “P”.
2. Adjust the feet to stabilize the flybar on the subwoofer then block them with thieir nuts to avoid unscrewing.
3. Assemble the HDL6-A speaker with the same procedure.
P
P
P
WARNING: ALWAYS VERIFY THE SYSTEM SOLIDITY IN EVERY CONFIGURATION
