RCF HDL 12-AS User Manual

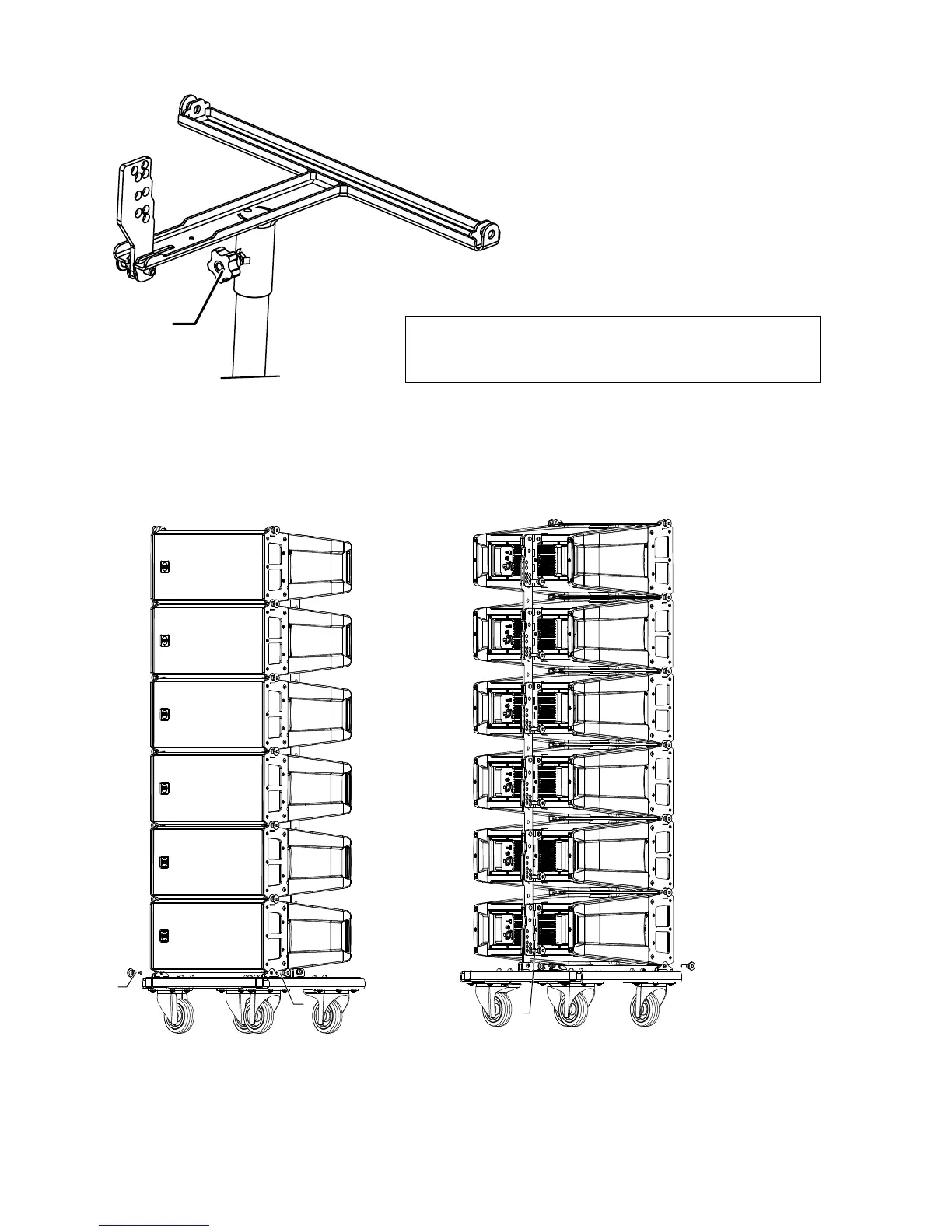

3.4 POLE MOUNTING WITH POLE MOUNT 3X HDL 6-A
1. Secure the front side of the speaker to the kart using the quick lock pins “F”
2. Secure the rear side of the speaker to the kart using the quick lock pins “P”.
Careful: the hole to be used is 0° on the speaker rear bracket.
3. Proceed with the second speaker repeating steps “1” and “2”
WARNING: the kart has been designed to carry up to 6 speakers.
1. Secure the flybar on the pole by screwing the knob “M”
2. Assemble the speakers HDL6-A with the same procedure
used on stacking on sub HDL12-AS
R
D
M
X
M
F
F
P
4. TRANSPORTATION:
POSITIONING THE SPEAKERS ON THE KART
WARNING: ALWAYS VERIFY
- THE SYSTEM SOLIDITY IN EVERY CONFIGURATION
- THE POLE PAYLOAD

RCF HDL 12-AS Specifications

General

Brand	RCF
Model	HDL 12-AS
Category	Subwoofer
Language	English
