Angles manual changing
english
18

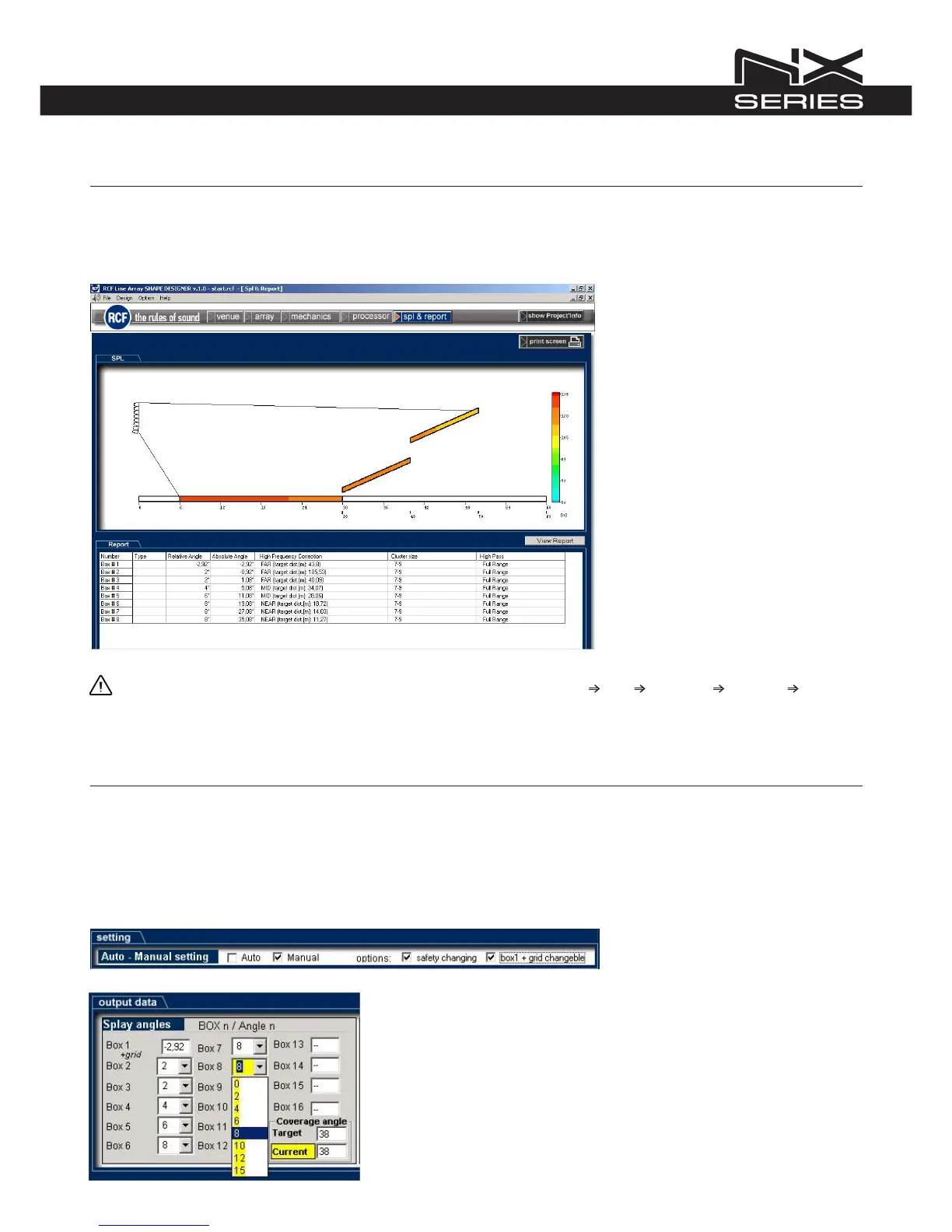

SPL & REPORT PAGE
- On-axis aiming angle for each enclosure as a difference from 0° horizontal
- Various angles and throw distances calculated from the venue’s dimensions
- DSP preset configuration
- SPL representation on the audience area
WARNING: It is possible to display different pages only IN SEQUENCE (venue array mechanics processor spl &
report, and back), in order to be sure that all pages will be shown to the user, including the one regarding mechanics.
MANUAL MODE
RCF Shape Designer works in either of two basic ways:
- AUTOMATIC MODE (default setting): The RCF Shape Designer will select the optimum enclosure splays, array aiming angle, fly-bar pick
point and DSP preset configurations.
- MANUAL MODE: This provides a partial control over the array’s configuration. The enclosure splays can be increased with a progression
of 2° steps for each adjacent speaker, in order to maintain a spiral array configuration. Then array aiming angle, and fly-bar pick point can
be entered manually by switching on Box1 + grid changeable and MANUAL H flags.
Array window: Manual splays setting
NXL 23-A
NXL 23-A
NXL 23-A
NXL 23-A
NXL 23-A
NXL 23-A
NXL 23-A
NXL 23-A
