RCF nx series User Manual

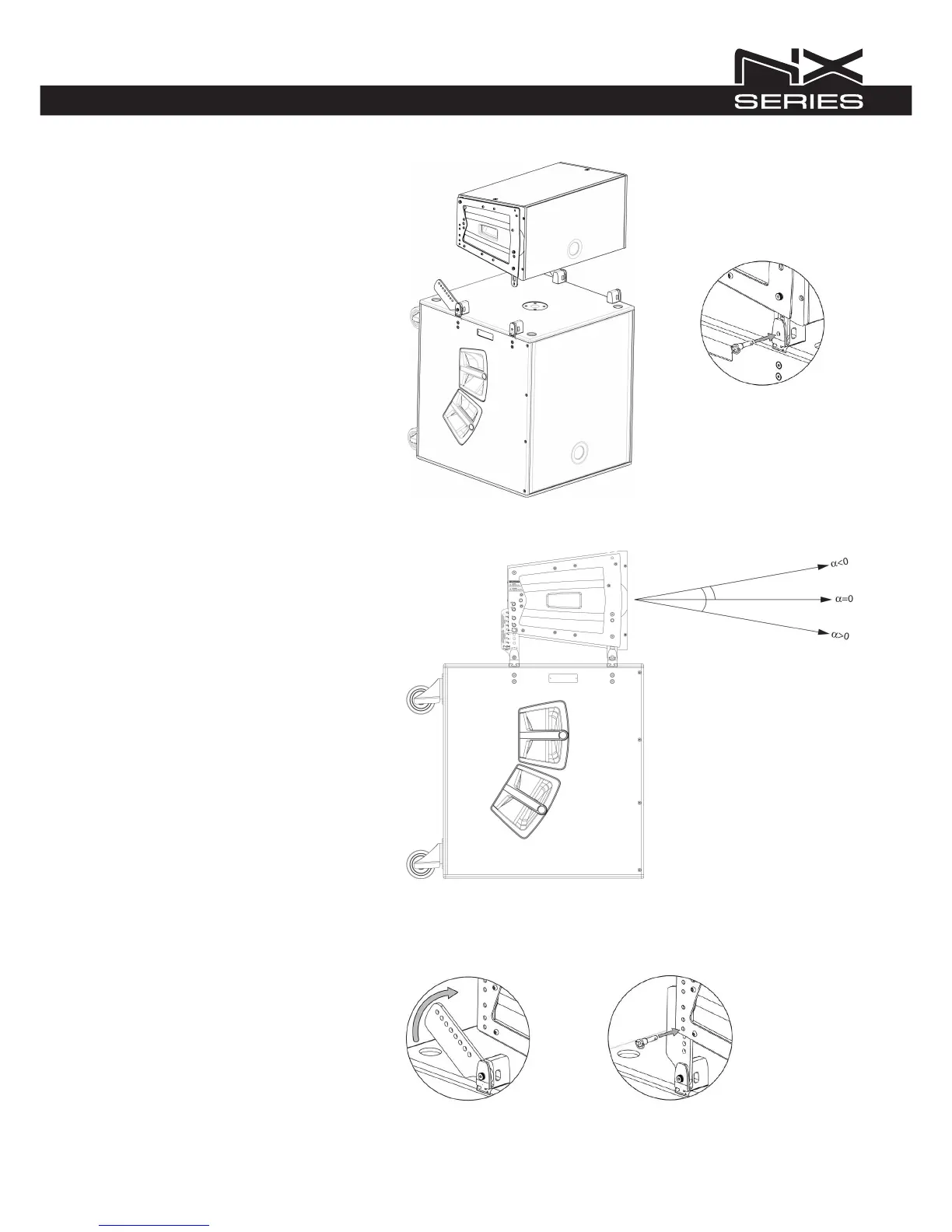

3) Connect front bracket of the first NX
L23-A cabinet using 2 quick lock pins.
english
22
5) The bottom box in a stacked array can
be tilted to obtain proper coverage patterns
(from +10° to -7,5°). Reverse and connect
the 2 rear AC STACKING / NX L23-A bracket
to the first enclosure using the hole for the
proper angle and quick lock pins.
Add NX L23-A cabinets one by one as
indicated for flown configurations. Up to
four NX L23-A enclosures can be stacked
and interlinked using the standard NX
rigging components and the NX subs as
ground support.
4) The baffle of the bottom box in a stacked
array does not necessarily have to be parallel
to the stage or the array frame. It can be
tilted up or downward if desired. In this way
arced arrays can be readily created from a
ground stack position.
