THE TTL33-A FLY BAR
The TTL33-A system must be suspended
using the RCF TTL33-A fly bar

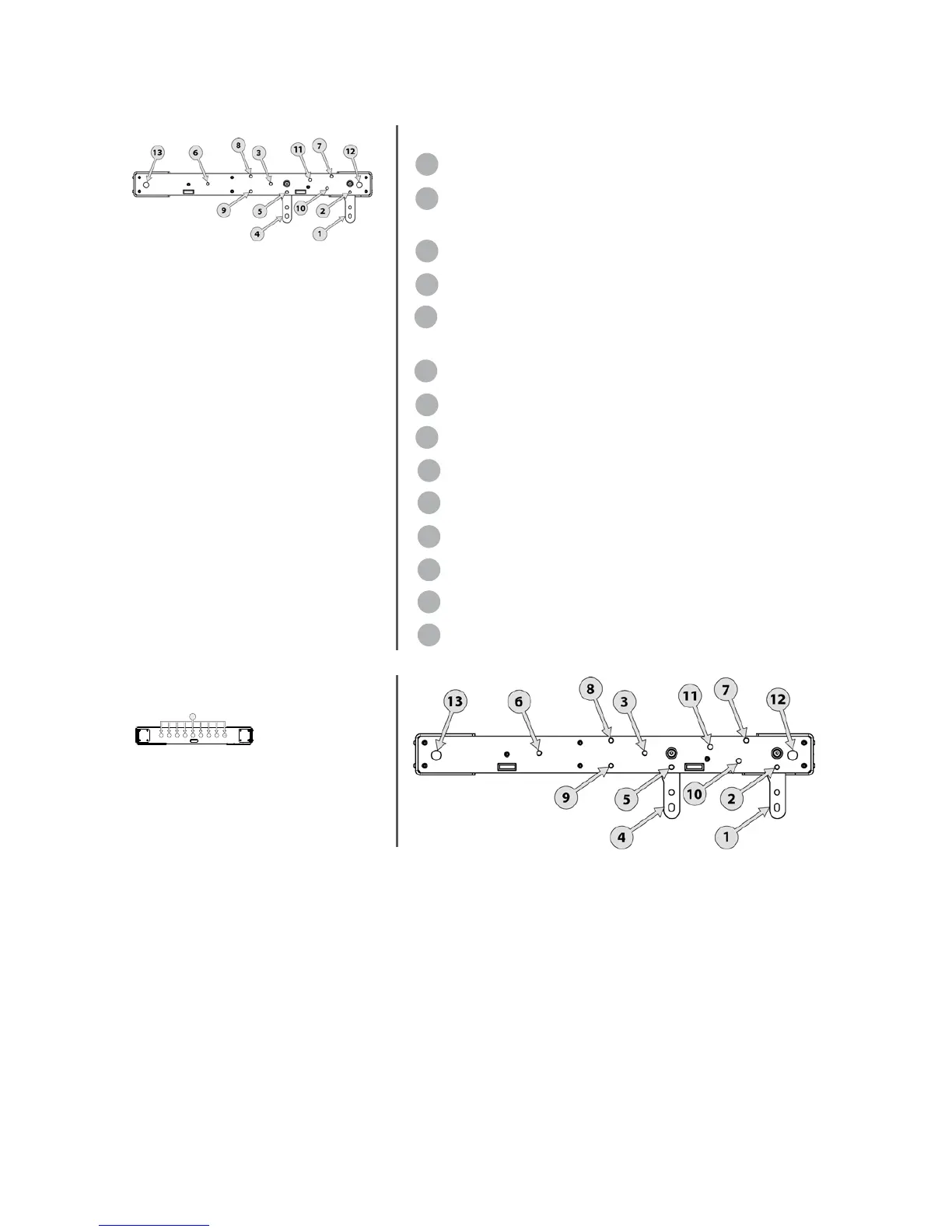

THE TTL33-A FLY BAR FEATURES:
1 FRONT FLYING BRACKET - Front mounting
2 QUICK LOCK PIN HOLE - Front mounting (to be used to lock
the front bracket before installation)
3 REAR BAR HOLE - Front mounting
4 FRONT FLYING BRACKET - Rear mounting
5 QUICK LOCK PIN HOLE - Rear mounting (to be used to lock
the front bracket before installation)
6 REAR BAR HOLE - REAR MOUNTING.
7 FRONT STACKING POINT.
8 REAR STACKING POINT - UPPER POSITION.
9 REAR STACKING POINT - LOWER POSITION.
10 FRONT BRACKET - TRANSPORT POSITION HOLE.
11 REAR BRACKET - TRANSPORT POSITION HOLE.
12 CORNER DOUBLE-MOTOR PICK-UP POINT.
13 CORNER DOUBLE-MOTOR PICK-UP POINT.
14 12 CENTRAL PICK-UP POINTS.
10
22
