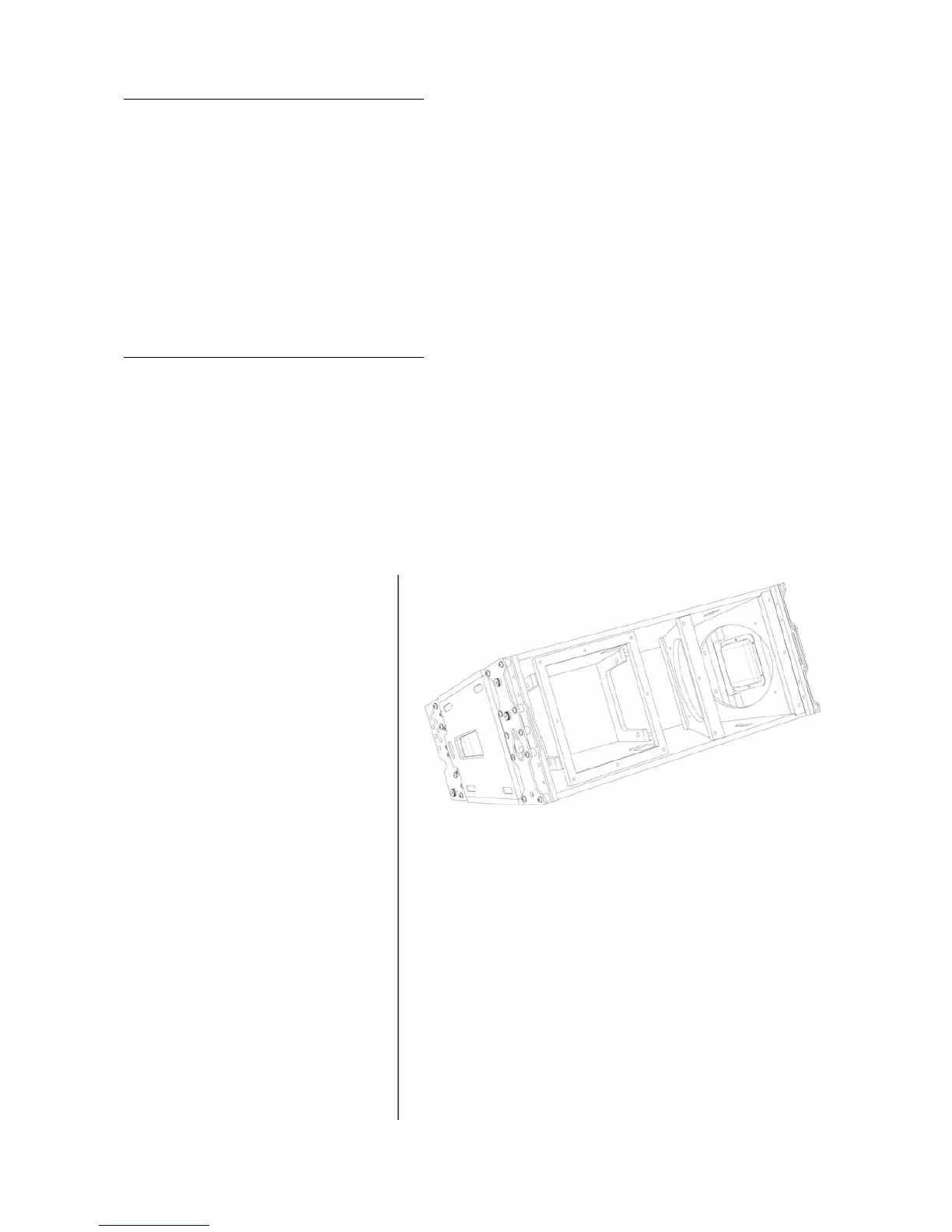

The TT+ line arrays cabinet is in baltic birch
plywood, coated with high resistance epoxy
paint. The wood quality, the small thickness
in conjunction to a proper internal bracing,
the metal structure design make this cabinet
very light and robust.
The mechanical suspension and orientation
system is in high quality steel, very precise and
easy to use. All the mechanical parts are laser
cut, machined and precision assembled with
metric screws and threat locker.
The design guarantees a precise
inclination of each module from 0° up
to 15° in small 2° steps for TTL33-A /
TTL31-A and from 0° to 7° in steps of 1°
for TTL55-A.
The system is very light and can be moved
or transported from one or two people
using the side handles or rear handles (on
the amplifier sides).
The suspension system is designed to have a
proper safety factor (configuration dependent).
Using the “RCFShape Designer” software it
is very easy to understand safety factors and
limits for each specific configuration.
CABINET AND MECHANICS
THE TTL33-A AMPLIFICATION SECTION FEATURES:
• 750 watt switching power supply module
• 500 watt low frequency digital amplifier module
• 500 watt midrange digital amplifier module
• 250 watt high frequency digital amplifier module
• extra capacitor bus able to sustain the full voltage for over 100 ms burst signals
The total available power supply power is 750 watts and can be distributed to the 3 final amplifier sections. Each amplifier section
has a very high maximum output power capability in order to provide, when necessary, maximum output bursts in a specific
frequency range. A small fan, speed controlled, guarantee the air circulation inside the amplifier in the most demanding situations.
THE TTL31-A AMPLIFICATION SECTION FEATURES:
• 750 watt switching power supply module
• 500 watt low frequency digital amplifier module
• 250 watt high frequency digital amplifier module
• extra capacitor bus able to sustain the full voltage for over 100 ms burst signals
