RCO R-COD 500 - Recessed Box Mounting

R-COD 500 & R-COD 500 IR MOUNTING
6

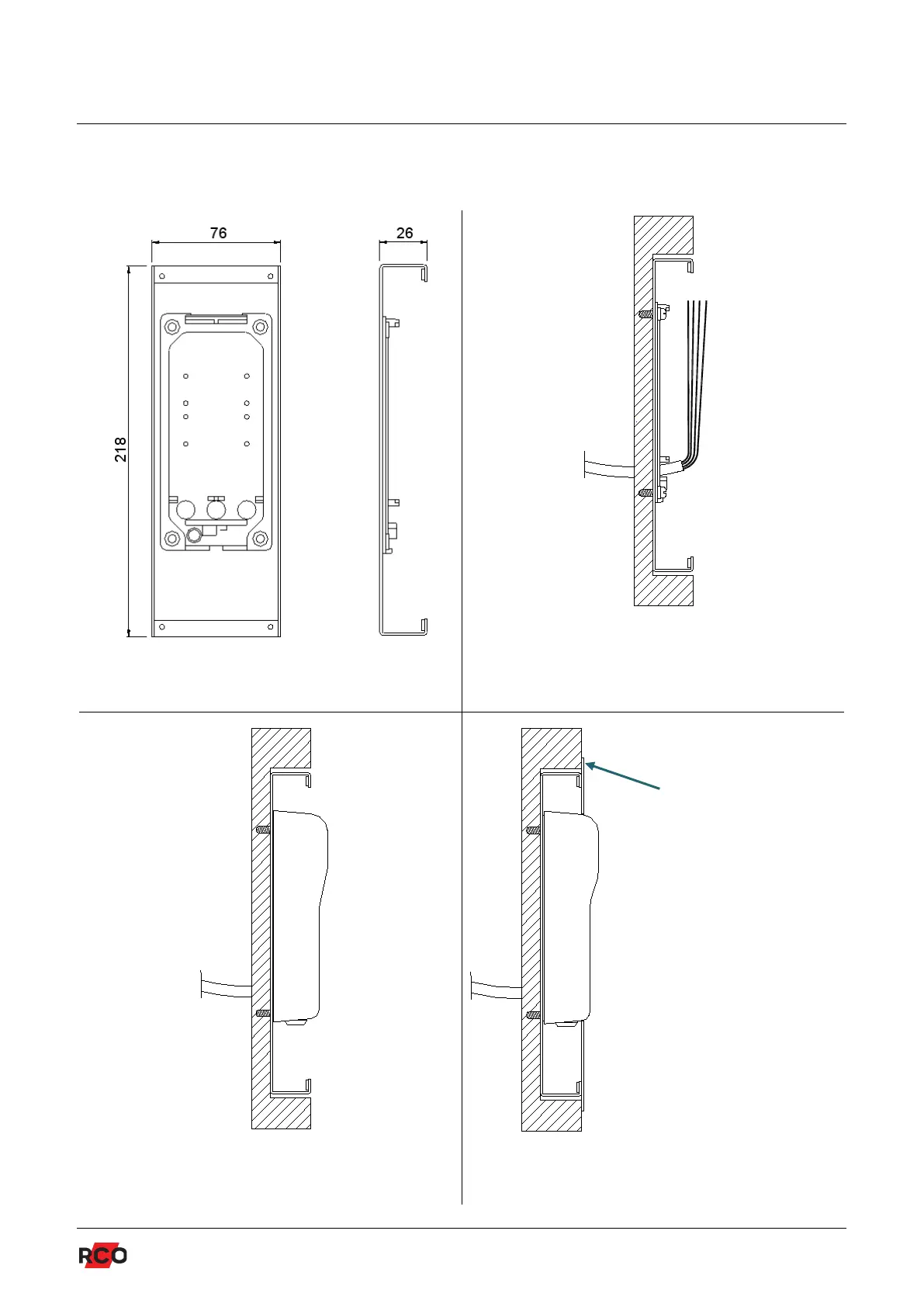

Mounting with recessed box
1. Mount the recessed box and the
unit’s mounting plate (4 screws).
For best protection from vandalism,
mount the recessed box as close to the
surface (or spacers) as possible.
2. Connect the terminal block.
Lock the reader into place.
3. Mount and affix the frame with the
screws provided.
The frame measures
94 x 239 mm
