R-COD 500 & R-COD 500 IR
CONNECTION
7

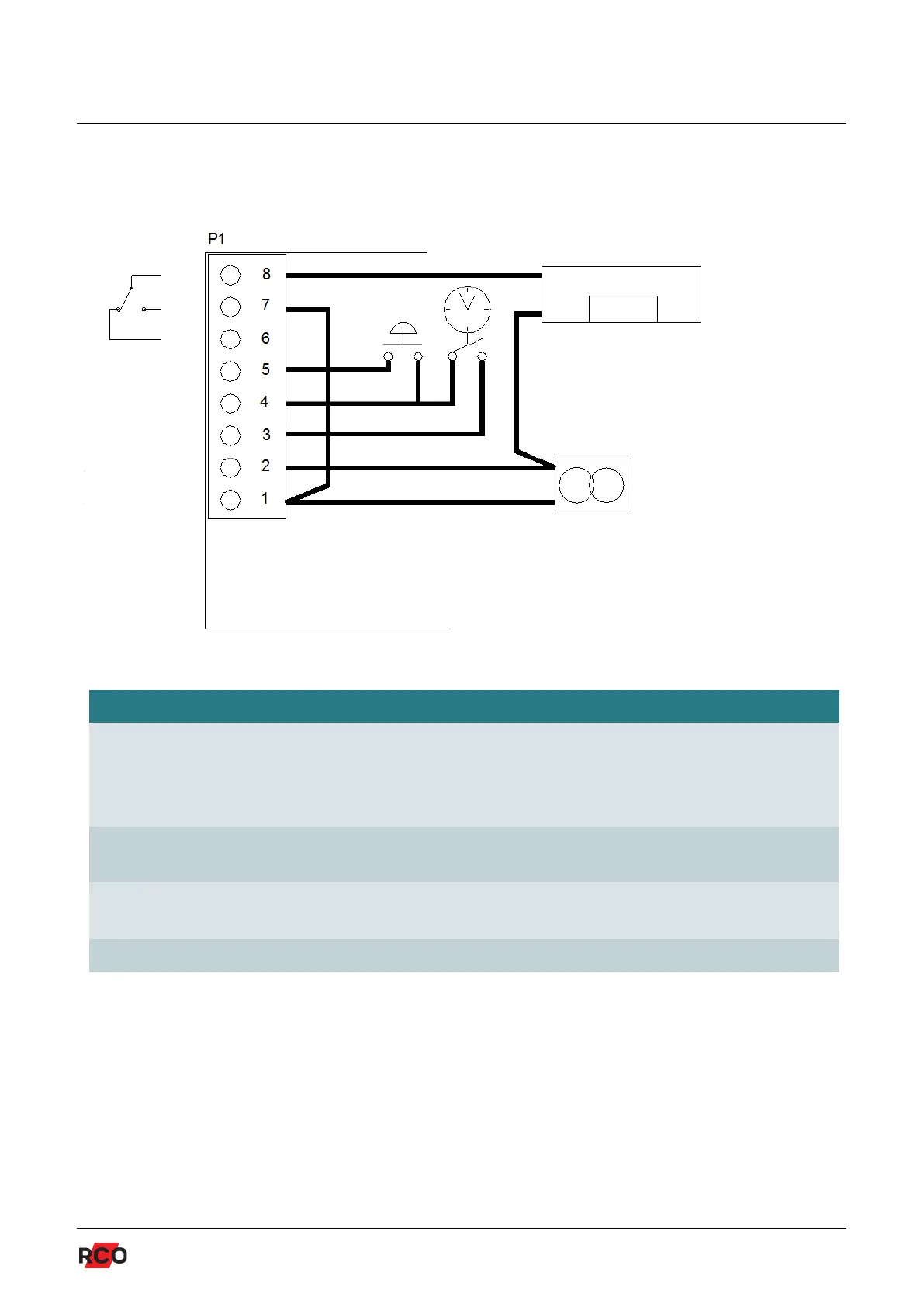

Connection
Marking Function
Relay (P1/6,7,8) Can be switched breaking (NC) or closing (NO). In the above
example, the strike plate is activated when a valid access code
or IR code is entered/received, and the connection between
pins 6 and 8 is broken.
Button (P1/5) Connecting terminals 4 and 5 activates the strike relay for the
specified door opening time.
Time control (P1/3) When pins 3 and 4 are
not
connected, the access codes in code
positions 5–8 will not work.
AC/DC (P1/1,2) Power supply.
NO
NC
Common 0V
Time control
AC/DC
AC/DC
