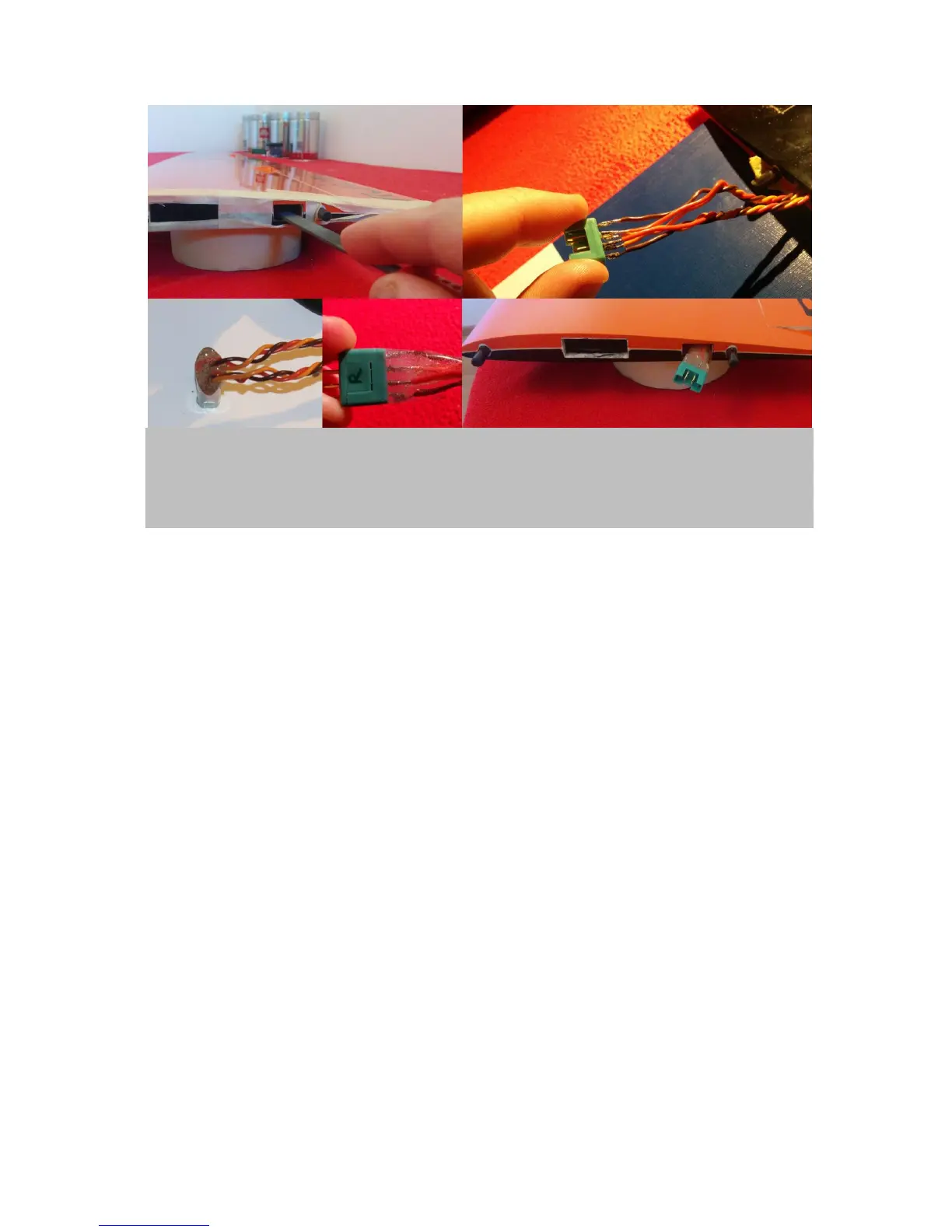

Figure 11. Mount the wing sided multiplex plugs: A little tuning of the servo cable outlets is needed to
ensure that the plugs can move freely in there (upper left). Solder the cables of both wing servos onto the
male plug (upper right). Next, wrap some transparent tape around the plug and cables and fill the resultant
cavity with 5min epoxy (lower left). After the epoxy has hardened you have got a perfetly isolated and
protected connetion (lower middle), and can be freely moved around in the cable outlet (lower right).
If cable trees are mounted and plugs are connected at the wing bases it is time to fix the servos in
the servo bays. This step is really easy because everything that is needed is readily prepared. See
figure 12.
