RCS TBZ48 Installation Guide

Setting the Heating or Cooling Temperature Setpoint
Setpoint Change
To change the setpoint, press the Up or Down arrow buttons. The screen will switch to the
setpoint change screen (as above) and show the current setpoint of the current heating or
cooling mode. Adjust setpoint temperature up or down with the arrow buttons.
Note!
When in the Setpoint Change screen, pressing the MODE button will switch
the setpoint being displayed between the Heat and Cool setpoints.
Setpoint Push: The cooling setpoint cannot be set below the heating setpoint. The
thermostat will “push” the heating setpoint lower if the cooling setpoint is set below the
current heating setpoint. A 3 degree separation is maintained between the heating and
cooling setpoints. The same is true for raising the heating setpoint above the cooling
setpoint. The thermostat will “push” the cooling setpoint up to maintain the 3 degree
separation.
Lower Temperature
Raise Temperature

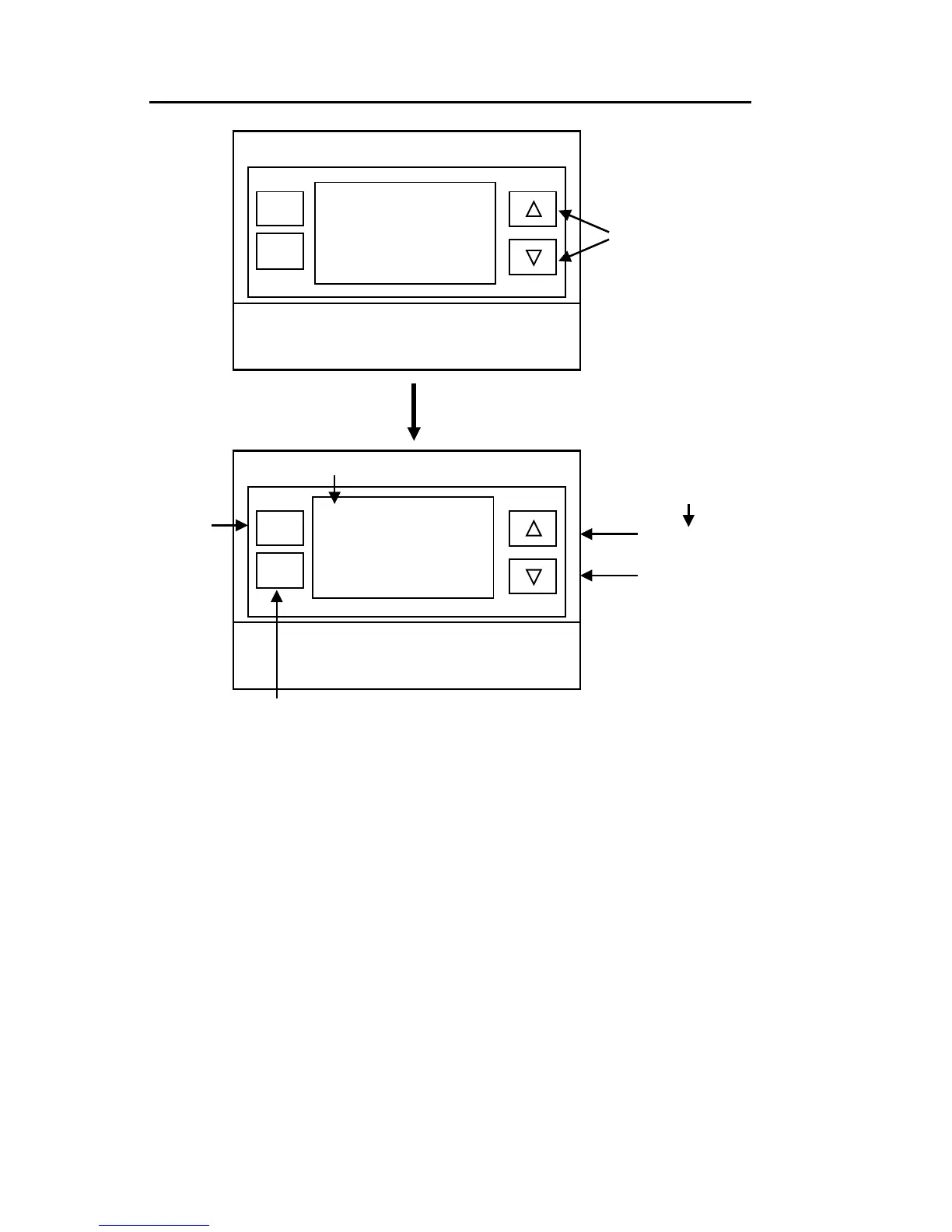

Press either Up or Down
arrow
button to go to the
Setpoint Change screen
Setpoint Change screen
Press “Done” (FAN button) to set the setpoint and exit back to the main
thermostat screen or wait for the screen to automatically time out.
Press the Up or Down arrow
buttons to set the desired
temperature setpoint
Pressing the Up or Down
buttons will change the
setpoint 1 degree. Press and
hold the button to ramp the
setpoint.
Setpoint being changed
Press MODE
button
to change
from the heat
setpoint to the
cool setpoint
72H 80C
7
Off
Auto
MODE
FAN
Set to
7
Heat
Done
MODE
FAN
DCN: 140-02121-06 Page 14
