Thermostat Setup
The thermostat must be setup for the correct system type and configuration of the HVAC
system for proper operation.
Preset HVAC System settings
The thermostat is preset for the following typical HVAC system configuration:
• HVAC system type: Standard gas/electric
• HVAC fan type: Gas heat
• HVAC heating stages: one
• HVAC cooling stages: one
If the thermostat is installed on this type HVAC system, the System
setup does not need to be changed.
If installed on a Heat Pump HVAC system or any HVAC configuration other than the preset
settings, change the System settings in the SYSTEM setup menu to match the HVAC
system.
Changing the HVAC system setup

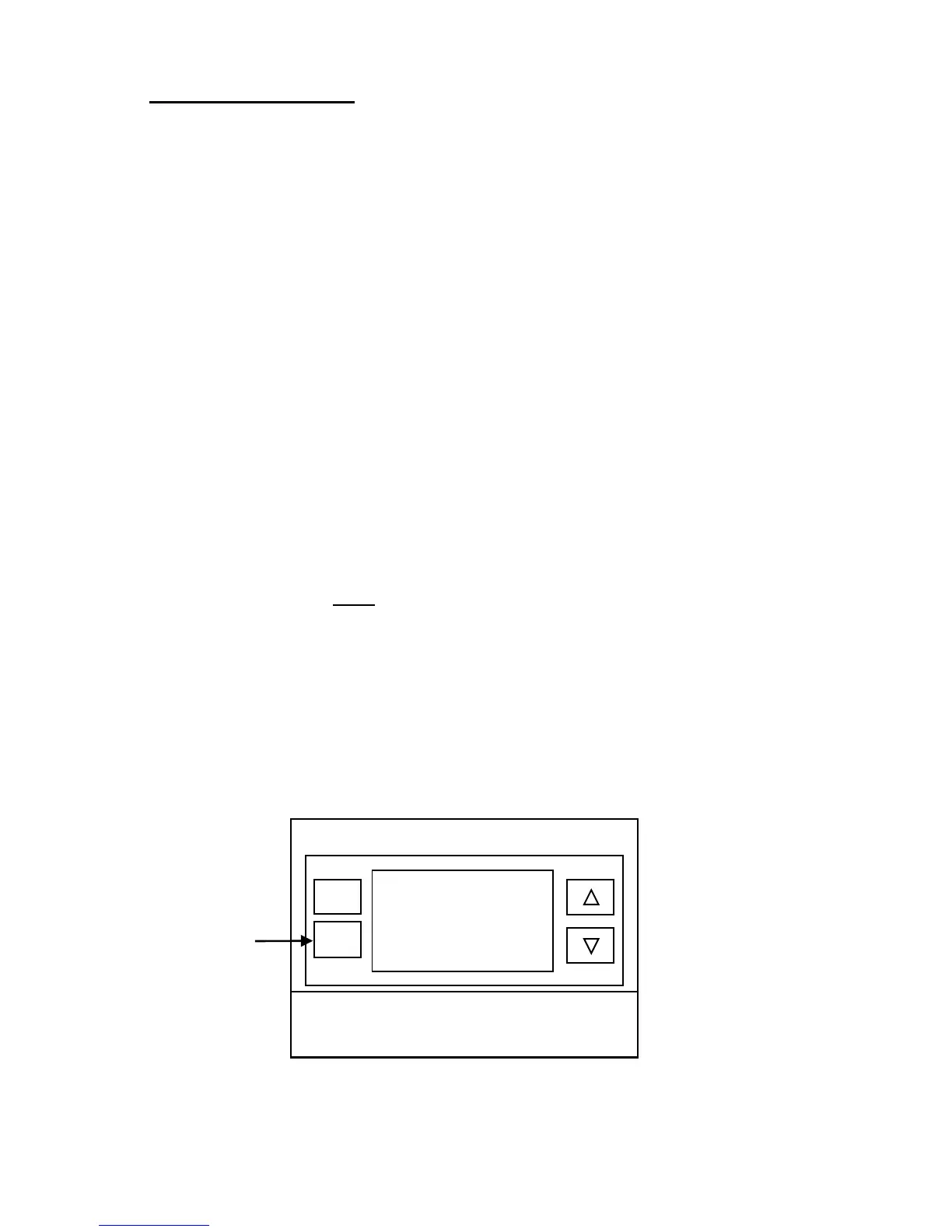

The thermostat normally displays the Thermostat Main Control Screen. To change the
thermostats HVAC system settings, select the Menu Screen and then select the SYSTEM
menu. Follow instructions below to access the SYSTEM menu.
Note: To conserve battery life, the thermostat backlight turns off after a short time of no
activity. The first press of any button turns on the backlight (but does not initiate any
action). Press the button again to initiate the action desired. If the backlight is already on,
button presses work with the first press.
Thermostat Main Screen
The thermostat Main screen shows the basic thermostat settings and controls. It allows
you to set the temperature setpoints and the operating modes of the HVAC system. To
change the thermostat setup and other user options, first select the thermostat Menu
screen.
