DCN: 141-01773-02 1/19/11
22
Main Menu - Thermostat Info
The Thermostat Info screen displays the current configuration of the Z-WAVE Thermostat. This
information is useful for quick check of firmware versions and HVAC system setup. It also shows the
Zwave network setting.
Thermostat information displayed is:
• Thermostat - Model and firmware version number.
• Z-Wave Settings - ZWave Firmware version, ZWave Node ID, ZWave Home ID
• System Type - Standard or Heat Pump HVAC system
• Fan Type – if HVAC type = Standard: Gas or Elect
OR
• Changeover – if HVAC type = Heat Pump: Changeover with cool or changeover with heat.
When finished viewing this screen press the Done button to return to the main Menu screen or wait for
screen to timeout.

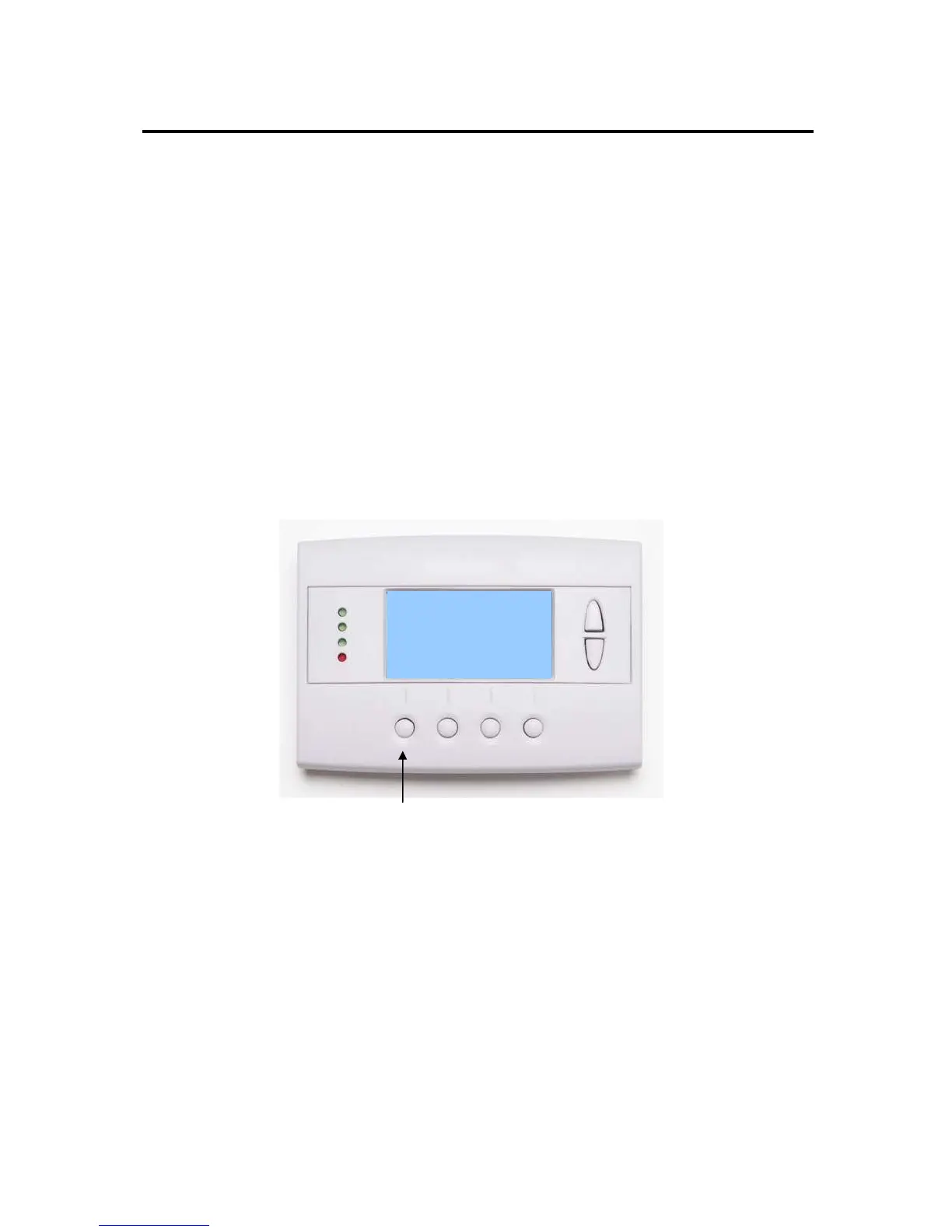

Thermostat Info Screen
