INSTALLATION INSTRUCTIONS (continued)
23

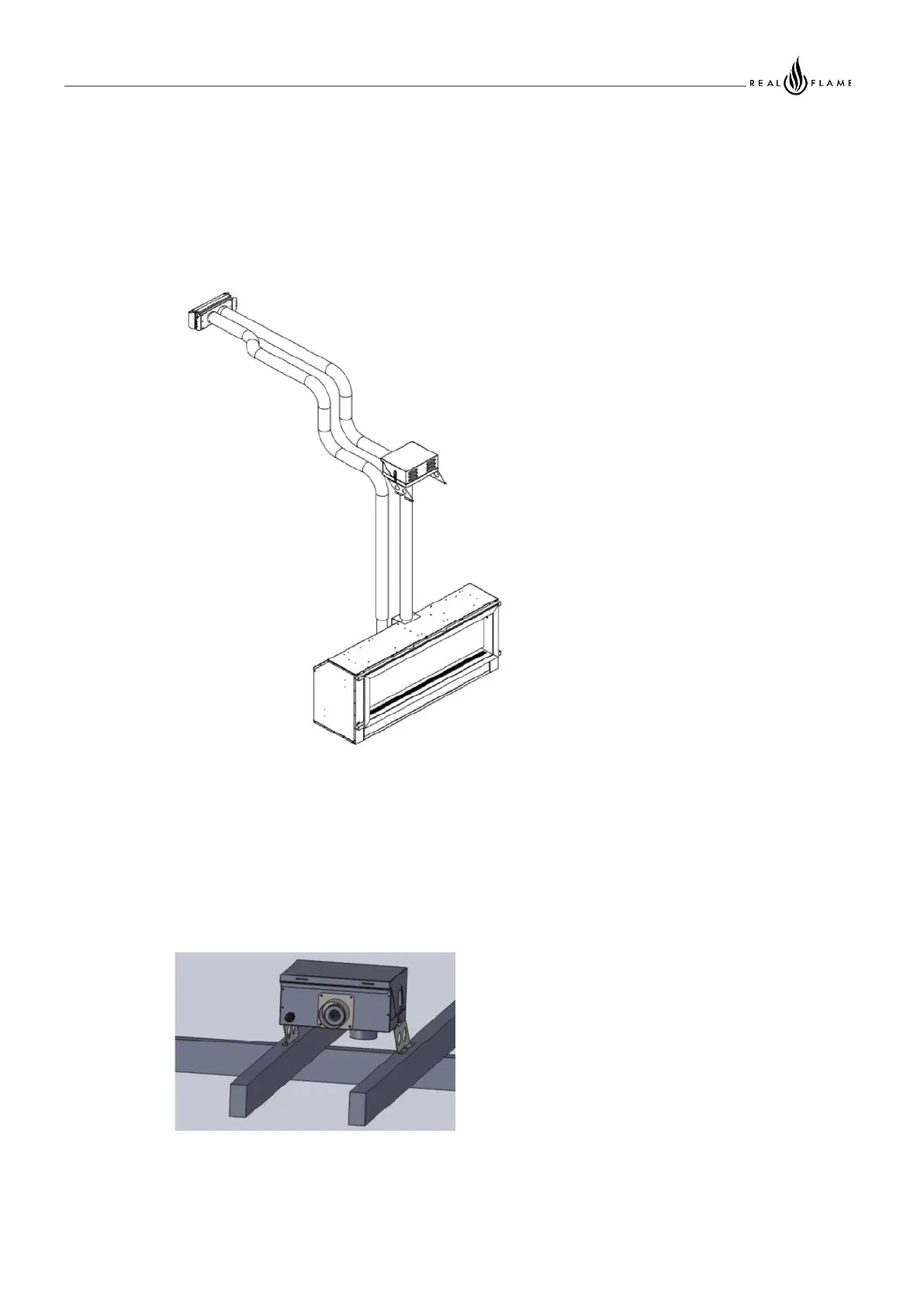

SETUP WITH INTERNAL FAN MODULE WITH WALL TERMINATION – MID FLUE
MOUNTED
Maximum 3m flue length – total 3 bends (Intake flue- 4 bends allowed)
Wall termination - same as appliance mounted wall termination
1. Wall terminal must be installed with clearances as specified by AS5601.1 Clause 6.9.3
2. Run exhaust flue and air intake flue as required – Maximum total run 3m per flue. Flues can
be run next to each other. Maintain clearances to combustibles.
3. Mount fan controller in the required location. (Access to the fan module is required for
servicing, if the fan module is located inside a boxed frame, allow a 450 x 450 access panel).
4. Connection to fan module to appliance
Run flue from appliance to bottom entry on fan module.
Support flue with brackets as required
