INSTALLATION INSTRUCTIONS (continued)
32

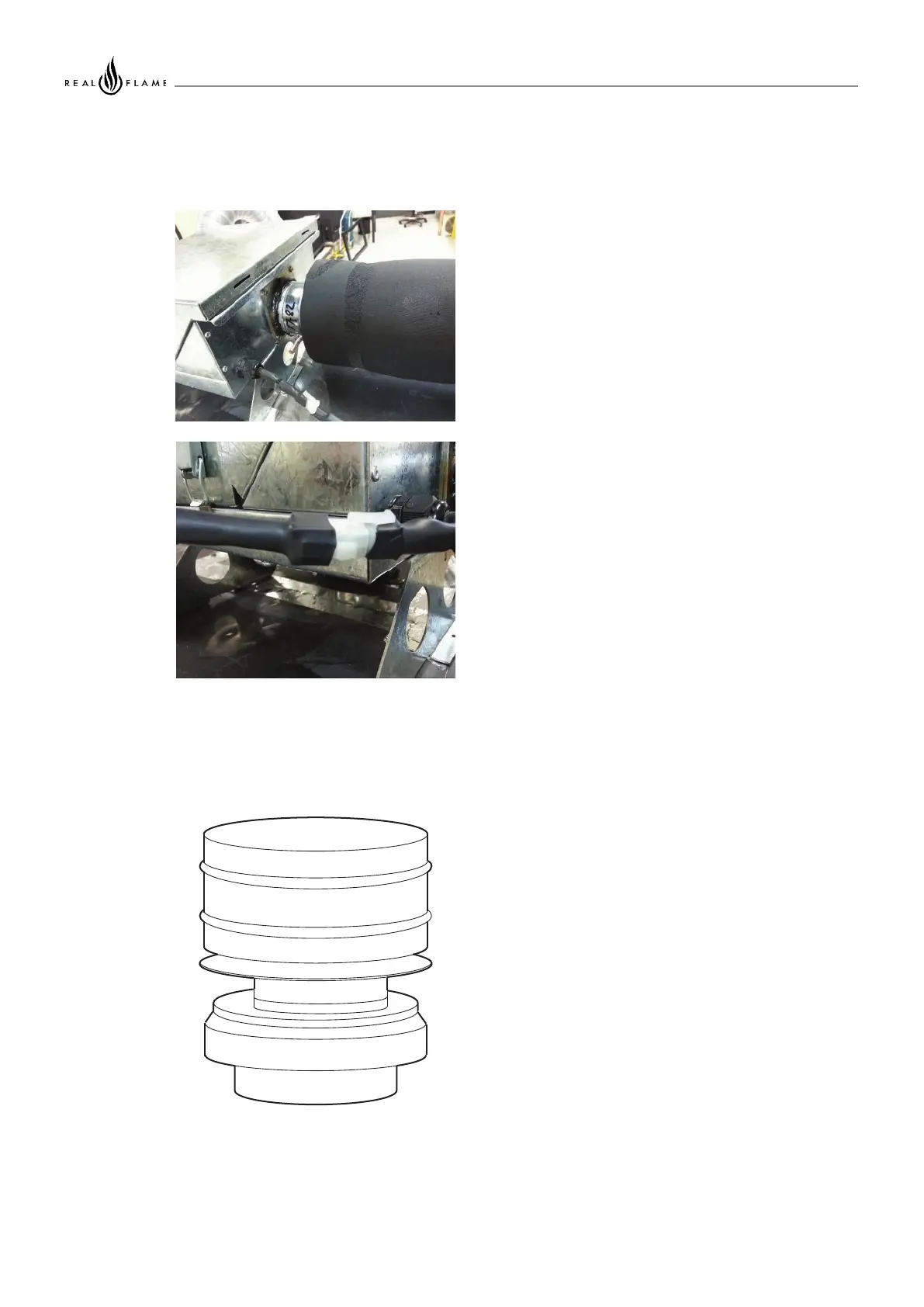

Slide flue onto connection spigot fully.
Tighten clamp fully.
W
ipe excess silicon, visually check connection to
ensure connection is fully sealed.
7. Connect power lead to fan module. Ensure lead
is clipped to support where required.
Do not use connection to support lead.
8. Connection to rooftop terminal
Prepare roof penetration.
Remove cowl from termination if fitted.
