CONVERSION INSTRUCTIONS (continued)

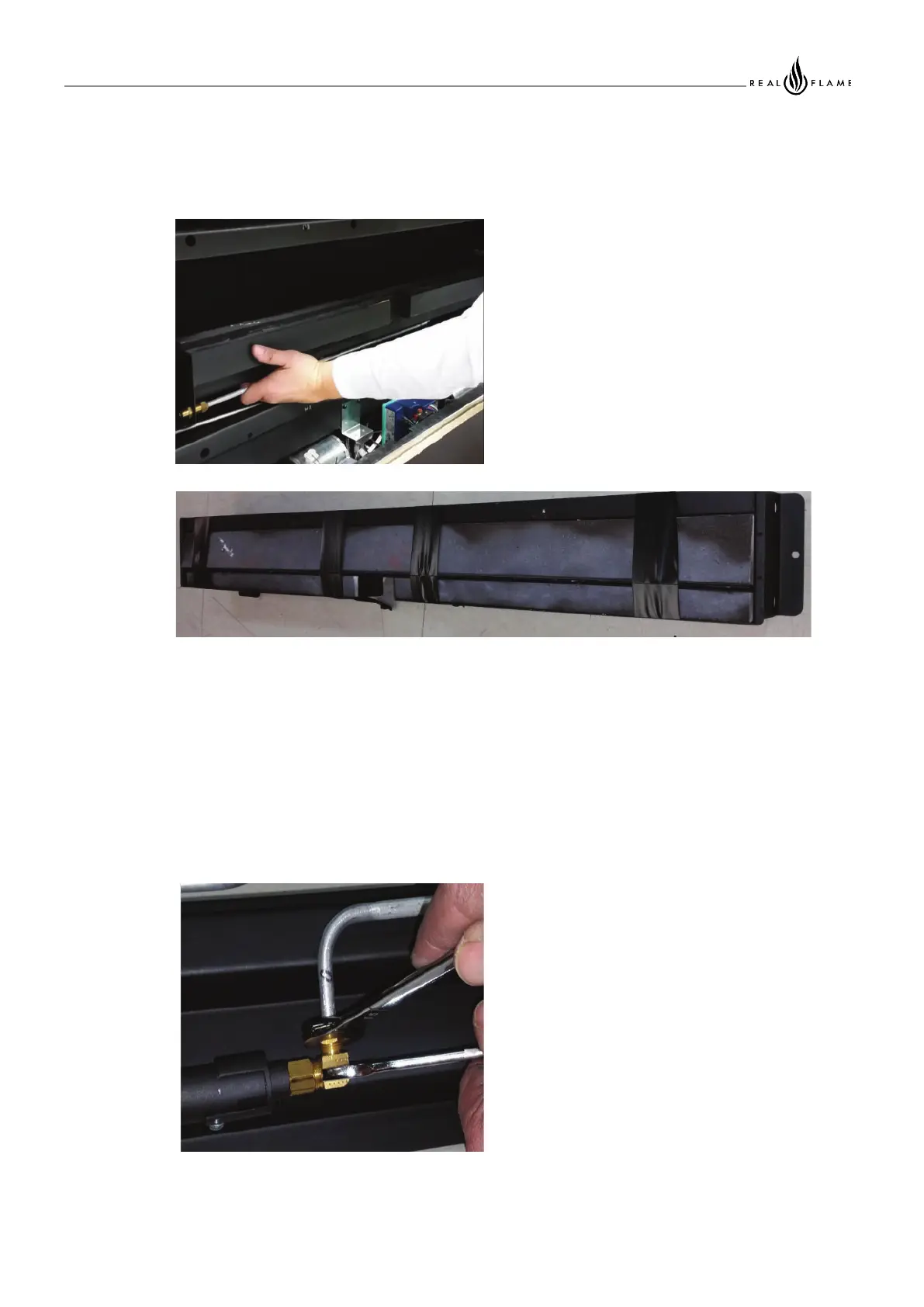

14/ Lift burner out gently. Avoid marking back wall.
K
eep burner in the flat position until insulation is
restrained (Rotating the burner may cause insulation
to fall and be damaged.
17/ Loosen gas pipe nuts form injectors and move gas
pipe away. Note – 15mm spanner required for the
nuts, a shifter or spanner should be used to support
the brass injector assembly.
15/ RECOMMENDED STEP
To avoid damage to the insulation apply low tack tape to the burner to restrain the
insulation into position. Avoid pressing the tape onto the media. The insulation media
may easily crack if the appliance have been operated for several hours.
The media may be carefully lifted out and placed flat to store until refitting.
The media can be repainted using an approved high temperature paint, contact Real
Flame for details.
16/ Turn burner over gently. AVOIDING DAMAGING THE INSULATION
