CONVERSION INSTRUCTIONS (continued)
2

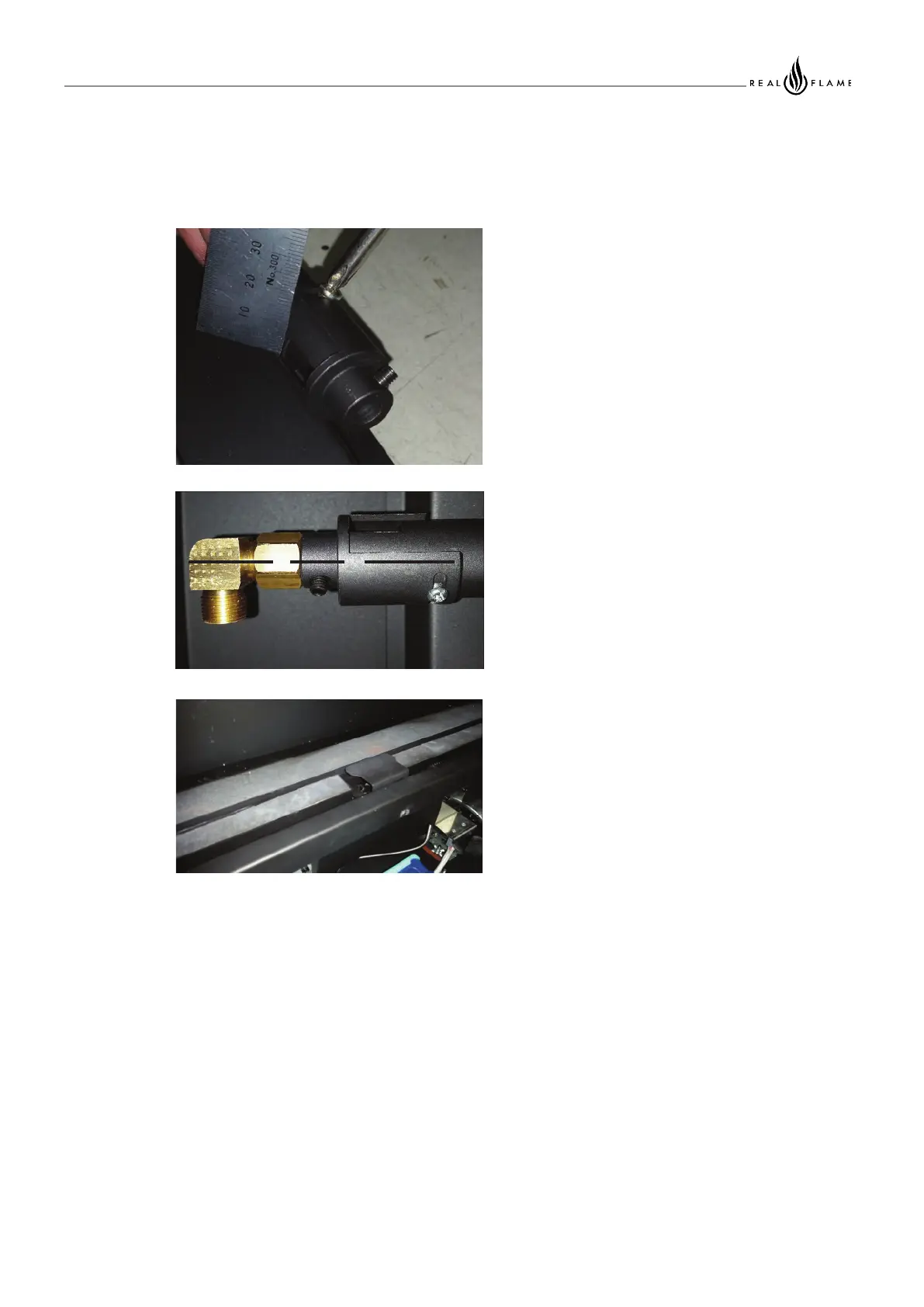

1/ Refit injector assembly into aeration cap.
22/ Refit gas pipe and tighten nuts.
23/ Ensure injector assembly is sitting firmly into
aeration cap and tighten grub screw.
NOTE – ENSURE INJECTOR ASEMBLY IS
AIMING CENTRALLY INTO THE AERATION
CAP AND TUBE
Correct where required.
24/ Rotate burner to check insulation is correctly
located.
The burner consists of two types of insulation.
In the event the lower insulation (white glass
wool blanket) has moved push firmly down and
ensure blanket fills all gaps and corners of the
burner.
25/ Sit 12mm hard insulation back into burner. Hard
insulation should sit loosely onto the top of soft
insulation approximately level with the burner.
Where required adjust the soft insulation to
ensure sitting correctly. TAKE CARE – where
the burner has been previously used the hard
insulation is easily cracked.
The insulation media can be repainted using an
approved high temperature paint, contact Real
Flame for details.
