Real Flame LANDSCAPE BALANCED - Flue and Cowl Specifications; Balanced Flue Cowl Types; Flue Bends and Dimensions; Flue Component Illustrations

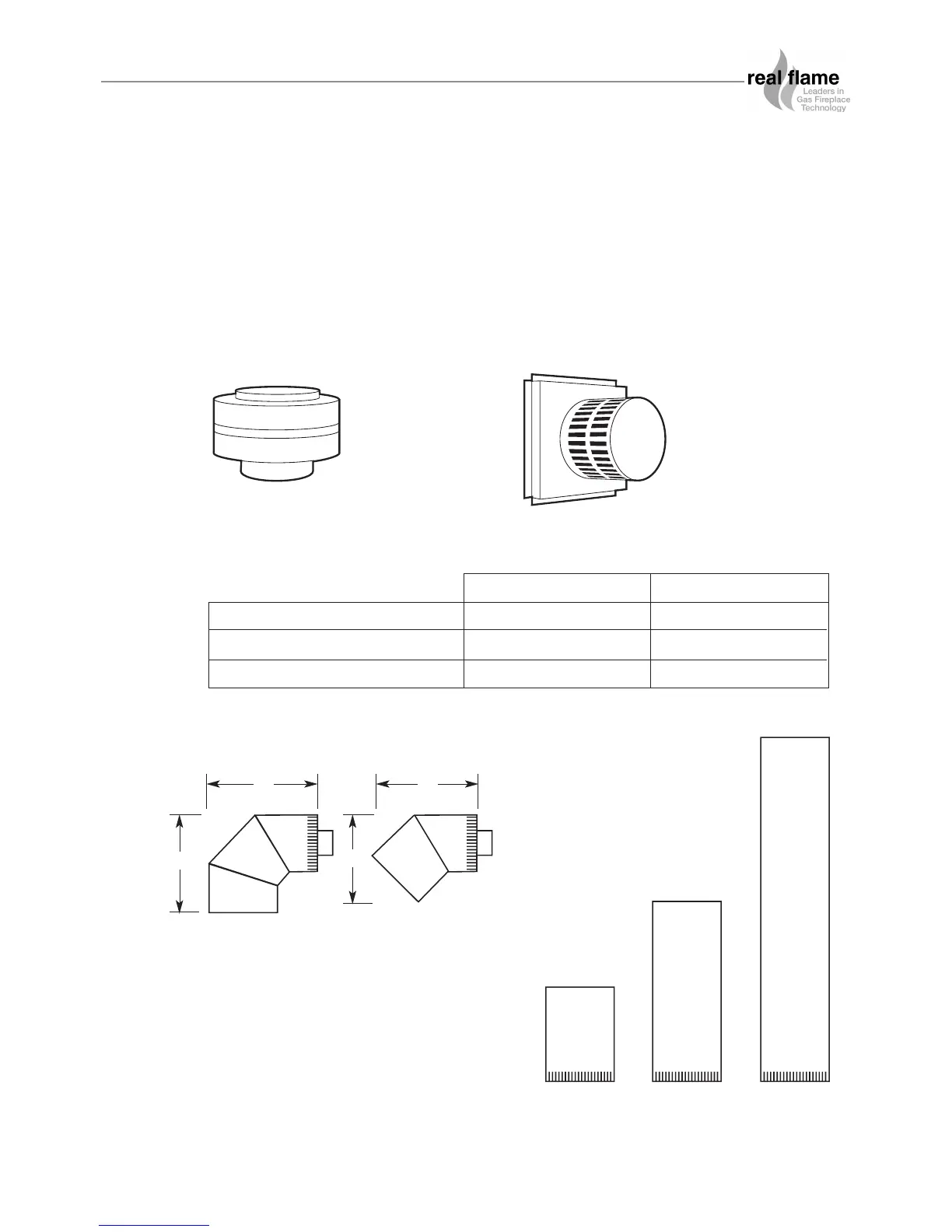

Cowl types
Flue
• The Landscape is a balanced flue space heater.
• It can be installed with the flue terminating with a horizontal or vertical cowl to suit the
application.
LANDSCAPE MODEL (continued)
Vertical top
termination
Vertical top
termination
90° Bend
45° Bend
300mm 600mm 1200mm
RF/HZ
Horizontal rear
termination
Model Inner Outer
1000 100 180
1600 150 225
AB
265 370
315 315
90° Bend
AB
260 200
270 270
45° Bend
Flue Components
A A
B
B
