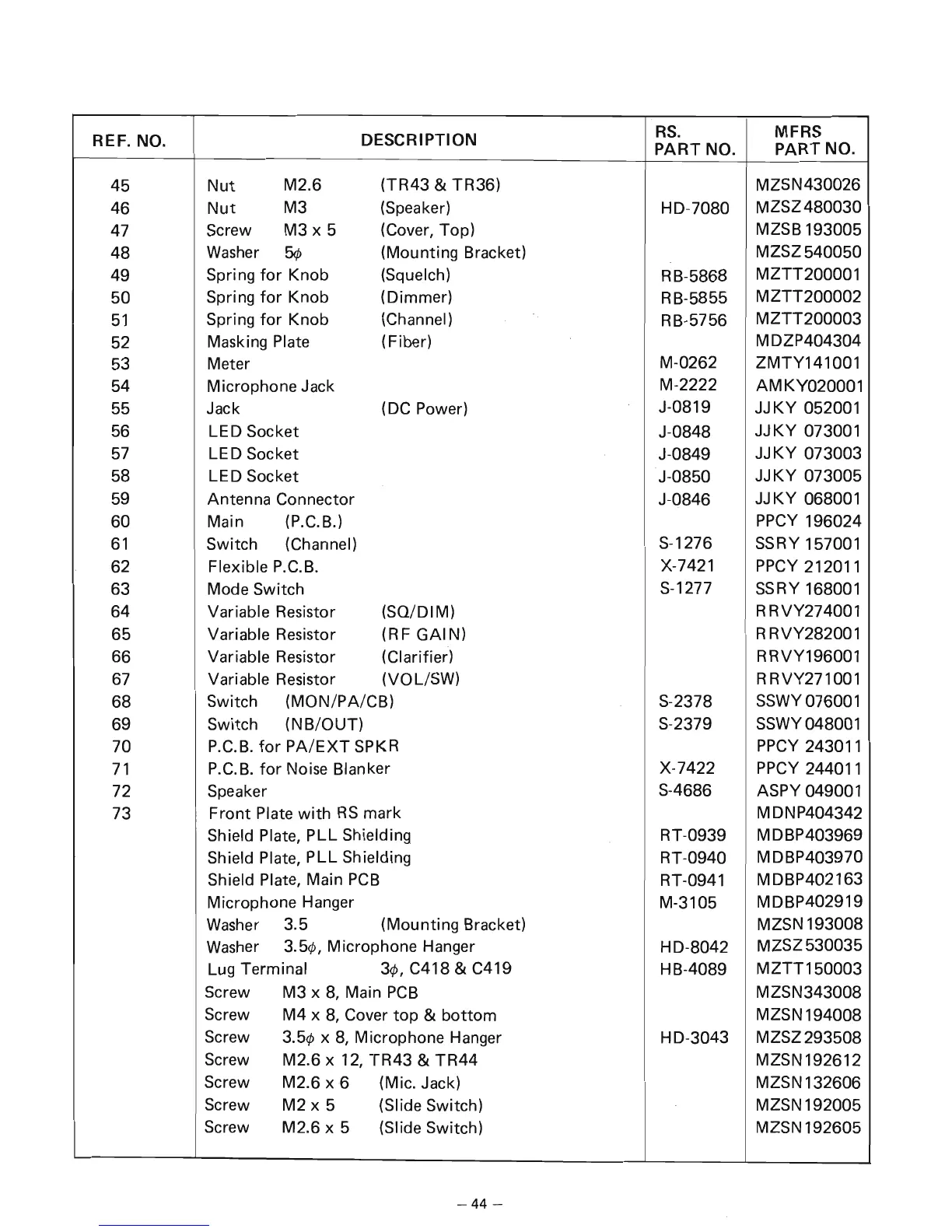

Realistic TRC-449 - Mechanical Assembly Details; Assorted Nuts and Springs; Meters, Jacks, and Connectors; Switches and Variable Resistors

REF. NO.
DESCRIPTION
RS. MFRS
PART NO. PART NO.
45
Nut M2.6
(TR43
& TR36)
MZSN430026
46
Nut M3 (Speaker)
HD-7080
MZSZ480030
47 Screw M3x 5
(Cover, Top)
MZSB 193005
48
Washer
5¢
(Mounting Bracket)
MZSZ540050
49
Spri
ng for Knob
(Squelch)
RB-5868
MZTT200001
50
Spri
ng for Knob
(Dimmer)
RB-5855
MZTT200002
51
Spring for Knob
(Channel)
RB-5756
MZTT200003
52
Masking Plate
( Fiber)
MDZP404304
53
Meter
M-0262
ZMTY141001
54
Microphone Jack
M-2222
AM KY020001
55
Jack (DC Power)
J-0819
JJKY 052001
56
LED Socket
J-0848
JJKY 073001
57 LED Socket
J-0849
JJKY 073003
58 LED Socket
J-0850
JJKY 073005
59 Antenna Connector
J-0846
JJKY 068001
60
Main
(P.C.B.)
PPCY 196024
61
Switch
(Channel)
S-1276
SSRY 157001
62 Flexible P.C.B.
X-7421
PPCY 212011
63 Mode Switch
S-1277
SSRY 168001
64 Variable Resistor
(SO/DIM)
RRVY274001
65
Variable Resistor
(RF
GAIN)
RRVY282001
66
Variable Resistor ( Clarifier)
RRVY196001
67 Variable Resistor (VOL/SW)
RRVY271001
68
Switch (MON/PA/CB)
S-2378
SSWY076001
69
Switch
(NB/OUT)
S-2379 SSWY048001
70 P.C.B.
for PA/EXT SPKR
PPCY 243011
71
P.C. B. for Noise Blanker
X-7422
PPCY 244011
72
Speaker S-4686
ASPY 049001
73
Front Plate with RS mark
MDNP404342
Shield Plate,
PLL Shielding
RT-0939 MDBP403969
Shield Plate,
PLL Shielding
RT-0940
MDBP403970
Shield
Plate, Main
PCB
RT-0941
MDBP402163
Microphone Hanger
M-3105
MDBP402919
Washer 3.5 (Mounting Bracket)
MZSN 193008
Washer
3.5¢, Microphone Hanger
HD-8042
MZSZ530035
Lug Terminal
3<t>, C4 18 & C419
HB-4089
MZTT150003
Screw
M3 x
8, Main PCB
MZSN343008
Screw
M4 x 8, Cover top & bottom
MZSN194008
Screw
3.5¢ x
8, Microphone Hanger
HD-3043
MZSZ293508
Screw
M2.6 x 12,
TR43 & TR44
MZSN192612
Screw
M2.6 x -6 (Mic. Jack)
MZSN132606
Screw
M2 x 5 (Slide Switch)
MZSN192005
Screw
M2.6 x 5 (Slide Switch)
MZSN192605
